EN 1092-1 Type 13 Flange

Description

Product Description EN 1092-1 Type 13

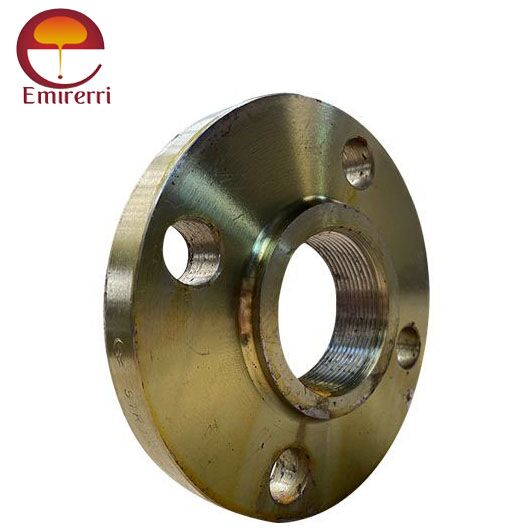

EN 1092-1 Type 13 refers to a specific type of threaded flange used in piping systems. These flanges are typically used in industrial applications, especially for connecting pipes to equipment. They adhere to the European Standard EN 1092-1, which specifies requirements for flanges and their associated components. Type 13 Refers to a flange design that typically features a flat face with no raised area. It is commonly used where the connection surface needs to be flat and uniform to allow a reliable seal. EN 1092-1 Type 13 flanges are designed with bolt holes that align with the bolts for easy installation, ensuring a secure and leak-proof connection.

EN 1092-1 Type 13 Threaded Flange Dimensions

Class 150 Threaded Flange Dimensions

Nominal	Outside Dia	Thick of	Dia of	Dia of	Length	Min Thread	Min Counter	No of	Dia of	Dia of	Dia of	Approx
Pipe Size	of Flange	Flange	Raised Face	Hub at Base	thru Hub	Length	Bore	Holes	Holes	Bolts	Bolt Circle	Weight
	(D)	(B)	(G)	(A)	(H)	(T)	(Q)		(L)	(inch)	(K)	(kg)
1/2	88.9	11.2	35.1	30.2	15.7	15.7		4	15.7	1/2	60.5	0.5
3/4	98.6	12.7	42.9	38.1	15.7	15.7		4	15.7	1/2	69.9	1
1	108	14.2	50.8	49.3	17.5	17.5		4	15.7	1/2	79.2	1
1-1/4	117.3	15.7	63.5	58.7	20.6	20.6		4	15.7	1/2	88.9	1
1-1/2	127	17.5	73.2	65	22.4	22.4		4	15.7	1/2	98.6	1
2	152.4	19.1	91.9	77.7	25.4	25.4		4	19.1	5/8	120.7	2
2-1/2	177.8	22.4	104.6	90.4	28.4	28.4		4	19.1	5/8	139.7	3
3	190.5	23.9	127	108	30.2	30.2		4	19.1	5/8	152.4	4
3-1/2	215.9	23.9	139.7	122.2	31.8	31.8		8	19.1	5/8	177.8	5
4	228.6	23.9	157.2	134.9	33.3	33.3		8	19.1	5/8	190.5	6
5	254	23.9	185.7	163.6	36.6	36.6		8	22.4	3/4	215.9	7
6	279.4	25.4	215.9	192	39.6	39.6		8	22.4	3/4	241.3	9
8	342.9	28.4	269.7	246.1	44.5	44.5		8	22.4	3/4	298.5	14
10	406.4	30.2	323.9	304.8	49.3	49.3		12	25.4	7/8	362	20
12	482.6	31.8	381	365.3	55.6	55.6		12	25.4	7/8	431.8	29
14	533.4	35.1	412.8	400.1	57.2	57.2		12	28.4	1	476.3	41
16	596.9	36.6	469.9	457.2	63.5	63.5		16	28.4	1	539.8	44
18	635	39.6	533.4	505	68.3	68.3		16	31.8	1-1/8	577.9	59
20	698.5	42.9	584.2	558.8	73.2	73.2		20	31.8	1-1/8	635	75
24	812.8	47.8	692.2	663.4	82.6	82.6		20	35.1	1-1/4	749.3	100

Class 300 Threaded Flange Dimensions

Nominal	Outside Dia	Thick of	Dia of	Dia of	Length	Min Thread	Min Counter	No of	Dia of	Dia of	Dia of	Approx
Pipe Size	of Flange	Flange	Raised Face	Hub at Base	thru Hub	Length	Bore	Holes	Holes	Bolts	Bolt Circle	Weight
	(D)	(B)	(G)	(A)	(H)	(T)	(Q)		(L)	(inch)	(K)	(kg)
1/2	95.3	14.2	35.1	38.1	22.4	15.7	23.6	4	15.7	1/2	66.5	1
3/4	117.3	15.7	42.9	47.8	25.4	15.7	29	4	19.1	5/8	82.6	1
1	124	17.5	50.8	53.8	26.9	17.5	35.8	4	19.1	5/8	88.9	1
1-1/4	133.4	19.1	63.5	63.5	26.9	20.6	44.5	4	19.1	5/8	98.6	2
1-1/2	155.4	20.6	73.2	69.9	30.2	22.4	50.5	4	22.4	3/4	114.3	3
2	165.1	22.4	91.9	84.1	33.3	28.4	63.5	8	19.1	5/8	127	3
2-1/2	190.5	25.4	104.6	100.1	38.1	31.8	76.2	8	22.4	3/4	149.4	5
3	209.6	28.4	127	117.3	42.9	31.8	92.2	8	22.4	3/4	168.1	6
3-1/2	228.6	30.2	139.7	133.4	44.5	36.6	104.9	8	22.4	3/4	184.2	8
4	254	31.8	157.2	146.1	47.8	36.6	117.6	8	22.4	3/4	200.2	10
5	279.4	35.1	185.7	177.8	50.8	42.9	144.5	8	22.4	3/4	235	13
6	317.5	36.6	215.9	206.2	52.3	46	171.5	12	22.4	3/4	269.7	18
8	381	41.1	269.7	260.4	62	50.8	222.3	12	25.4	7/8	330.2	26
10	444.5	47.8	323.9	320.5	66.5	55.6	276.4	16	28.4	1	387.4	37
12	520.7	50.8	381	374.7	73.2	60.5	328.7	16	31.8	1-1/8	450.9	52
14	584.2	53.8	412.8	425.5	76.2	63.5	360.4	20	31.8	1-1/8	514.4	75
16	647.7	57.2	469.9	482.6	82.6	68.3	411.2	20	35.1	1-1/4	571.5	86
18	711.2	60.5	533.4	533.4	88.9	69.9	462	24	35.1	1-1/4	628.7	113
20	774.7	63.5	584.2	587.2	95.3	73.2	512.8	24	35.1	1-1/4	685.8	143
24	914.4	69.9	692.2	701.5	106.4	82.6	614.4	24	41.1	1-1/2	812.8	215

Class 600 Threaded Flange Dimensions

Nominal	Outside Dia	Thick of	Dia of	Dia of	Length	Min Thread	Min Counter	No of	Dia of	Dia of	Dia of	Approx
Pipe Size	of Flange	Flange	Raised Face	Hub at Base	thru Hub	Length	Bore	Holes	Holes	Bolts	Bolt Circle	Weight
	(D)	(B)	(G)	(A)	(H)	(T)	(Q)		(L)	(inch)	(K)	(kg)
1/2	95.3	14.2	35.1	38.1	22.4	15.7	23.6	4	15.7	1/2	66.5	1
3/4	117.3	15.7	42.9	47.8	25.4	15.7	29	4	19.1	5/8	82.6	1
1	124	17.5	50.8	53.8	26.9	17.5	35.8	4	19.1	5/8	88.9	2
1-1/4	133.4	20.6	63.5	63.5	28.4	20.6	44.5	4	19.1	5/8	98.6	2
1-1/2	155.4	22.4	73.2	69.9	31.8	22.4	50.5	4	22.4	3/4	114.3	3
2	165.1	25.4	91.9	84.1	36.6	28.4	63.5	8	19.1	5/8	127	4
2-1/2	190.5	28.4	104.6	100.1	41.1	31.8	76.2	8	22.4	3/4	149.4	6
3	209.6	31.8	127	117.3	46	35.1	92.2	8	22.4	3/4	168.1	7
3-1/2	228.6	35.1	139.7	133.4	49.3	39.6	104.9	8	25.4	7/8	184.2	10
4	273.1	38.1	157.2	152.4	53.8	41.1	117.6	8	25.4	7/8	215.9	17
5	330.2	44.5	185.7	189	60.5	47.8	144.5	8	28.4	1	266.7	29
6	355.6	47.8	215.9	222.3	66.5	50.8	171.5	12	28.4	1	292.1	36
8	419.1	55.6	269.7	273.1	76.2	57.2	222.3	12	31.8	1-1/8	349.3	52
10	508	63.5	323.9	342.9	85.9	65	276.4	16	35.1	1-1/4	431.8	77
12	558.8	66.5	381	400.1	91.9	69.9	328.7	20	35.1	1-1/4	489	91
14	603.3	69.9	412.8	431.8	93.7	2.9	360.4	20	38.1	1-3/8	527.1	104
16	685.8	76.2	469.9	495.3	106.4	77.7	411.2	20	41.1	1-1/2	603.3	150
18	743	82.6	533.4	546.1	117.3	79.2	462	20	44.5	1-5/8	654.1	181
20	812.8	88.9	584.2	609.6	127	82.6	512.8	24	44.5	1-5/8	723.9	231
24	939.8	101.6	692.2	717.6	139.7	91.9	614.4	24	50.8	1-7/8	838.2	331

Class 900 Threaded Flange Dimensions

Nominal	Outside Dia	Thick of	Dia of	Dia of	Length	Min Thread	Min Counter	No of	Dia of	Dia of	Dia of	Approx
Pipe Size	of Flange	Flange	Raised Face	Hub at Base	thru Hub	Length	Bore	Holes	Holes	Bolts	Bolt Circle	Weight
	(D)	(B)	(G)	(A)	(H)	(T)	(Q)		(L)	(inch)	(K)	(kg)
1/2	120.7	22.4	35.1	38.1	31.8	22.4	23.6	4	22.4	3/4	82.6	2
3/4	130	25.4	42.9	44.5	35.1	25.4	29	4	22.4	3/4	88.9	2
1	149.4	28.4	50.8	52.3	41.1	28.4	35.8	4	25.4	7/8	101.6	4
1-1/4	158.8	28.4	63.5	63.5	41.1	30.2	44.5	4	25.4	7/8	111.3	4
1-1/2	177.8	31.8	73.2	69.9	44.5	31.8	50.5	4	28.4	1	124	5
2	215.9	38.1	91.9	104.6	57.2	38.1	63.5	8	25.4	7/8	165.1	11
2-1/2	244.3	41.1	104.6	124	63.5	47.8	76.2	8	28.4	1	190.5	16
3	241.3	38.1	127	127	53.8	41.1	92.2	8	25.4	7/8	190.5	12
4	292.1	44.5	157.2	158.8	69.9	47.8	117.6	8	31.8	1-1/8	235	24
5	349.3	50.8	185.7	190.5	79.2	53.8	144.5	8	35.1	1-1/4	279.4	38
6	381	55.6	215.9	235	85.9	57.2	171.5	12	31.8	1-1/8	317.5	50
8	469.9	63.5	269.7	298.5	101.6	63.5	222.3	12	38.1	1-3/8	393.7	77
10	546.1	69.9	323.9	368.3	108	71.4	276.4	16	38.1	1-3/8	469.9	111
12	609.6	79.2	381	419.1	117.3	76.2	328.7	20	38.1	1-3/8	533.4	147
14	641.4	85.9	412.8	450.9	130	82.6	360.4	20	41.1	1-1/2	558.8	181
16	704.9	88.9	469.9	508	133.4	85.9	411.2	20	44.5	1-5/8	616	193
18	787.4	101.6	533.4	565.2	152.4	88.9	462	20	50.8	1-7/8	685.8	272
20	857.3	108	584.2	622.3	158.8	91.9	512.8	20	53.8	2	749.3	331
24	1041.4	139.7	692.2	749.3	203.2	101.6	614.4	20	66.5	2-1/2	901.7	635

Class 1500 Threaded Flange Dimensions

Nominal	Outside Dia	Thick of	Dia of	Dia of	Length	Min Thread	Min Counter	No of	Dia of	Dia of	Dia of	Approx
Pipe Size	of Flange	Flange	Raised Face	Hub at Base	thru Hub	Length	Bore	Holes	Holes	Bolts	Bolt Circle	Weight
	(D)	(B)	(G)	(A)	(H)	(T)	(Q)		(L)	(inch)	(K)	(kg)
1/2	120.7	22.4	35.1	38.1	31.8	22.4	23.6	4	22.4	3/4	82.6	2
3/4	130	25.4	42.9	44.5	35.1	25.4	29	4	22.4	3/4	88.9	2
1	149.4	28.4	50.8	52.3	41.1	28.4	35.8	4	25.4	7/8	101.6	4
1-1/4	158.8	28.4	63.5	63.5	41.1	30.2	44.5	4	25.4	7/8	111.3	4
1-1/2	177.8	31.8	73.2	69.9	44.5	31.8	50.5	4	28.4	1	124	5
2	215.9	38.1	91.9	104.6	57.2	38.1	63.5	8	25.4	7/8	165.1	11
2-1/2	244.3	41.1	104.6	124	63.5	47.8	76.2	8	28.4	1	190.5	16

Class 2500 Threaded Flange Dimensions

Nominal	Outside Dia	Thick of	Dia of	Dia of	Length	Min Thread	Min Counter	No of	Dia of	Dia of	Dia of	Approx
Pipe Size	of Flange	Flange	Raised Face	Hub at Base	thru Hub	Length	Bore	Holes	Holes	Bolts	Bolt Circle	Weight
	(D)	(B)	(G)	(A)	(H)	(T)	(Q)		(L)	(inch)	(K)	(kg)
1/2	133.4	30.2	35.1	42.9	39.6	28.4	23.6	4	22.4	3/4	88.9	3
3/4	139.7	31.8	42.9	50.8	42.9	31.8	29	4	22.4	3/4	95.3	4
1	158.8	35.1	50.8	57.2	47.8	35.1	35.8	4	25.4	7/8	108	5
1-1/4	184.2	38.1	63.5	73.2	52.3	38.1	44.5	4	28.4	1	130	7
1-1/2	203.2	44.5	73.2	79.2	60.5	44.5	50.5	4	31.8	1-1/8	146.1	10
2	235	50.8	91.9	95.3	69.9	50.8	63.5	8	28.4	1	171.5	17
2-1/2	266.7	57.2	104.6	114.3	79.2	57.2	76.2	8	31.8	1-1/8	196.9	25

Threaded Flange Weight Chart

Flange Size (inches)	Class 150 (lbs)	Class 300 (lbs)	Class 400 (lbs)	Class 600 (lbs)	Class 900 (lbs)	Class 1500 (lbs)	Class 2500 (lbs)
½	1	2	2	2	6	6	7
¾	2	3	3	3	6	6	9
1	2	3	3.5	4	7.5	8	12
1¼	3	4.5	4.5	5	10	10	18
1½	3	6.5	6.5	7	14	14	25
2	5	7	8	9	22	25	38
2½	8	10	12	13	31	36	55
3	9	14	15	16	36	48	83
3½	12	17	21	21	53	73	127
4	13	24	26	37	83	132	210
5	15	31	31	63	110	165	323
6	19	39	44	80	172	260	485
8	30	58	67	115	245	436	925
10	43	81	91	177	326	667	1300
12	64	115	130	215	400	940
14	90	165	191	259	459	1250
16	98	220	253	366	647	1625
18	130	280	310	476	792	2050
20	165	325	378	612	1480	2825
22	185	370	405	590
24	220	490	539	876

Material

• Carbon Steel (e.g., ASTM A105)
• Alloy Steel (e.g., ASTM A182)
• Stainless Steel (e.g., ASTM A312, A351)
• Duplex Stainless Steel (e.g., 2205)
• Nickel Alloys (e.g., Inconel, Monel)
• Copper Alloys and others.

Application

• Pipelines and Piping Systems: Ideal for systems where a temporary or easily disassembled connection is required.
• Water Treatment Plants: Due to their ease of installation and disassembly.
• Chemical Processing: In systems where corrosion resistance is important.
• Petrochemical: For systems requiring high pressure handling.
• HVAC: Threaded flanges are commonly used in air and gas piping systems.
