Flattened Expanded Metal

Description

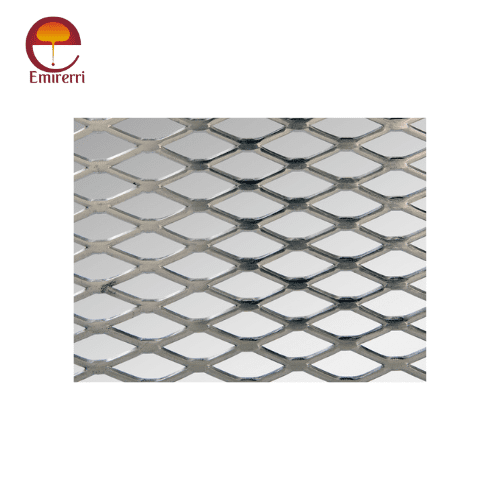

Flattened Expanded Metal

Emirerri Steel is a trusted name in manufacturing and supplying Flattened Expanded Metal, a high-performance material suitable for a variety of industrial, architectural, and security applications. With its smooth surface and superior strength, Flattened Expanded Metal is the ideal choice for projects that demand both functionality and aesthetics.

Flattened Expanded Metal is produced by taking standard expanded metal and passing it through a cold rolling mill to flatten the strands and bonds, resulting in a smooth, even surface. This process enhances the material’s appearance, makes it easier to handle, and provides a uniform thickness. Flattened Expanded Metal is highly versatile and suitable for a wide range of applications, including fencing, security screens, grating, walkways, platforms, architectural facades, machine guards, and decorative panels.

Key Features of Flattened Expanded Metal

1. Smooth Finish: Achieved through cold-rolling, ensuring safety and an aesthetically pleasing appearance.
2. Durable and Lightweight: Combines robust structural integrity with reduced weight for easy installation and handling.
3. Corrosion Resistance: Suitable for harsh environments when treated with protective finishes.
4. Cost-Effective: High strength-to-weight ratio reduces material costs without sacrificing performance.
5. Customizable: Tailored mesh sizes, gauges, and finishes to suit specific applications.
6. Eco-Friendly: Made from recyclable materials, supporting sustainable practices.

Flattened Expanded Metal Sizes

Flattened Expanded Metal is available in a wide range of sizes to cater to the varied requirements of different industries:

Specifications for Patterns

Pattern Type	Strand Width	Strand Length	Open Area	Typical Applications
Diamond	0.5 mm - 8.0 mm	Custom lengths	30% - 80%	Fencing, security screens, grating, walkways, platforms
Hexagonal	0.5 mm - 8.0 mm	Custom lengths	50% - 90%	Architectural facades, decorative panels
Square	0.5 mm - 8.0 mm	Custom lengths	40% - 85%	Industrial flooring, machine guards
Round	0.5 mm - 8.0 mm	Custom lengths	30% - 70%	Decorative panels, ventilation covers, architectural elements
Micro Expanded	0.3 mm - 2.0 mm	Custom lengths	10% - 50%	Filters, screens, fine mesh applications

Flattened Carbon Steel Expanded Metal Sheet

Style	Lbs. Per 100 sq. ft.	Design Sizes (Inches)		Opening Size (Inches)		Approx. Strand Size (Inches)		Overall Thickness (Inches)	Approx. No. Diamonds Per Ft.		Open Area %
		SWD	LWD	SWO	LWO	Thickness	Width		SWD	LWD
1/4" x #20F	82	.25	1.05	.110	.715	.030	.079	.030	48	11.6	35
1/4" x #18F	108	.25	1.05	.118	.715	.040	.080	.040	48	11.6	35
1/2" x #20F	40	.50	1.25	.375	1.00	.029	.079	.029	24	9.5	65
1/2" x #18F	66	.50	1.25	.312	1.00	.039	.097	.039	24	9.5	63
1/2" x #16F	82	.50	1.25	.312	1.00	.050	.096	.050	24	9.5	63
1/2" x #13F	140	.50	1.25	.265	1.00	.078	.107	.078	24	9.5	52
3/4" x #16F	54	.923	2.00	.813	1.75	.060	.101	.210	13	6	78
3/4" x #13F	80	.923	2.00	.750	1.688	.090	.096	.205	113	6	76
3/4" x #10F	120	.923	2.00	.750	1.625	.090	.144	.290	13	6	72
3/4" x #9F	180	.923	2.00	.688	1.562	.134	.150	.32	13	6	68
1" x #16F	41	1.00	2.50	.813	2.250	.050	.098	.050	12	4.68	78
1-1/2" x #16F	40	1.33	3.00	1.25	2.625	.060	.108	.230	9	4	85
1-1/2" x #13F	60	1.33	3.00	1.188	2.500	.090	.105	.242	9	4	85
1-1/2" x #10F	79	1.33	3.00	1.188	2.500	.090	.138	.284	9	4	80
1-1/2" x #9F	120	1.33	3.00	1.125	2.375	.134	.144	.312	9	4	76
1-1/2" x #6F	250	1.33	3.00	1.110	2.375	.94	.203	.433	9	4	69

Flattened Stainless Expanded Metal Sheet

Style	Lbs. Per 100 sq. ft.	Design Sizes (Inches)		Opening Size (Inches)		Approx. Strand Size (Inches)		Overall Thickness (Inches)	Approx. No. Diamonds Per Ft.		Open Area %
		SWD	LWD	SWO	LWO	Thickness	Width		SWD	LWD
1/2" x #18F	69	.50	1.25	.31	1.00	.40	.093	.040	24	10	68
1/2" x #16F	86	.50	1.25	.31	1.00	.050	.093	.040	24	10	60
1/2" x #13F	178	.50	1.25	.25	1.00	.080	.132	.080	24	10	56
3/4" x #18Fv	46	.92	2.10	.75	1.81	.040	.118	.040	13	6	77
3/4" x #16F	57	.92	2.10	.75	1.81	.050	.118	.050	13	6	75
3/4" x #13F	87	.92	2.10	.63	1.75	.070	.120	.070	13	6	74
3/4" x #9F	195	.92	2.10	.56	1.69	.119	.160	.119	13	6	64
1-1/2" x #16F	43	1.33	3.20	1.06	2.75	.050	.124	.050	9	4	83
1-1/2" x #13F	65	1.33	1.00	2.63	.079	.079	.124	.079	9	4	79
1-1/2" x #9F	131	1.33	3.20	0.94	2.63	.119	.165	.199	9	4	76

Flattened Galvanized Expanded Metal

Style	Lbs. Per 100 sq. ft.	Design Sizes (Inches)		Opening Size (Inches)		Approx. Strand Size (Inches)		Overall Thickness (Inches)	Approx. No. Diamonds Per Ft.		Open Area %
		SWD	LWD	SWO	LWO	Thickness	Width		SWD	LWD
1/4" x #20F	82	.25	1.05	.110	.715	.030	.079	.030	48	11.6	35
1/4" x #18F	108	.25	1.05	.118	.715	.040	.080	.040	48	11.6	35
1/2" x #20F	40	.50	1.25	.375	1.00	.029	.079	.029	24	9.5	65
1/2" x #18F	66	.50	1.25	.312	1.00	.039	.097	.039	24	9.5	60
1/2" x #16F	82	.50	1.25	.312	1.00	.050	.096	.050	24	9.5	63
1/2" x #13F	140	.50	1.25	.265	1.00	.078	.107	.078	24	9.5	52
3/4" x #16F	54	.923	2.00	.813	1.75	.060	.101	.210	13	6	78
3/4" x #13F	80	.923	2.00	.750	1.688	.090	.096	.205	13	6	76
3/4" x #10F	120	.923	2.00	.750	1.625	.090	.144	.290	13	6	722
3/4" x #9F	180	.9223	2.00	.688	1.562	.134	.150	.312	13	6	68
1" x #16F	41	1.00	2.50	.813	2.250	.050	.098	.050	112	4.68	78
1-1/2" x #16F	40	1.33	3.00	1.25	2.625	.060	.108	.230	9	4	85
1-1/2" x #13F	60	1.33	3.00	1.188	2.500	.090	.105	.242	9	4	85
1-1/2" x #10F	79	1.33	3.00	1.188	2.500	.090	.138	.284	9	4	80
1-1/2" x #9F	120	1.33	3.00	1.125	2.375	.134	.144	.312	9	4	76
1-1/2" x #6F	250	1.33	3.00	1.110	2.375	.194	.203	.433	9	4	69

Flattened Aluminum Expanded Metal Sheet

Style	Lbs. Per 100 sq. ft.	Design Sizes (Inches)		Opening Size (Inches)		Approx. Strand Size (Inches)		Overall Thickness (Inches)	Approx. No. Diamonds Per Ft.		Open Area %
		SWD	LWD	SWO	LWO	Thickness	Width		SWD	LWD
1/2" x .051F	26	50	1.27	.312	1.00	.040	.104	.040	24	9.5	61
1/2" x .081F	42	.50	1.27	.312	1.00	.060	.105	.060	24	9.5	58
3/4" x .051F	16	.92	2.125	.75	1.812	.040	.122	.040	13	6	72
3/4" x .081LF	30	.92	2.125	.687	1.75	.070	.143	.070	13	6	70
3/4" x .081HF	39	.92	2.125	.687	1.75	.070	.181	.070	13	6	63
3/4" x .125F	62	.92	2.125	.625	1.75	.095	.187	.095	13	6	62
1-1/2" x .081F	21	1.33	3.15	1.06	2.75	.060	.143	.060	9	4	77
1-1/2" x .125F	41	1.33	3.15	1.00	2.75	.080	.181	.080	9	4	70

Hole Patterns:

• Diamond Pattern
• Hexagonal Pattern
• Square Pattern
• Round Pattern
• Micro Expanded Pattern

Applications of Flattened Expanded Metal

1. Industrial Applications:
   • Machine guards, platforms, stair treads, and protective covers.
2. Architectural Uses:
   • Building facades, sunshades, privacy screens, and decorative panels.
3. Construction Projects:
   • Concrete reinforcement, trench covers, and fencing.
4. Security Installations:
   • Anti-climb barriers, protective enclosures, and partitions.
5. Transportation Industry:
   • Ventilation panels, lightweight grilles, and protective screens.
6. Retail and Display:
   • Shelving units, racks, and point-of-sale displays.
