Standard Expanded Metal

Description

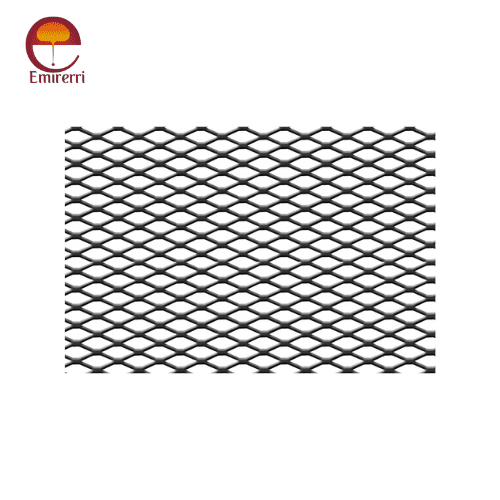

Product Description Standard Expanded Metal

At Emirerri Steel, we take pride in offering high-quality Standard Expanded Metal, a versatile and durable material ideal for a wide range of industrial, architectural, and decorative applications. Our extensive experience and commitment to excellence ensure that our products meet stringent international standards while offering customized solutions for your specific needs.

What is Standard Expanded Metal?

Standard Expanded Metal is a metal sheet that has undergone a process of slitting and stretching to create a mesh with diamond-shaped openings. Known for its strength, versatility, and lightweight properties, it is often referred to as “raised expanded metal” due to its elevated strands and bonds that form a textured surface.

Key Features of Standard Expanded Metal

1. Strength and Durability
   • Manufactured from solid sheets, this material maintains its integrity without joints or welds, ensuring high structural strength.
   • Suitable for heavy-duty applications.
2. Lightweight
   • The process of expansion reduces the overall weight of the material while maintaining its strength.
3. Versatility
   • Available in various materials like stainless steel, carbon steel, aluminum, and copper, making it adaptable for diverse applications.
4. Excellent Ventilation
   • The open design allows free flow of air, light, and heat, making it ideal for ventilation and safety applications.
5. Cost-Effective
   • The expanding process creates more material surface area from a single sheet, optimizing cost efficiency.
6. Anti-Slip Surface

Standard Expanded Metal Sizes

Expanded metal sizes include measurements for three main dimensions:

1. SWM (Short Way of Mesh): The spacing between the center points of two adjacent short diamond-shaped openings.
2. LWM (Long Way of Mesh): The distance between the centers of two long diamond-shaped openings.
3. Strand Width: The width of the solid metal left between openings, contributing to the material’s strength.

Specifications for Hole Patterns:

Pattern Type	Strand Width	Strand Length	Open Area	Typical Applications
Diamond	0.5 mm - 8.0 mm	Custom lengths	30% - 80%	Fencing, security screens, grating, walkways, platforms
Hexagonal	0.5 mm - 8.0 mm	Custom lengths	50% - 90%	Architectural facades, decorative panels
Square	0.5 mm - 8.0 mm	Custom lengths	40% - 85%	Industrial flooring, machine guards
Round	0.5 mm - 8.0 mm	Custom lengths	30% - 70%	Decorative panels, ventilation covers, architectural elements
Micro Expanded	0.3 mm - 2.0 mm	Custom lengths	10% - 50%	Filters, screens, fine mesh applications

Standard (Raised) Stainless Expanded Metal Sheet

Style	Lbs. Per 100 sq. ft.	Design Sizes (Inches)		Opening Size (Inches)		Approx. Strand Size (Inches)		Overall Thickness (Inches)	Approx. No. Diamonds Per Ft.		Open Area %
		SWD	LWD	SWO	LWO	Thickness	Width		SWD	LWD
1/2" x #18	73	.50	1.20	.43	.94	.050	.087	.164	24	10	77
1/2" x #16	91	.50	1.20	.43	.94	.062	.087	.164	24	10	70
1/2" x #13	187	.50	1.20	.31	.88	.093	.120	.225	24	10	58
3/4" x #18	48	.92	2.00	.81	1.75	.050	.106	.200	13	6	89
3/4" x #16	60	.92	2.00	.81	1.75	.062	.106	.200	13	6	85
3/4" x #13	91	.92	2.00	.75	1.69	.093	.108	.200	13	6	78
3/4" x #10	205	.92	2.00	.69	1.56	.140	.161	.300	13	6	67
1-1/2" x #16	45	1.33	3.00	1.25	2.75	.062	.115	.220	9	4	89
1-1/2" x #13	68	1.33	3.00	1.25	2.62	.093	.116	.220	9	4	86
1-1/2" x #9	137	1.33	3.00	1.13	2.50	.140	.155	.280	9	4	75

Standard (Raised) Carbon Expanded Metal Sheet

Style	Lbs. Per 100 sq. ft.	Design Sizes (Inches)		Opening Size (Inches)		Approx. Strand Size (Inches)		Overall Thickness (Inches)	Approx. No. Diamonds Per Ft.		Open Area %
		SWD	LWD	SWO	LWO	Thickness	Width		SWD	LWD
1/4 x #20	86	.25	1.0	.125	.718	.036	.072	.135	48	12	45
1/4" x #18	114	.25	1.0	.110	.718	.048	.072	.147	48	12	43
1/2" x #20	43	.50	1.20	.438	.938	.036	.072	.140	24	10	80
1/2" x #18	70	.50	1.20	.438	.938	.048	.088	.172	24	10	72
1/2" x #16	86	.50	1.20	.438	.938	.060	.087	.175	24	10	65
1/2" x #13	147	.50	1.20	.312	.938	.090	.096	.204	24	10	57
3/4" x #18	48	.92	2.00	.81	1.75	.050	.106	.200	13	6	89
3/4" x #16	54	.923	2.00	.813	1.75	.060	.101	.210	13	6	78
3/4" x #13	80	.923	2.00	.750	1.688	.090	.096	.205	13	6	76
3/4" x #10	120	.923	2.00	.750	1.625	.090	.144	.290	13	6	72
3/4" x #9	180	.923	2.00	.688	1.562	.134	.150	.312	13	6	68
1-1/2" x #16	40	1.33	3.00	1.25	2.625	.060	.108	.230	9	4	85
1-1/2" x #13	60	1.33	3.00	1.188	2.50	.090	.105	.242	9	4	85
1-1/2" x #10	79	1.33	3.00	1.188	2.50	.090	.138	.284	9	4	80
1-1/2" x #9	120	1.33	3.00	1.125	2.375	.194	.144	.312	9	4	76
1-1/2" x #6	250	1.33	3.00	1.110	2.375	.194	.203	.433	9	4	69

Standard (Raised) Galvanized Expanded Metal Sheet

Style	Lbs. Per 100 sq. ft.	Design Sizes (Inches)		Opening Size (Inches)		Approx. Strand Size (Inches)		Overall Thickness (Inches)	Approx. No. Diamonds Per Ft.		Open Area %
		SWD	LWD	SWO	LWO	Thickness	Width		SWD	LWD
1/4 x #20	86	.25	1.0	.125	.718	.036	.072	.135	48	12	45
1/4" x #18	114	.25	1.0	.110	.718	.048	.072	.147	48	12	43
1/2" x #20	43	.50	1.20	.438	.938	.036	.072	.140	24	10	80
1/2" x #18	70	.50	1.20	.438	.938	.048	.088	.172	24	10	72
1/2" x #16	86	.50	1.20	.438	.938	.060	.087	.175	24	10	65
1/2" x #13	147	.50	1.20	.312	.938	.090	.096	.204	24	10	57
3/4" x #16	54	.923	2.00	.813	1.75	.060	.101	.210	13	6	78
3/4" x #13	80	.923	2.00	.750	1.688	.090	.096	.205	13	6	76
3/4" x #10	120	.923	2.00	.750	1.625	.090	.144	.290	13	6	72
3/4" x #9	180	.923	2.00	.688	1.562	.134	.150	.312	13	6	68
3/4" x #16	44	1.0	2.40	.938	2.06	.060	.087	.192	12	5	82
1-1/2" x #16	40	1.33	3.00	1.25	2.625	.060	.108	.230	9	4	85
1-1/2" x #13	60	1.33	3.00	1.188	2.500	.090	.105	.242	9	4	85
1-1/2" x #10	79	1.33	3.00	1.188	2.500	.090	.138	.284	9	4	80
1-1/2" x #9	120	1.33	3.00	1.125	2.375	.134	.144	.312	9	4	76
1-1/2" x #6	250	1.33	3.00	1.110	2.375	.194	.203	.433	9	4	69

Standard (Raised) Aluminum Expanded Metal Sheet

Style	Lbs. Per 100 sq. ft.	Design Sizes (Inches)		Opening Size (Inches)		Approx. Strand Size (Inches)		Overall Thickness (Inches)	Approx. No. Diamonds Per Ft.		Open Area %
		SWD	LWD	SWO	LWO	Thickness	Width		SWD	LWD
1/2" x .051F	27	.50	1.20	.375	.937	.051	.093	.158	24	10	65
1/2" x .081	44	.50	1.20	.375	.937	.081	.096	.186	24	10	60
3/4" x .051	17	.923	2.00	.812	1.75	.051	.109	.200	13	6	78
3/4" x .081L	32	.923	2.00	.750	1.68	.081	.129	.220	13	6	76
3/4" x .081H	41	.923	2.00	.750	1.68	.081	.165	.300	13	6	69
3/4" x .125	65	.923	2.00	.687	1.68	.125	.169	.305	13	6	68
1-1/2" x .081	22	1.33	3.00	1.187	2.50	.081	.128	.240	9	4	85
1-1/2" x .125	43	1.33	3.00	1.187	2.50	.125	.162	.300	9	4	79

Hole Patterns:

• Diamond (Standard) Pattern
• Hexagonal Pattern
• Square Pattern
• Round Pattern
• Micro Expanded Pattern

Applications of Standard Expanded Metal

1. Industrial Applications:

• Used in walkways, platforms, and stair treads due to its non-slip properties.
• Machine guards for safety purposes.

2. Construction:

• Reinforcement for concrete structures.
• Building facades and architectural elements.

3. Security:

• Fencing, cages, and partitions for industrial and residential use.

4. Automotive and Transportation:

• Grilles, filters, and protective coverings in vehicles.

5. Decorative Uses:

• Mesh panels for interior design and exterior aesthetics.
