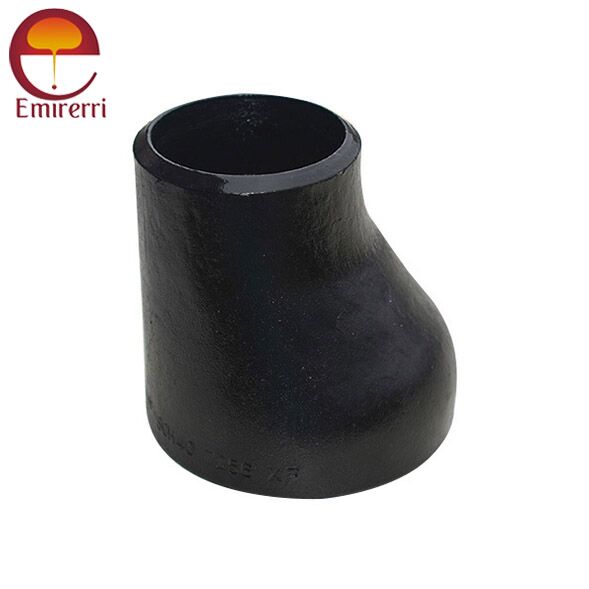

DIN2616 Reducer

Place of Origin:Bharat (India)
Brand Name:Emirerri
Model Number:Reducer
Standard:ASME B16.9, MSS-SP-43, ASME B16.25, DIN2616, GOST17378, EN10253-1, DIN10253-2, ISO3419, ISO5251
Product name:ASME B16.25
Material:Stainless Steel: 304, 316, 316L, 321
Carbon Steel: ASTM A234 WPB, ASTM A105, ASTM A420 WPL6, ASTM A106 Grade B
Pressure:200–5000 psi
Wall Thickness3mm - 40mm / 40mm / SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, XS, SCH100, SCH120, SCH140, SCH160, XXS
Outside Diameter :Seamless Pipe Tee (1/2" ~ 24"), ERW / Welded / Fabricated Pipe Tee (1/2" ~ 72")
Technics:Butt
Connection:Welding
Packing:Plywood cases\wooden Pallets
Certificate:ISO, CE
Categories: ,

Description

Product Description

DIN 2616 specifies the technical delivery conditions for steel butt-welding fittings, including reducers, for use in pressure piping systems at elevated temperatures. Here’s a concise product description for a DIN 2616 reducer:

Material: DIN 2616 reducers are typically made of carbon steel or alloy steel, chosen based on factors such as operating conditions, corrosion resistance, and mechanical properties. These materials undergo thorough testing and quality control to meet the specified chemical composition and mechanical properties.

Design: Reducers are designed to facilitate the transition between pipes of different diameters within a piping system. DIN 2616 reducers can be concentric or eccentric, depending on whether the centerlines of the inlet and outlet pipes align (concentric) or are offset (eccentric). This design ensures smooth flow transition and minimal pressure drop.

Dimensions: Available in various sizes and dimensions, DIN 2616 reducers adhere to standardized specifications for compatibility with corresponding pipe sizes and schedules. Detailed dimensions, including outside diameter, wall thickness, and length, are specified to ensure proper fit and alignment.

Butt Welding Ends: Prepared for butt welding, the ends of the reducer are beveled and machined to ensure precise alignment and secure weld joints. Butt welding provides a strong and leak-resistant connection suitable for high-pressure and high-temperature applications.

Standards Compliance: DIN 2616 reducers comply with the standards set by the Deutsches Institut für Normung (DIN), ensuring quality, performance, and safety in industrial settings. Compliance ensures adherence to rigorous manufacturing and quality control processes.

Applications: Widely used across industries such as oil and gas, petrochemicals, chemical processing, power generation, and construction, DIN 2616 reducers are essential for reducing pipe size, facilitating flow control, and connecting different sections of piping systems. They offer reliability, durability, and compatibility with DIN standards for quality and performance.

In summary, DIN 2616 reducers provide a reliable solution for joining piping systems and facilitating pipe size transitions, offering compatibility, durability, and adherence to DIN standards for quality and performance.
