JIS B2311 Tee

Description

Product Description JIS B2311 Tee

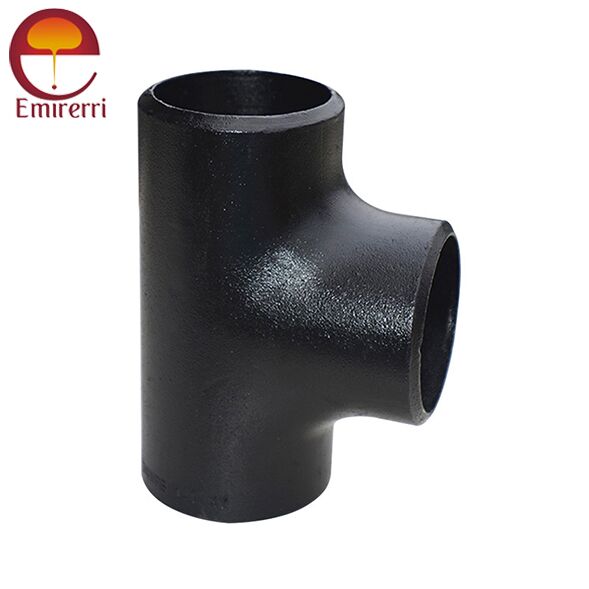

JIS B2311 Tee is a high-quality pipe fitting conforming to the Japanese Industrial Standard (JIS). It is designed to connect three sections of piping, allowing for efficient flow distribution or merging of fluids in a piping system. This tee is widely used in industries requiring reliability, durability, and precision.

JIS B2311 Tee Dimensions

JIS B2311 Straight / Equal Tee Dimensions Chart (in lbs)

NOMINAL PIPE SIZE	OUTSIDE DIAMETER	CENTER TO END	LENGTH
Inch.	OD	C	M
1/2	21.3	25	25
3/4	26.7	29	29
1	33.4	38	38
1 1/4	42.2	48	48
1 1/2	48.3	57	57
2	60.3	64	64
2 1/2	73	76	76
3	88.9	86	86
3 1/2	101.6	95	95
4	114.3	105	105
5	141.3	124	124
6	168.3	143	143
8	219.1	178	178
10	273.1	216	216
12	323.9	254	254
14	355.6	279	279
16	406.4	305	305
18	457.2	343	343
20	508	381	381
22	559	419	419
24	610	432	432
26	660	495	495
28	711	521	521
30	762	559	559
32	813	597	597
34	864	635	635
36	914	673	673
38	965	711	711
40	1016	749	749
42	1067	762	711
44	1118	813	762
46	1168	851	800
48	1219	889	838

JIS B2311 Reducing Tee Dimensions Chart (in lbs)

NOMINAL PIPE SIZE	OUTSIDE DIAMETER		CENTER TO END
Inch	D	P	C	M
1/2 x 3/8	21.3	17.1	25	25
1/2 x 1/4	21.3	13.7	25	25
3/4 x 1/2	26.7	21.3	29	29
3/4 x 3/8	26.7	17.1	29	29
1 x 3/4	33.4	26.7	38	38
1 x 1/2	33.4	21.3	38	38
1 1/4 x 1	42.2	33.4	48	48
1 1/4 x 3/4	42.2	26.7	48	48
1 1/4 x 1/2	42.2	21.3	48	48
1 1/2 x 1 1/2	48.3	42.2	57	57
1 1/2 x 1	48.3	33.4	57	57
1 1/2 x 3/4	48.3	26.7	57	57
1 1/2 x 1/2	48.3	21.3	57	57
2 x 1 1/2	60.3	48.2	64	60
2 x 1 1/4	60.3	42.2	64	57
2 x 1	60.3	33.4	64	51
2 x 3/4	60.3	26.7	64	44
2 1/2 x 2	73	60.3	76	70
2 1/2 x 1 1/2	73	48.3	76	67
2 1/2 x 1 1/4	73	42.2	76	64
2 1/2 x 1	73	33.4	76	57
3 x 2 1/2	88.9	73	86	83
3 x 2	88.9	60.3	86	76
3 x 1 1/2	88.9	48.3	86	73
3 x 1 1/4	88.9	42.2	86	70
3 1/2 x 3	101.6	88.9	95	92
3 1/2 x 21/2	101.6	73	95	89
3 1/2 x 2	101.6	60.3	95	83
3 1/2 x 1 1/2	101.6	48.3	95	79
4 x 3 1/2	114.3	101.6	105	102
4 x 3	114.3	88.9	105	98
4 x 2 1/2	114.3	73	105	95
4 x 2	114.3	60.3	105	89
4 x 1 1/2	114.3	48.3	105	86
5 x 4	141.3	114.3	124	117
5 x 3 1/2	141.3	101.6	124	114
5 x 3	141.3	88.9	124	111
5 x 2 1/2	141.3	73	124	108
5 x 2	141.3	60.3	124	105
6 x 5	168.3	141.3	143	137
6 x 4	168.3	114.3	143	130
6 x 3 1/2	168.3	101.6	143	127
6 x 3	168.3	88.9	143	124
6 x 2 1/2	168.3	73	143	121
8 x 6	219.1	168.3	178	168
8 x 5	219.1	141.3	178	162
8 x 4	219.1	114.3	178	156
8 x 3 1/2	219.1	101.6	178	152
10 x 8	273.1	219.1	216	203
10 x 6	273.1	168.1	216	194
10 x 5	273.1	141.3	216	191
10 x 4	273.1	114.3	216	184
12 x 10	323.9	273.1	254	241
12 x 8	323.9	219.1	254	229
12 x 6	323.9	168.3	254	219
12 x 5	323.9	141.3	254	216
14 x 12	355.6	323.9	279	270
14 x 10	355.6	273.1	279	257
14 x 8	355.6	219.1	279	248
14 x 6	355.6	168.3	279	238
16 x 14	406.4	355.6	305	305
16 x 12	406.4	323.9	305	295
16 x 10	406.4	273.1	305	283
16 x 8	406.4	219.1	305	273
16 x 6	406.4	168.3	305	264
18 x 16	457	406.4	343	330
18 x 14	457	355.6	343	330
18 x 12	457	323.9	343	321
18 x 10	457	273.1	343	308
18 x 8	457	219.1	343	298
20 x 18	508	457	381	368
20 x 16	508	406.4	381	356
20 x 14	508	355.6	381	356
20 x 12	508	323.9	381	346
20 x 10	508	273.1	381	333
20 x 8	508	219.1	381	324
22 x 20	559	508	419	406
22 x 18	559	457	419	394
22 x 16	559	406.4	419	381
22 x 14	559	355.6	419	381
22 x 12	559	323.9	419	371
24 x 10	559	273.1	419	359
24 x 22	610	559	432	432
24 x 20	610	508	432	432
24 x 18	610	457	432	419
24 x 16	610	406.4	432	406
24 x 14	610	355.6	432	406
24 x 12	610	323.9	432	397
24 x 10	610	273.1	432	384

JIS B2311 Tee Weight

JIS B2311 Tee Weight Chart (in lbs)

Nominal Pipe Size (NPS)	Schedule 40	Schedule 80	Schedule 160
1/2"	1.0	1.3	1.8
3/4"	1.4	1.8	2.5
1"	1.8	2.4	3.2
1 1/4"	2.3	3.0	4.0
1 1/2"	3.0	4.1	5.5
2"	4.2	6.2	8.3
2 1/2"	6.7	9.8	13.0
3"	9.4	14.1	18.7
4"	14.5	21.6	28.8
5"	19.0	28.3	37.7
6"	24.0	36.0	48.0
8"	34.0	51.0	68.0
10"	47.5	71.0	94.0
12"	60.0	90.0	120.0
14"	75.0	112.0	150.0
16"	94.0	141.0	188.0
18"	114.0	171.0	228.0
20"	134.0	201.0	268.0
24"	170.0	255.0	340.0
30"	255.0	382.5	510.0
36"	335.0	502.5	670.0
42"	420.0	630.0	840.0
48"	510.0	765.0	1020.0

JIS B2311 Reducing Tee Weight Chart (in lbs)

Run x Branch	Schedule 40 (lbs)	Schedule 80 (lbs)	Schedule 160 (lbs)
1/2" x 3/8"	0.3	0.4	0.6
3/4" x 1/2"	0.6	0.9	1.2
1" x 3/4"	0.8	1.2	1.6
1 1/4" x 1"	1.0	1.5	2.0
1 1/2" x 1"	1.2	1.8	2.5
2" x 1 1/2"	1.8	2.7	3.6
2 1/2" x 2"	2.5	3.8	5.1
3" x 2"	3.5	5.3	7.0
3" x 2 1/2"	3.8	5.7	7.6
4" x 3"	5.5	8.3	11.0
5" x 4"	7.3	10.9	14.4
6" x 4"	9.5	14.2	18.9
6" x 5"	10.1	15.1	20.2
8" x 6"	15.5	23.3	31.1
10" x 8"	21.0	31.5	42.0
12" x 10"	28.0	42.0	56.0
14" x 12"	36.0	54.0	72.0
16" x 12"	44.0	66.0	88.0
18" x 16"	56.0	84.0	112.0
20" x 16"	68.0	102.0	136.0
24" x 20"	96.0	144.0	192.0
24" x 10"	80.0	120.0	160.0

Material

JIS B2311 Tees are manufactured using a variety of materials to suit different industrial needs:

• Carbon Steel: For high strength and cost-efficiency.
• Stainless Steel: For corrosion resistance and enhanced longevity.
• Alloy Steel: For applications requiring added mechanical strength and heat resistance.
• Copper, Brass, or Nickel Alloys: For specific applications requiring enhanced thermal or corrosion resistance.

Type

1. Equal Tee: Both branch and run pipe diameters are the same.
2. Reducing Tee: The branch diameter is smaller than the run diameter, used to connect pipes of different sizes.
3. Barred Tee: Common in piping systems requiring flow control or filtering.

Corrosion Resistance

• Tees made from stainless steel or alloy steel offer excellent corrosion resistance against harsh chemicals, high temperatures, and moisture.
• Proper surface treatments like galvanization, electroplating, or powder coating enhance the corrosion resistance of carbon steel tees.
• Corrosion resistance ensures durability in applications involving corrosive media, such as chemical processing plants or marine environments.

Benefits

1. Precision Design: Ensures leak-proof connections and uniform fluid flow.
2. Versatile Material Options: Tailored to meet various application requirements.
3. Durability: Withstand high pressure and temperature conditions.
4. Easy Installation: Simplifies pipe network modifications and expansions.
5. Cost-Effective: Reducing maintenance and downtime.

Applications

JIS B2311 Tees are integral to industries including:

• Oil & Gas: For fluid transport in pipelines.
• Chemical Processing: Handling corrosive and high-temperature substances.
• Water Treatment Plants: Efficient distribution of water or chemicals.
• Power Plants: For handling steam and other high-pressure fluids.
• HVAC Systems: Facilitating distribution of refrigerants or air.
• Food & Beverage: For hygienic transfer of liquids.
