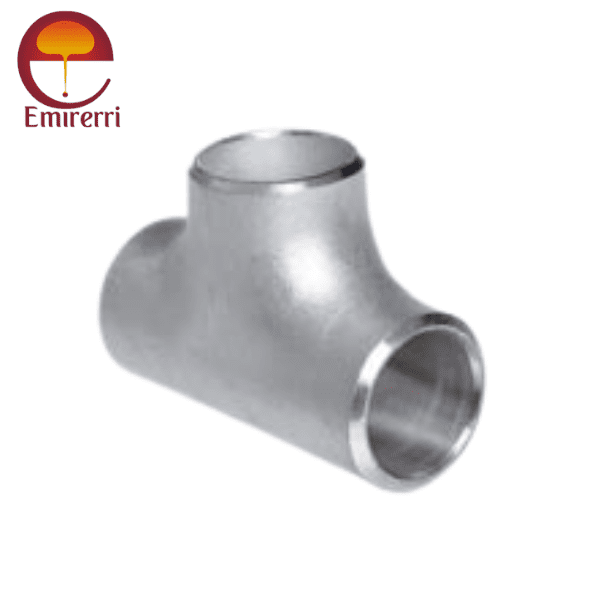

Product Description DIN 10253-2 Tee
DIN 10253-2 Tee is a premium-quality butt-weld pipe fitting designed to meet the rigorous demands of industrial applications. Manufactured according to the DIN 10253-2 standard, this tee ensures precise dimensions, exceptional strength, and reliability in high-pressure and high-temperature environments.
DIN 10253-2 Tee Dimensions:
DIN 10253-2 Straight / Equal Tee Dimensions Chart (in lbs)
NOMINAL PIPE SIZE OUTSIDE DIAMETER CENTER TO END LENGTH
Inch. OD C M
1/2 21.3 25 25
3/4 26.7 29 29
1 33.4 38 38
1 1/4 42.2 48 48
1 1/2 48.3 57 57
2 60.3 64 64
2 1/2 73 76 76
3 88.9 86 86
3 1/2 101.6 95 95
4 114.3 105 105
5 141.3 124 124
6 168.3 143 143
8 219.1 178 178
10 273.1 216 216
12 323.9 254 254
14 355.6 279 279
16 406.4 305 305
18 457.2 343 343
20 508 381 381
22 559 419 419
24 610 432 432
26 660 495 495
28 711 521 521
30 762 559 559
32 813 597 597
34 864 635 635
36 914 673 673
38 965 711 711
40 1016 749 749
42 1067 762 711
44 1118 813 762
46 1168 851 800
48 1219 889 838
DIN 10253-2 Reducing Tee Dimensions Chart (in lbs)
NOMINAL PIPE SIZE OUTSIDE DIAMETER CENTER TO END
Inch D P C M
1/2 x 3/8 21.3 17.1 25 25
1/2 x 1/4 21.3 13.7 25 25
3/4 x 1/2 26.7 21.3 29 29
3/4 x 3/8 26.7 17.1 29 29
1 x 3/4 33.4 26.7 38 38
1 x 1/2 33.4 21.3 38 38
1 1/4 x 1 42.2 33.4 48 48
1 1/4 x 3/4 42.2 26.7 48 48
1 1/4 x 1/2 42.2 21.3 48 48
1 1/2 x 1 1/2 48.3 42.2 57 57
1 1/2 x 1 48.3 33.4 57 57
1 1/2 x 3/4 48.3 26.7 57 57
1 1/2 x 1/2 48.3 21.3 57 57
2 x 1 1/2 60.3 48.2 64 60
2 x 1 1/4 60.3 42.2 64 57
2 x 1 60.3 33.4 64 51
2 x 3/4 60.3 26.7 64 44
2 1/2 x 2 73 60.3 76 70
2 1/2 x 1 1/2 73 48.3 76 67
2 1/2 x 1 1/4 73 42.2 76 64
2 1/2 x 1 73 33.4 76 57
3 x 2 1/2 88.9 73 86 83
3 x 2 88.9 60.3 86 76
3 x 1 1/2 88.9 48.3 86 73
3 x 1 1/4 88.9 42.2 86 70
3 1/2 x 3 101.6 88.9 95 92
3 1/2 x 21/2 101.6 73 95 89
3 1/2 x 2 101.6 60.3 95 83
3 1/2 x 1 1/2 101.6 48.3 95 79
4 x 3 1/2 114.3 101.6 105 102
4 x 3 114.3 88.9 105 98
4 x 2 1/2 114.3 73 105 95
4 x 2 114.3 60.3 105 89
4 x 1 1/2 114.3 48.3 105 86
5 x 4 141.3 114.3 124 117
5 x 3 1/2 141.3 101.6 124 114
5 x 3 141.3 88.9 124 111
5 x 2 1/2 141.3 73 124 108
5 x 2 141.3 60.3 124 105
6 x 5 168.3 141.3 143 137
6 x 4 168.3 114.3 143 130
6 x 3 1/2 168.3 101.6 143 127
6 x 3 168.3 88.9 143 124
6 x 2 1/2 168.3 73 143 121
8 x 6 219.1 168.3 178 168
8 x 5 219.1 141.3 178 162
8 x 4 219.1 114.3 178 156
8 x 3 1/2 219.1 101.6 178 152
10 x 8 273.1 219.1 216 203
10 x 6 273.1 168.1 216 194
10 x 5 273.1 141.3 216 191
10 x 4 273.1 114.3 216 184
12 x 10 323.9 273.1 254 241
12 x 8 323.9 219.1 254 229
12 x 6 323.9 168.3 254 219
12 x 5 323.9 141.3 254 216
14 x 12 355.6 323.9 279 270
14 x 10 355.6 273.1 279 257
14 x 8 355.6 219.1 279 248
14 x 6 355.6 168.3 279 238
16 x 14 406.4 355.6 305 305
16 x 12 406.4 323.9 305 295
16 x 10 406.4 273.1 305 283
16 x 8 406.4 219.1 305 273
16 x 6 406.4 168.3 305 264
18 x 16 457 406.4 343 330
18 x 14 457 355.6 343 330
18 x 12 457 323.9 343 321
18 x 10 457 273.1 343 308
18 x 8 457 219.1 343 298
20 x 18 508 457 381 368
20 x 16 508 406.4 381 356
20 x 14 508 355.6 381 356
20 x 12 508 323.9 381 346
20 x 10 508 273.1 381 333
20 x 8 508 219.1 381 324
22 x 20 559 508 419 406
22 x 18 559 457 419 394
22 x 16 559 406.4 419 381
22 x 14 559 355.6 419 381
22 x 12 559 323.9 419 371
24 x 10 559 273.1 419 359
24 x 22 610 559 432 432
24 x 20 610 508 432 432
24 x 18 610 457 432 419
24 x 16 610 406.4 432 406
24 x 14 610 355.6 432 406
24 x 12 610 323.9 432 397
24 x 10 610 273.1 432 384
Advantages of DIN 10253-2 Tee:
- Reliable performance in high-stress conditions.
- Long service life due to robust construction.
- Versatility in various industrial applications.
- Compatibility with piping systems designed to DIN standards.
Material Options:
- Made of carbon steel, alloy steel, or stainless steel, depending on the application.
- Common grades: S235, P235GH, P265GH, 16Mo3, and stainless steel grades.
Compliance and Testing:
- Fully compliant with European pressure equipment directives.
- Subjected to non-destructive and pressure testing to ensure safety and performance.
Applications:
- Oil and gas pipelines.
- Power plants.
- Petrochemical industries.
- Water treatment systems.
