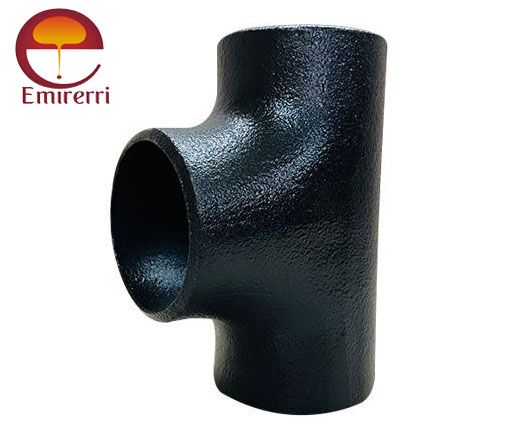

B2311 Tee SGP

The JIS B2311/B2312 SGP Tee is a pipe fitting specified by the Japanese Industrial Standards (JIS). It serves as a junction point for pipes, allowing flow in three directions. Let’s explore the details of this tee:

1. Design and Dimensions:
   • The JIS B2311/B2312 SGP Tee comes in two variations:
     • Equal Tee: All three branches have the same diameter, creating a T-shaped configuration.
     • Reducing Tee: One branch has a smaller diameter than the other two, allowing for a reduction in pipe size.
   • The tee is designed for butt-welding to pipes.
2. Materials:
   • These tees are typically made from materials such as carbon steel, stainless steel, and alloy steel.
3. Dimensions:
   • Available in sizes ranging from ½ inch (15 NB) to 48 inches (1200 NB) or DN10~DN5000.
   • Wall thickness varies based on the outside diameter.
4. Pressure Ratings:
   • The tee’s pressure ratings adhere to the ANSI Class standards, including 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, and 2500 LBS.
5. Surface Treatment:
   • The tee can undergo various surface treatments, such as Oil Black Paint, Anti-rust Paint, Zinc Plating, Yellow Transparent Coating, Cold Dip Galvanization, and Hot Dip Galvanization.
6. Applications:
   • JIS B2311/B2312 SGP Tees find use in various industries, including bitumen upgraders, heavy oil refineries, nuclear power production, petrochemicals, and acids
