ASTM A269
ASTM A269 Seamless Stainless Steel Tubing
ASTM A269 is a widely used ASTM specification covering seamless and welded austenitic stainless steel tubing intended for general corrosion-resistant and low- or high-temperature service. ASTM A269 tubing is commonly selected where cleanliness, corrosion resistance, dimensional consistency, and reliable performance are important.
For applications requiring high-quality stainless steel tubing, ASTM A269 tubing is available in various stainless steel grades, sizes, wall thicknesses, and surface finishes according to project requirements.
ASTM A269 Tubing Specifications
Key ASTM A269 Tubing Specifications
| Property | ASTM A269 Requirement |
|---|---|
| Product Type | Seamless & Welded Tubing |
| Material | Austenitic Stainless Steel |
| Standard | ASTM A269 / ASME SA269 |
| Manufacturing | Seamless or Welded |
| Surface | Mill, Pickled, Annealed, Polished & Special Finishes |
| Heat Treatment | According to Grade & Specification |
| Testing | Mechanical, Hydrostatic / Nondestructive Testing as applicable |
| Outside Diameter | Available in a wide range |
| Wall Thickness | Available according to dimensional requirements |
| Applications | General Corrosion-Resistant & Process Service |
Note: Exact dimensional, mechanical, chemical, and testing requirements should be confirmed against the applicable edition of ASTM A269 and the purchase specification.
ASTM A269 Material
ASTM A269 tubing is manufactured from austenitic stainless steel grades. Common grades include:
ASTM A269 Stainless Steel Grades
- TP304
- TP304L
- TP316
- TP316L
- TP321
- TP347
Other austenitic stainless steel grades may be available subject to specification and manufacturing capability.
ASTM A269 TP304 / 304L
304 and 304L stainless steel tubing provides good corrosion resistance and is widely used in food processing, general industrial applications, chemical processing, and equipment fabrication.
304L has a lower carbon content than 304 and is commonly selected where improved weldability and reduced susceptibility to sensitization are required.
ASTM A269 TP316 / 316L
316 and 316L offer improved corrosion resistance compared with 304 grades, particularly in environments containing chlorides and certain chemical media.
316L stainless steel tubing is widely used for pharmaceutical, food-processing, chemical, laboratory, and high-purity applications.
ASTM A269 TP321
TP321 is stabilized with titanium and is designed for applications where resistance to intergranular corrosion following exposure to elevated temperatures is required.
ASTM A269 TP347
TP347 is a stabilized austenitic stainless steel containing columbium/niobium and is used in applications involving elevated temperatures and corrosive environments.
ASTM A269 Tubing Sizes
ASTM A269 tubing can be supplied in different outside diameters and wall thicknesses depending on the application, manufacturing method, grade, and project requirements.
ASTM A269 Tubing Sizes Table
| Nominal Tube Size | Outside Diameter (Approx.) | Typical Applications |
|---|---|---|
| 1/8″ | 0.405″ | Instrumentation / Small-Bore Lines |
| 1/4″ | 0.540″ | Instrumentation |
| 3/8″ | 0.675″ | Instrumentation / Process Lines |
| 1/2″ | 0.840″ | Process & Utility Lines |
| 3/4″ | 1.050″ | Process Piping |
| 1″ | 1.315″ | Process & Equipment Connections |
| 1-1/2″ | 1.900″ | Process Lines |
| 2″ | 2.375″ | Process & Industrial Applications |
| 3″ | 3.500″ | Process Systems |
| 4″ | 4.500″ | Process & Equipment Systems |
Seamless vs Welded ASTM A269 Tubing
Seamless ASTM A269 Tubing
Seamless tubing is manufactured without a longitudinal weld seam. It can be advantageous for applications requiring high integrity, demanding process conditions, or specific pressure and cleanliness requirements.
Welded ASTM A269 Tubing
Welded tubing is manufactured from stainless steel strip or sheet that is formed and longitudinally welded. Modern manufacturing processes can provide excellent dimensional accuracy and surface quality.
The choice between seamless and welded tubing depends on:
- Operating pressure
- Temperature
- Corrosion conditions
- Required cleanliness
- Tube dimensions
- Surface finish
- Fabrication requirements
- Project specifications
ASTM A269 Tubing Surface Finish
Surface finish can be an important consideration when ASTM A269 tubing is used in high-purity, pharmaceutical, food, semiconductor, and laboratory applications.
Depending on the application, tubing may be supplied with finishes such as:
- Mill finish
- Annealed finish
- Pickled finish
- Bright annealed finish
- Mechanically polished finish
- Electropolished finish
- High-purity internal surface finish
For high-purity applications, the required internal roughness, cleaning procedure, packaging, and surface finish should be specified at the time of inquiry.

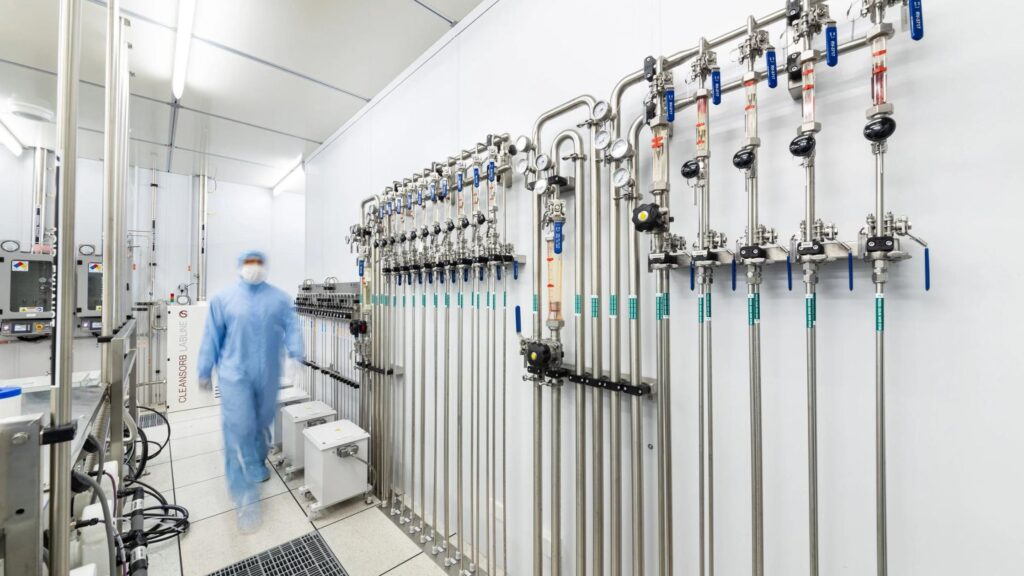

ASTM A269 Tubing for High-Purity Gas Transmission Lines
Stainless steel tubing manufactured to ASTM A269 requirements can be used in systems where cleanliness, corrosion resistance, and controlled surface conditions are important.
High-purity gas transmission systems can be found in industries such as semiconductor manufacturing, laboratories, pharmaceutical production, and specialized industrial processing.
For high-purity gas service, the material specification alone may not define all system requirements. Factors such as surface finish, internal cleanliness, orbital welding, tube handling, cleaning, passivation, and packaging may also be specified by the project.

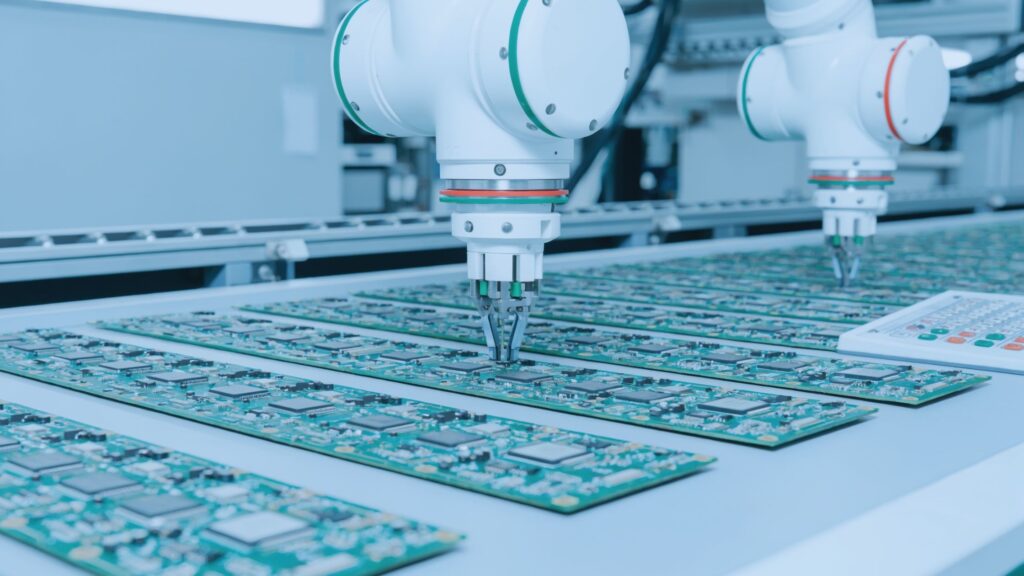

ASTM A269 Tubing for Semiconductor Manufacturing Equipment
Semiconductor manufacturing requires highly controlled process environments. Stainless steel tubing is commonly incorporated into equipment and distribution systems handling specialty and process gases.
ASTM A269 tubing may be considered for applications involving:
- Gas distribution systems
- Semiconductor manufacturing equipment
- Instrumentation systems
- Vacuum-related equipment
- Process gas systems
- Cleanroom equipment
- Chemical delivery equipment
For semiconductor applications, customers may require additional requirements beyond ASTM A269, particularly regarding surface roughness, cleanliness, particle control, moisture control, and packaging.

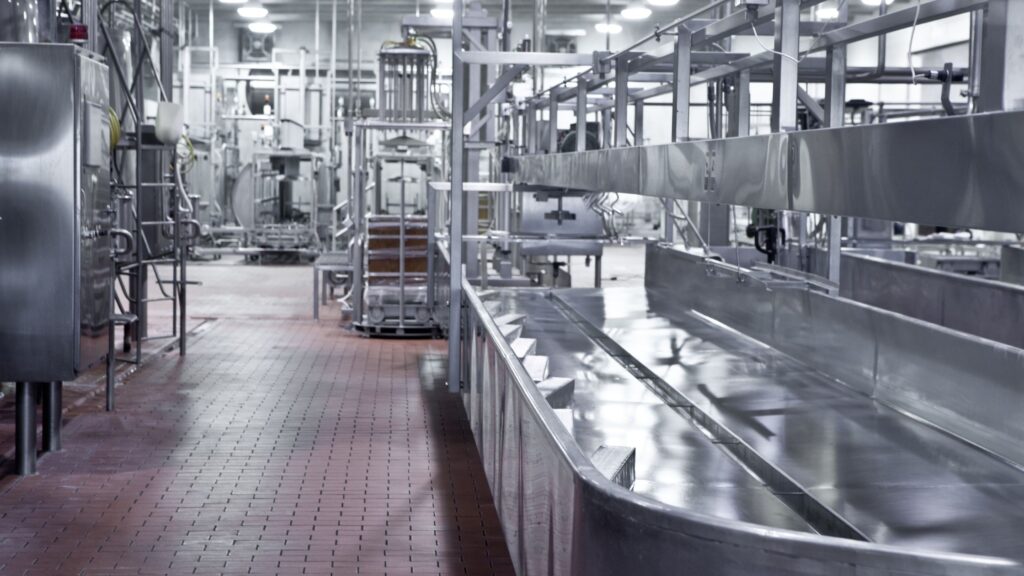

ASTM A269 Tubing for Food Processing
Stainless steel tubing is widely used in food and beverage processing because of its corrosion resistance, cleanability, and hygienic characteristics.
Typical applications include:
- Food processing equipment
- Beverage processing systems
- Dairy equipment
- Product transfer lines
- CIP systems
- Water and utility lines
- Process equipment
304/304L and 316/316L are among the commonly selected stainless steel grades for these applications, depending on the process environment.

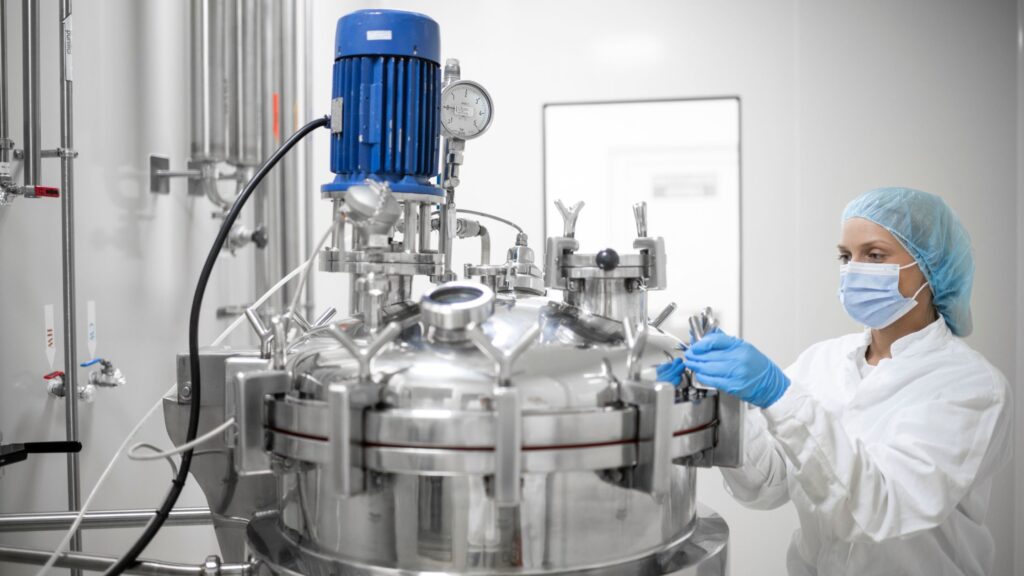

ASTM A269 Tubing for Medicine & Pharmaceutical Applications
ASTM A269 stainless steel tubing can be used in pharmaceutical and medical production equipment where corrosion resistance and cleanable surfaces are required.
Applications may include:
- Pharmaceutical production equipment
- Process systems
- Laboratory equipment
- Purified water systems
- Clean gas systems
- Medical production equipment
- Bioprocessing equipment
Depending on the project, pharmaceutical installations may require additional standards and specifications related to surface finish, sanitary design, orbital welding, cleaning, passivation, and documentation.

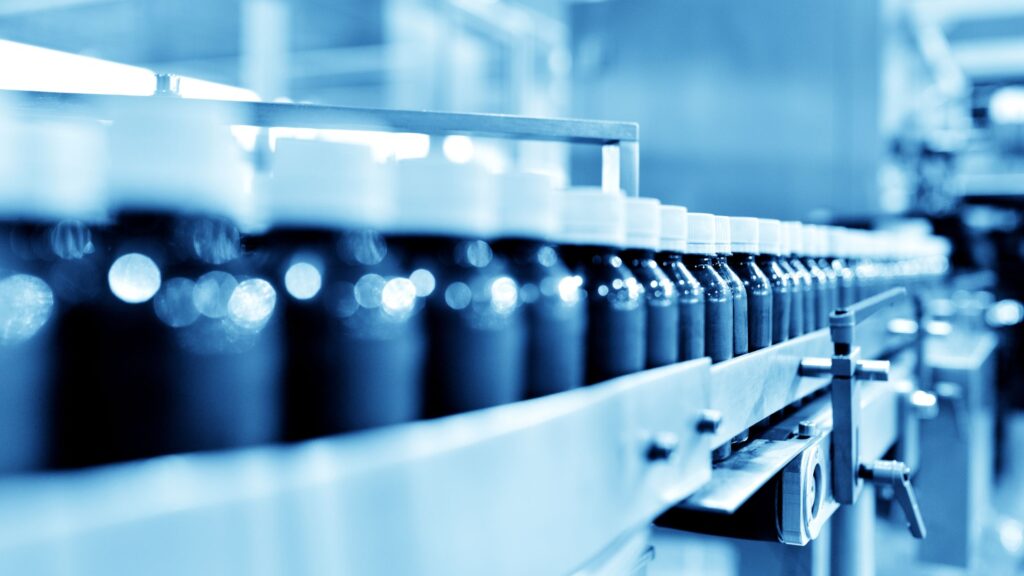

ASTM A269 Tubing for Biology Production Equipment
Biotechnology and biological production facilities require materials capable of supporting controlled and hygienic processing environments.
ASTM A269 stainless steel tubing may be used in:
- Bioprocess equipment
- Laboratory systems
- Biological production equipment
- Process gas systems
- Clean utility systems
- Sampling systems
- Fluid transfer systems
The required material grade and surface finish should be selected according to the process media, cleaning method, temperature, corrosion conditions, and applicable industry requirements.
ASTM A269 vs ASTM A213
ASTM A269 and ASTM A213 both cover austenitic stainless steel tubing, but their intended applications
| Feature | ASTM A269 | ASTM A213 |
|---|---|---|
| Product | Seamless & Welded Tubing | Seamless Tubes |
| Material | Austenitic Stainless Steel | Austenitic & Ferritic/Austenitic Stainless Steels |
| Primary Use | General Corrosion-Resistant Service | Boiler, Superheater & Heat-Exchanger Service |
| Welded Tubing | Yes | No |
| High-Temperature Heat Transfer | Application dependent | Specifically covered |
| Common Industries | Food, Pharmaceutical, Chemical, Semiconductor | Power Generation, Heat Exchangers, Boilers |
Always select the applicable specification based on the service conditions and project requirements, rather than choosing a standard solely based on material grade.
Applications
ASTM A269 tubing is used across a broad range of industrial and process applications, including:
High-Purity Applications
- High-purity gas transmission lines
- Semiconductor manufacturing equipment
- Cleanroom systems
- Specialty gas systems
Pharmaceutical & Medical
- Pharmaceutical manufacturing equipment
- Medicine production equipment
- Laboratory equipment
- Clean utility systems
Food & Beverage
- Food processing equipment
- Beverage production
- Dairy processing
- Hygienic process systems
Biotechnology
- Biology production equipment
- Bioprocess systems
- Laboratory systems
- Process fluid and gas systems
General Industrial
- Instrumentation
- Chemical processing
- Process equipment
- Utility systems
- Corrosion-resistant tubing systems
Frequently Asked Questions ( FAQ )
ASTM A269 is a specification covering seamless and welded austenitic stainless steel tubing for general corrosion-resistant and low- or high-temperature service.
Yes. ASTM A269 covers both seamless and welded austenitic stainless steel tubing. If a project specifically requires seamless tubing, the purchase specification should clearly state seamless construction.
Common grades include TP304, TP304L, TP316, TP316L, TP321, and TP347, subject to the applicable specification and manufacturer's production range.
ASTM A269 tubing can be used in semiconductor-related systems, particularly where stainless steel tubing with controlled cleanliness and surface characteristics is required. However, semiconductor applications often specify additional high-purity requirements beyond the base ASTM material specification.
ASTM A269 TP316L is a low-carbon austenitic stainless steel tubing grade based on 316L stainless steel. It offers good corrosion resistance and is widely used in chemical, pharmaceutical, food, laboratory, and other demanding environments.
ASTM A269 tubing is manufactured in a wide range of outside diameters and wall thicknesses. Availability depends on the grade, manufacturing method, and supplier's production capabilities.
