Stainless Steel Union Elbow
A Stainless Steel Union Elbow is an important instrumentation tube fitting used to connect two pipes or tubes at a 90-degree angle while allowing easy disassembly of the connection. The union design enables quick installation, removal, and maintenance without disturbing the entire pipeline system.
Union elbows are widely used in instrumentation systems, hydraulic systems, gas lines, and industrial fluid transfer applications where space constraints require a directional change in the piping system.
Manufactured from high-quality stainless steel, these fittings provide excellent corrosion resistance, high pressure tolerance, and long service life, making them suitable for demanding industrial environments.
Types of Stainless Steel Union Elbow
Types by Angle Configuration

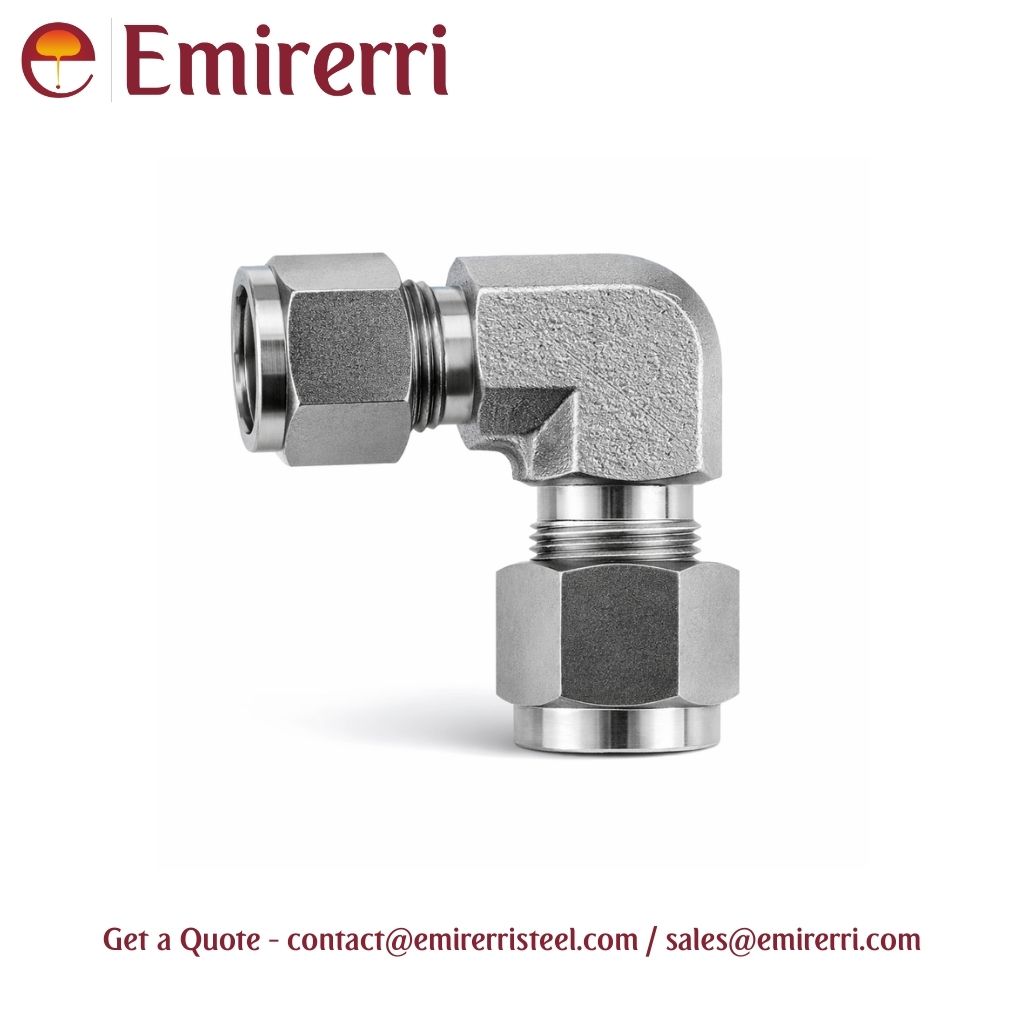

90 Degree Union Elbow
The 90° Union Elbow is the most commonly used configuration. It allows the tubing system to change direction by ninety degrees while maintaining a secure and leak-proof connection.
Features
- Compact design for tight spaces
- Easy installation and removal
- Reliable leak-tight sealing
Applications
- Instrumentation tubing systems
- Hydraulic pipelines
- Chemical processing systems

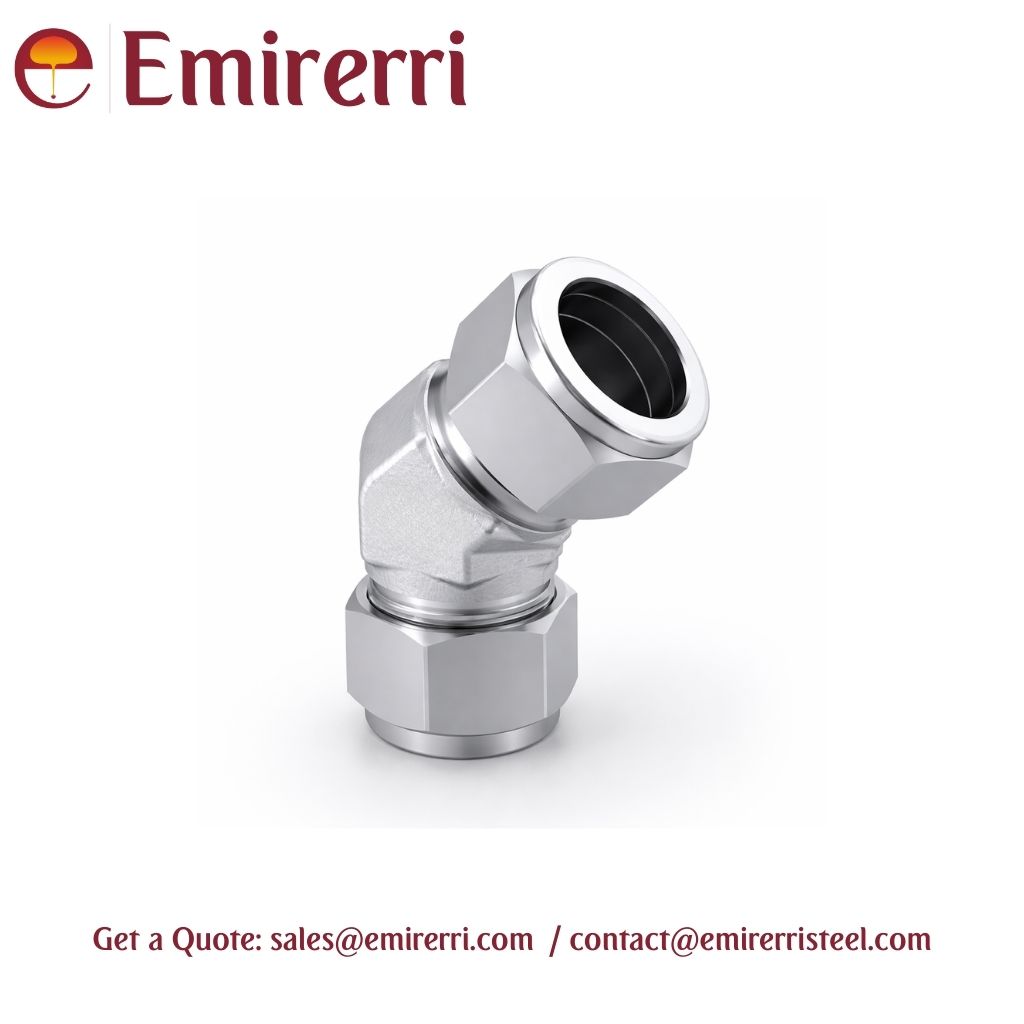

45 Degree Union Elbow
A 45° Union Elbow allows the piping system to change direction at a 45-degree angle. This design helps maintain smoother fluid flow and reduces pressure drop.
Features
- Smooth directional flow
- Reduced turbulence in the pipeline
- Suitable for controlled fluid flow systems
Applications
- Process piping systems
- Chemical plants
- Industrial fluid transfer systems
Types by Connection Method
Compression Union Elbow
Compression-type union elbows are commonly used in instrumentation tubing systems.
Features
- Double ferrule design for secure sealing
- Leak-free performance
- Easy installation without welding
Advantages
- High vibration resistance
- Suitable for high-pressure applications
- Reusable connection

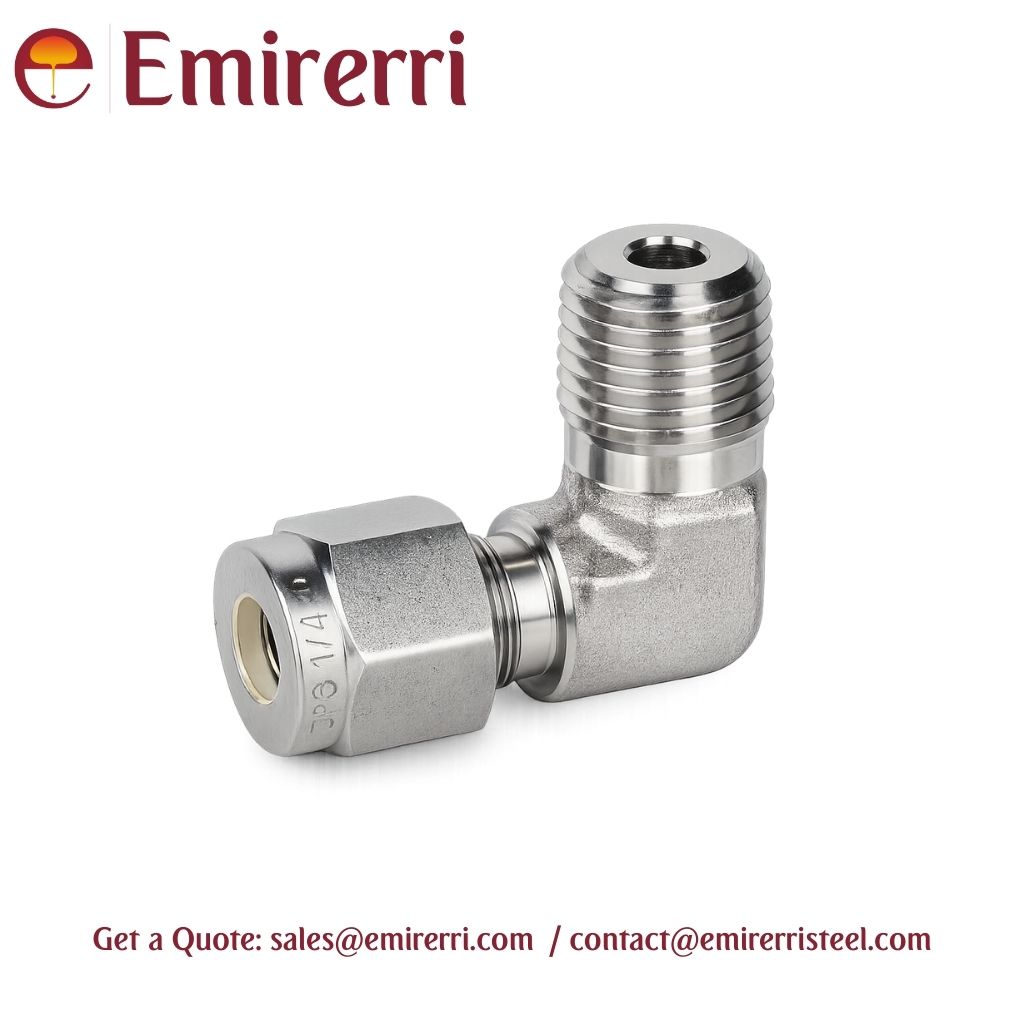

Threaded Union Elbow
Threaded union elbows connect pipes using threaded ends.
Common Thread Types
- NPT (National Pipe Thread)
- BSPT (British Standard Pipe Taper)
- BSPP (British Standard Pipe Parallel)
Advantages
- Strong mechanical connection
- Easy integration with threaded piping systems
- Suitable for industrial fluid systems

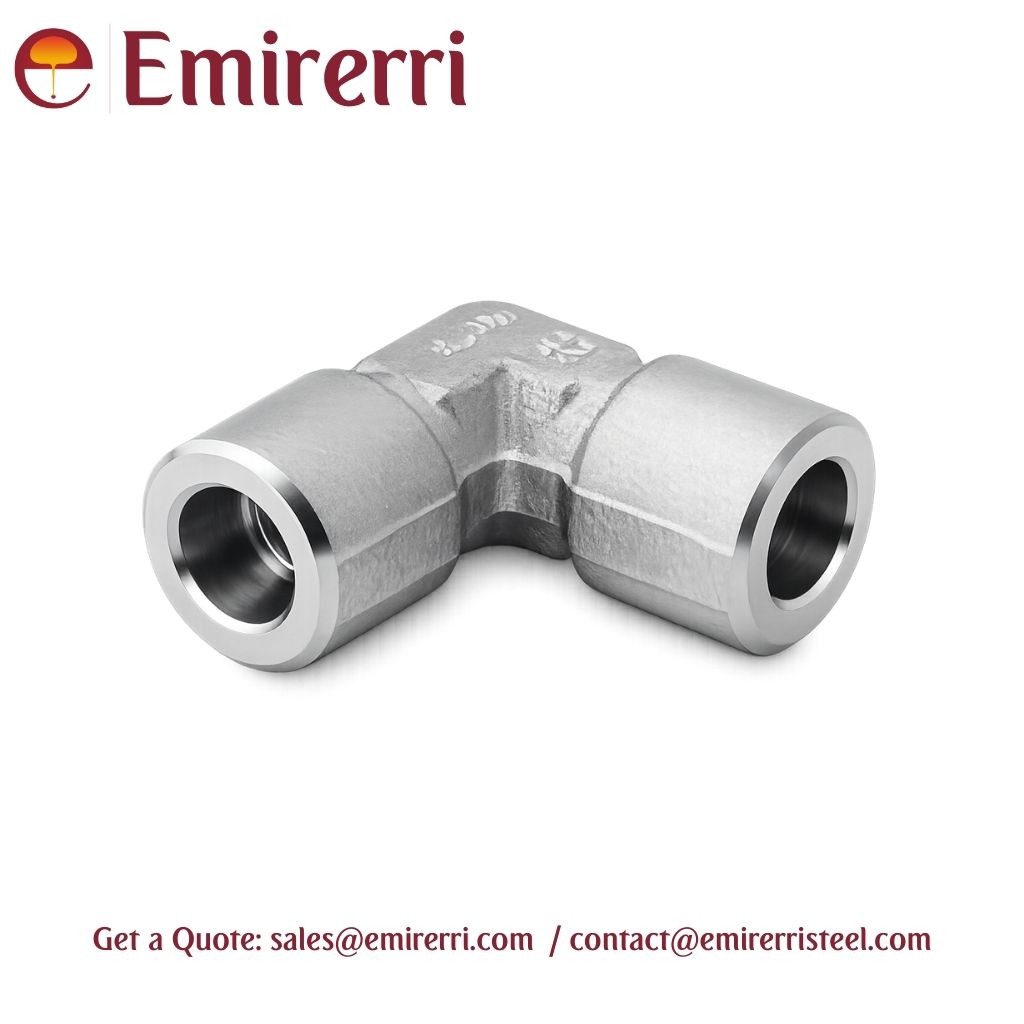

Welded Union Elbow
Welded union elbows are used in applications requiring permanent and high-strength connections.
Advantages
- High structural integrity
- Ideal for high-pressure systems
- Eliminates leakage risk in critical installations
Applications
- Oil and gas pipelines
- Power generation plants
- Chemical processing industries
Materials Used in Stainless Steel Union Elbow
The performance of union elbows depends on the material used during manufacturing.
Stainless Steel 304 Union Elbow
SS 304 offers excellent corrosion resistance and durability.
Properties
- Good corrosion resistance
- High strength and durability
- Suitable for general industrial applications
Applications
- Water treatment plants
- Food processing industries
- Industrial piping systems
Stainless Steel 316 Union Elbow
SS 316 is preferred for environments exposed to chemicals, saltwater, and corrosive substances.
Properties
- Superior corrosion resistance
- Excellent performance in marine environments
- High temperature tolerance
Applications
- Marine industry
- Petrochemical plants
- Pharmaceutical manufacturing
Stainless Steel 316L Union Elbow
SS 316L contains lower carbon content, improving weldability and corrosion resistance.
Properties
- Reduced risk of carbide precipitation
- Ideal for hygienic applications
- Excellent durability in harsh environments
Applications
- Semiconductor industry
- Pharmaceutical production
- Food and beverage processing
Sizes and Dimensions
Stainless steel union elbows are available in both imperial and metric sizes to meet various industrial requirements.
Standard Tube Sizes
- 1/16″
- 1/8″
- 1/4″
- 3/8″
- 1/2″
- 3/4″
- 1″
Metric Sizes
- 3 mm
- 6 mm
- 8 mm
- 10 mm
- 12 mm
- 16 mm
Pressure Rating
The pressure rating depends on the tube size, material, and design, typically ranging from:
3000 PSI to 10000 PSI
Application

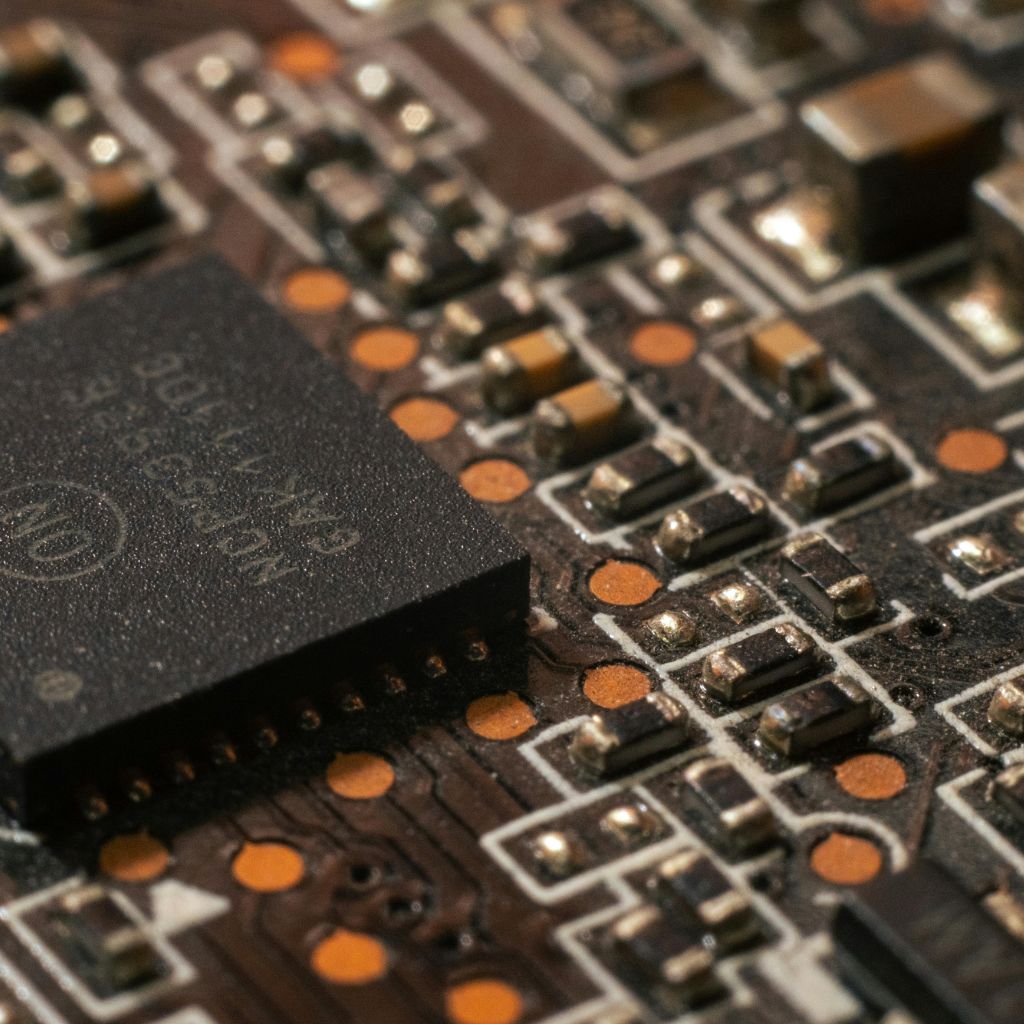

Semiconductor

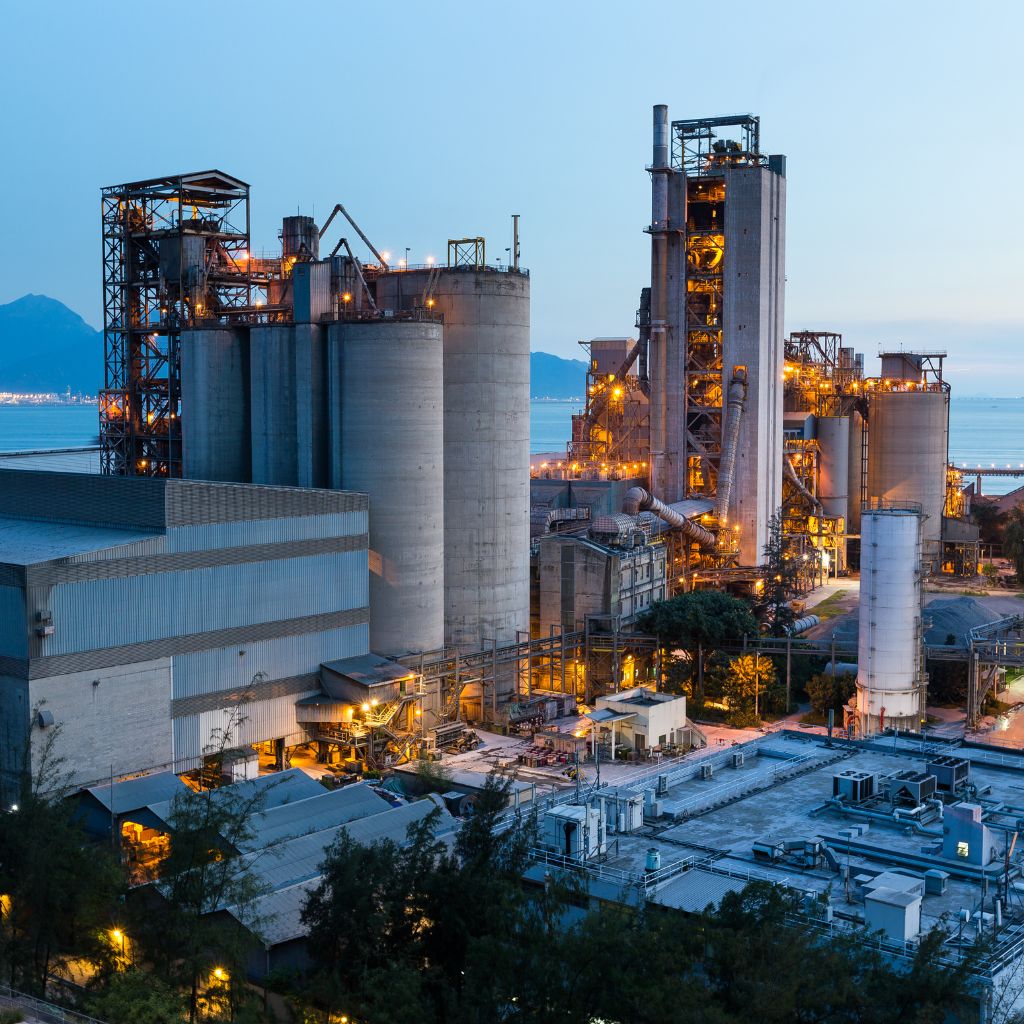

Chemical / Petrochemical

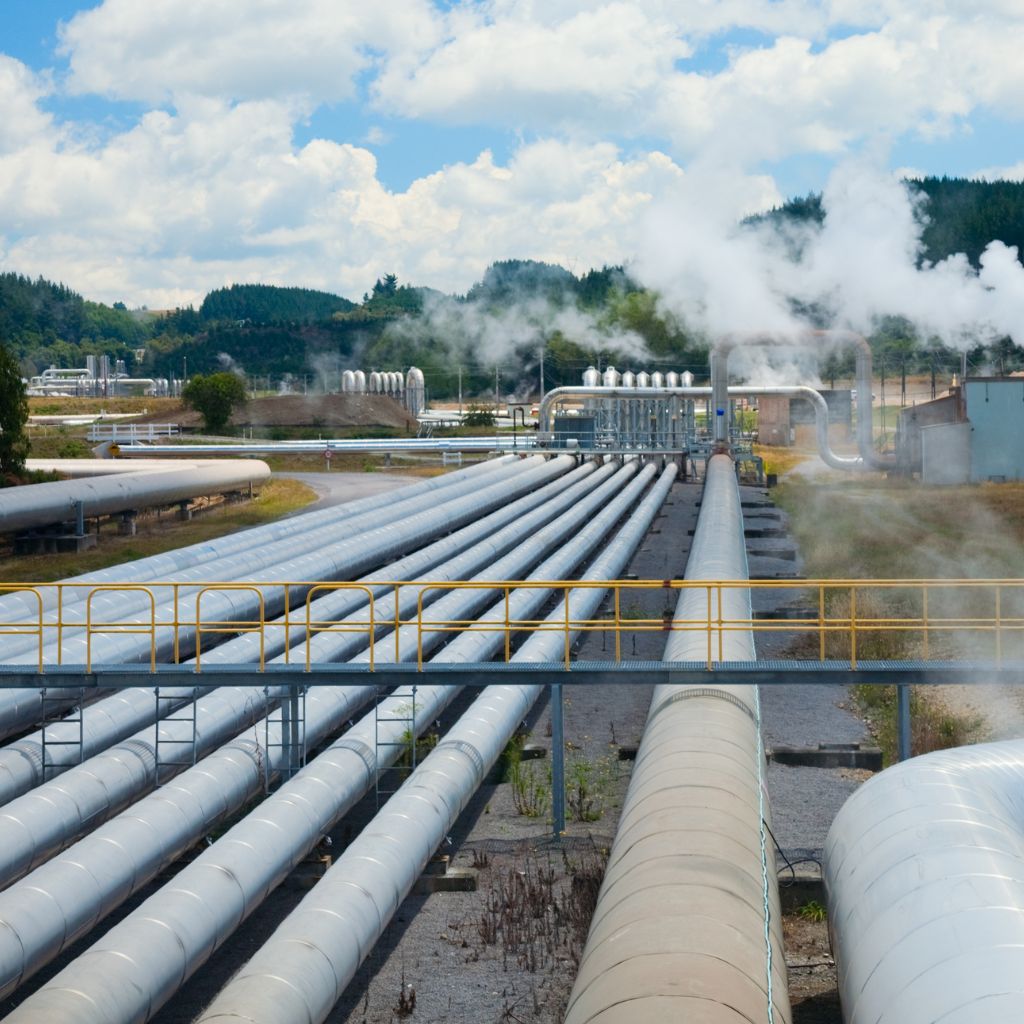

Power Generation

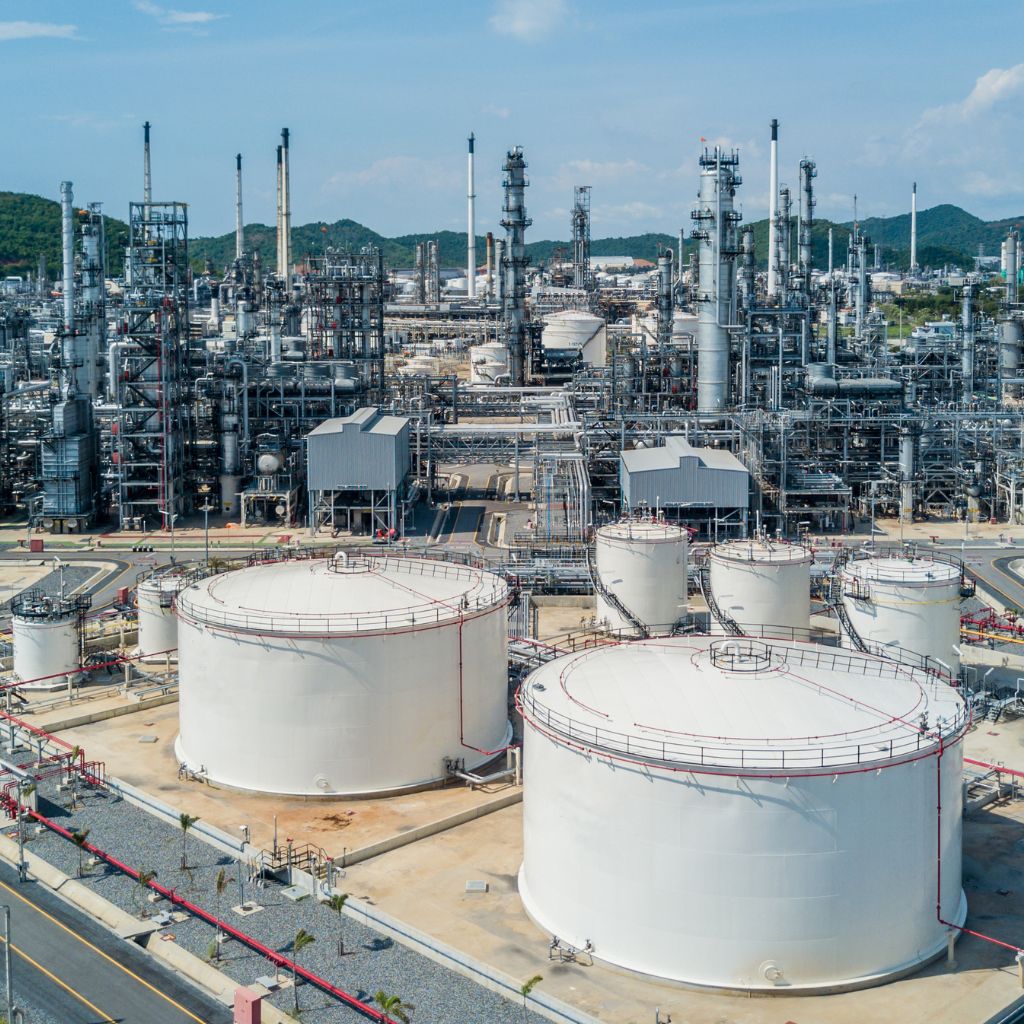

Oil & gas

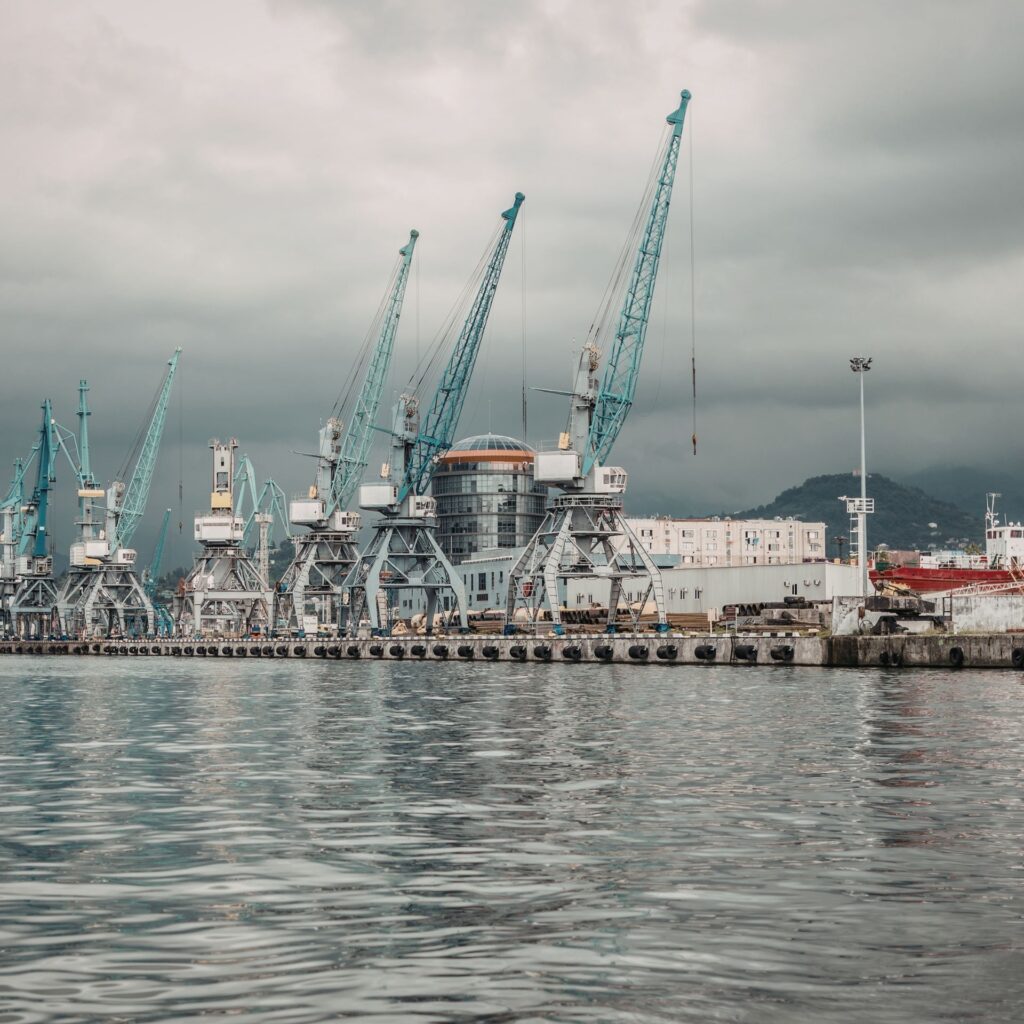

Marine
