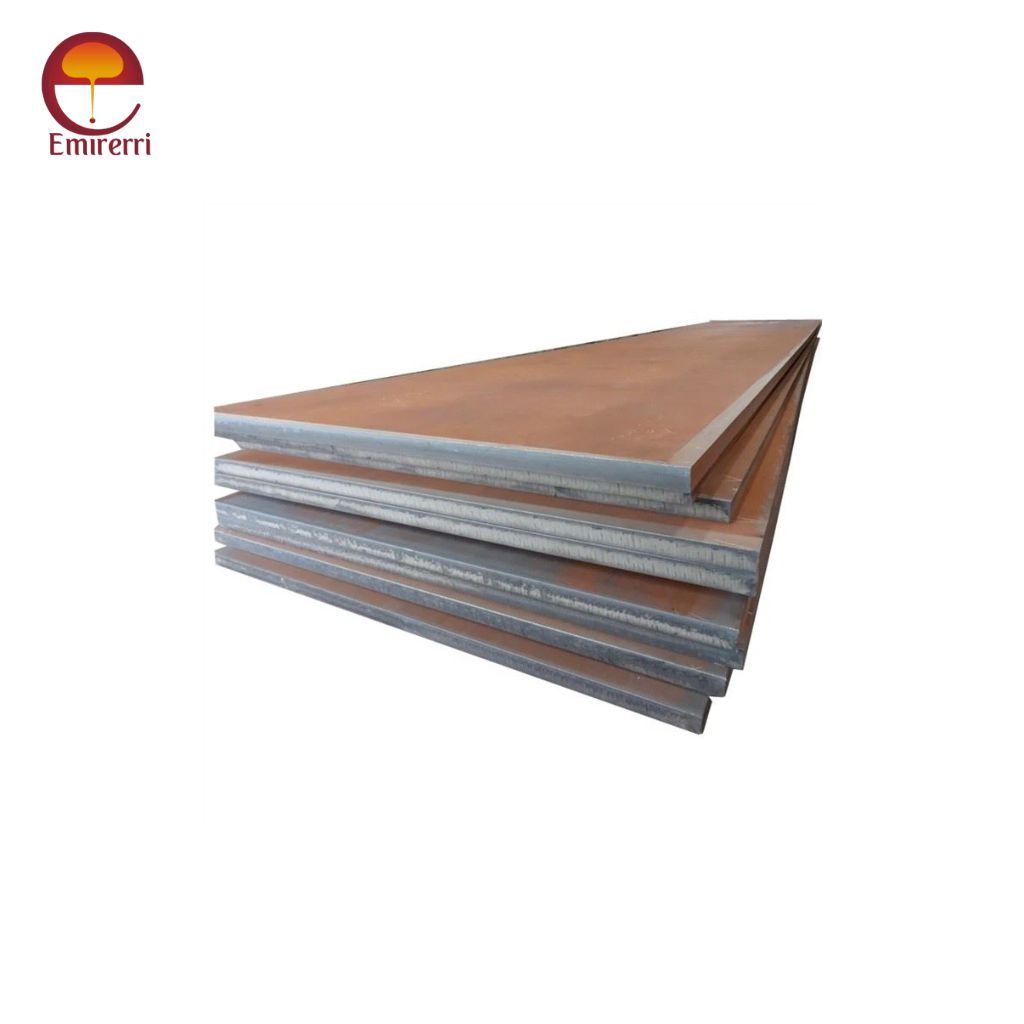

ASTM A242 Corten Steel Plate
ASTM A242 Corten Steel Plate is a high-strength, low-alloy structural steel with enhanced atmospheric corrosion resistance. It is designed to form a stable rust-like appearance when exposed to weather, reducing the need for painting and maintenance. This makes it ideal for structural and architectural applications.
- ASTM A242 Type 1 – Commonly used in structural applications due to its excellent strength and corrosion resistance.
- ASTM A242 Type 2 – Less common, primarily used in specific industrial applications requiring enhanced weathering properties.
Key Features:
- Weathering Resistance: Forms a protective oxide layer, preventing further corrosion.
- High Strength: Superior tensile strength for structural applications.
- Low Maintenance: No need for painting, reducing lifecycle costs.
- Aesthetic Appeal: Distinctive rustic appearance for architectural projects.
Dimensions
- Thickness 2–460 mm, 6 mm–200 mm, and 2–500 mm.
- Width 1500–4050 mm, 500–2000 mm, and Up to 4.8 meters.
- Length 3000–15000 mm, 6000–12000 mm, and Up to 12 meters or 40 ft.
ASTM A242 properties
Chemical Composition
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.15 |
| Manganese (Mn) | 0.20 – 0.50 |
| Phosphorus (P) | ≤ 0.15 |
| Sulfur (S) | ≤ 0.05 |
| Silicon (Si) | 0.25 – 0.75 |
| Copper (Cu) | 0.20 – 0.40 |
| Chromium (Cr) | 0.50 – 1.25 |
| Nickel (Ni) | ≤ 0.65 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 485 – 620 MPa |
| Yield Strength | ≥ 345 MPa |
| Elongation | ≥ 21% |
Applications:
- Bridges & Structural Supports
- Facades & Architectural Designs
- Railway Cars & Shipping Containers
- Outdoor Sculptures & Landscaping
