ANSI/ASME B16.9 Cap

Description

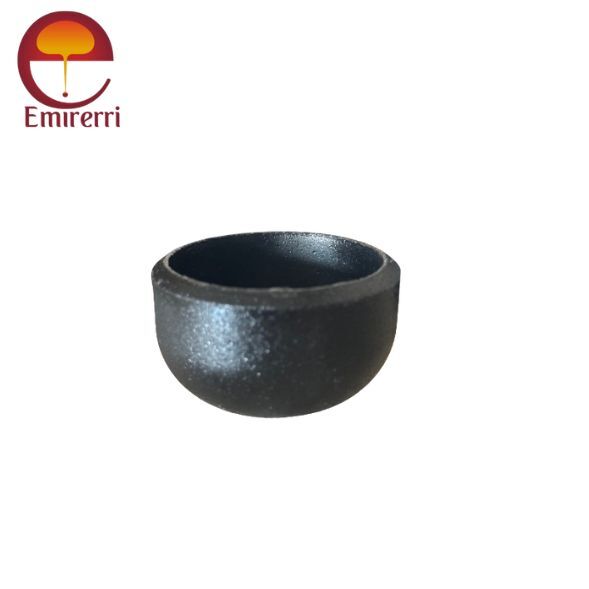

Product Description ANSI/ASME B16.9 Cap

ANSI / ASME B16.9 Cap is a high-quality pipe fitting designed to seal the end of a pipe, ensuring a secure and leak-free connection in piping systems. Manufactured in compliance with ANSI / ASME B16.9 standards, this cap provides a reliable solution for closing off pipes in various industrial applications.

ANSI/ASME B16.9 Cap Dimensions

End Cap Dimension Chart (in lbs)

Inch.	MM		Height
		D	E
1/2	15	21,34	25,40
3/4	20	26,67	31,75
	25	33,40	38,10
1 1/4	32	42,16	38,10
1 1/2	40	48,26	38,10
2	50	60,32	38,10
2 1/2	65	73,02	38,10
3	80	88,90	50,80
3 1/2	90	101,60	63,50
4	100	114,30	63,50
5	125	141,30	76,20
6	150	168,27	88,90
8	200	219,07	101,60
10	250	273,05	127,00
12	300	323,85	152,40
14	350	355,60	165,10
16	400	406,40	177,80
18	450	457,20	203,20
20	500	508,00	228,60
22	550	558,80	254,00
24	600	609,60	266,70
28	700	711,20	266,70

Stub End Dimensions Chart (in lbs)

NOMINAL PIPE SIZE	LAP DIAMETER	OUTSIDE DIAMETER		LONG PATTERN LENGTH	SHORT PATTERN LENGTH	RADIUS
Inch.	A	OD Min	OD Max	L	L	R
1/2	35	22.8	20.5	76	51	3
3/4	43	28.1	25.9	76	51	3
1	51	35	32.6	102	51	3
1 1/4	64	43.6	41.4	102	51	5
1 1/2	73	49.9	47.5	102	51	6
2	92	62.4	59.5	152	64	8
2 1/2	105	75.3	72.2	152	64	8
3	127	91.3	88.1	152	64	10
3 1/2	140	104	100.8	152	76	10
4	157	116.7	113.5	152	76	11
5	186	144.3	140.5	203	76	11
6	216	171.3	167.5	203	89	13
8	270	222.1	218.3	203	102	13
10	324	277.2	272.3	254	127	13
12	381	328	323.1	254	152	13
14	413	359.9	354.8	305	152	13
16	470	411	405.6	305	152	13
18	533	462	456	305	152	13
20	584	514	507	305	152	13
22	641	565	558	305	152	13
24	692	616	609	305	152	13

End Cap Weight Chart (in lbs)

Nominal Pipe Size (NPS)	Schedule 40 (lbs)	Schedule 80 (lbs)	Schedule 160 (lbs)
1/2"	0.16	0.23	0.30
3/4"	0.23	0.32	0.42
1"	0.30	0.45	0.60
1 1/4"	0.40	0.60	0.80
1 1/2"	0.50	0.75	1.00
2"	0.70	1.05	1.40
2 1/2"	1.05	1.60	2.10
3"	1.40	2.10	2.80
4"	2.00	3.00	4.00
5"	2.70	4.00	5.30
6"	3.50	5.20	7.00
8"	5.00	7.50	10.00
10"	7.50	11.20	14.90
12"	10.00	15.00	20.00
14"	12.50	18.70	25.00
16"	15.50	23.30	31.00
18"	19.00	28.50	38.00
20"	23.00	34.50	46.00
24"	30.00	45.00	60.00
28"	37.50	56.00	75.00

Tolerance

Parameter	Tolerance
Outside Diameter (OD)	±1% of nominal OD or ±0.5 mm, whichever is greater
Wall Thickness (WT)	±12.5% of specified wall thickness
Height (H)	±1.5% of the nominal height or ±3 mm, whichever is greater
Out-of-Roundness	≤1% of the nominal OD
End Preparation	±1 mm for bevel length and ±2° for bevel angle
Surface Finish	Free from defects such as cracks, dents, or visible seams
Marking Tolerance	Legible and durable markings in accordance with ASME, ANSI, or applicable standards

Material Options

Available in Carbon Steel, Stainless Steel, Alloy Steel, and other customized materials to suit diverse requirements.

Benefits

• Prevents leaks by sealing pipe ends effectively.
• Enhances the safety and efficiency of piping systems.
• Long service life with resistance to corrosion and wear.

Design

Smooth surface finish with a durable and corrosion-resistant build, suitable for high-pressure and high-temperature applications.

Applications

• Oil and gas transmission pipelines
• Chemical processing plants
• Petrochemical refineries
• Power generation facilities
• Water treatment plants
• Pharmaceutical industries
• Food processing plants
