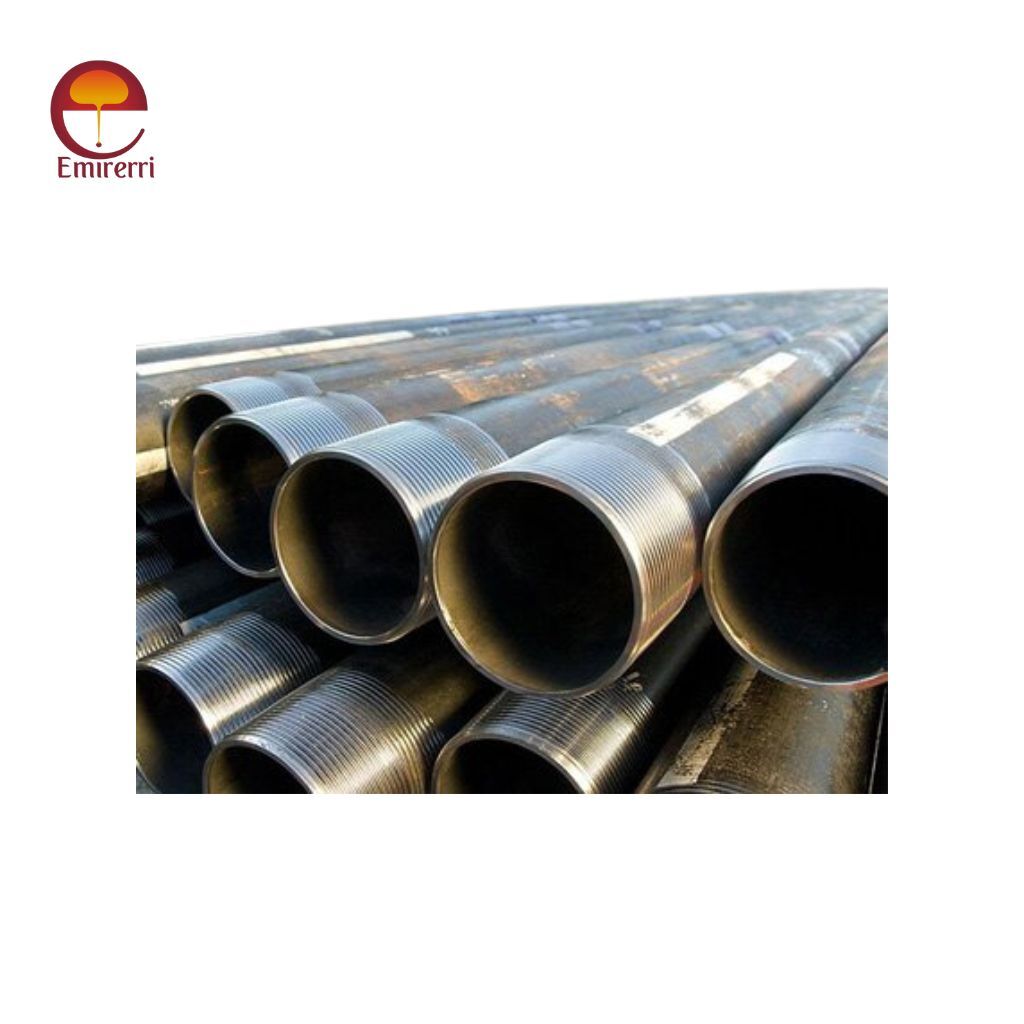

API 5CT Pipe

AttributeDetails
StandardAPI 5CT (Specification for Casing and Tubing)
ApplicationOil and Gas Wells – Casing and Tubing
Product TypesCasing Pipe, Tubing Pipe
Manufacturing MethodSeamless (SMLS), Electric Resistance Welded (ERW), or Electric Welded (EW)
Outer Diameter (OD)Casing: 114.3 mm to 508 mm
Tubing: 26.7 mm to 114.3 mm
Wall Thickness (WT)As per API 5CT Spec (varies with size and grade)
Length RangeR1 (6.10–7.32 m), R2 (8.53–9.75 m), R3 (11.58–13.72 m)
Steel GradesJ55, K55, N80 (N80-1, N80-Q), L80, C90, T95, P110, Q125
Connection TypesSTC (Short Thread), LTC (Long Thread), BTC (Buttress Thread), Premium
End FinishPlain End (PE), Threaded and Coupled (T&C)
Thread TypeRound Thread, Buttress Thread, Premium Connections
Heat TreatmentNormalized, Quenched & Tempered (Q&T), or as per grade
Product Specification LevelsPSL-1, PSL-2, PSL-3
Surface CoatingVarnish, Phosphated, or as per customer requirement
MarkingAPI Monogram, Grade, Size, Heat No., Manufacturer’s Mark, etc.
CertificationAPI 5CT, ISO 9001, Mill Test Certificate (MTC), Third-Party Inspection
PackagingBundled with Steel Strips, Plastic Caps on Ends, or as required
Category:

Description

API 5CT Pipe

API 5CT is a specification developed by the American Petroleum Institute (API) that standardizes the technical requirements for steel casing and tubing pipes used in the oil and gas industry. These pipes are essential for drilling operations, providing structural integrity to the wellbore and facilitating the extraction of hydrocarbons.

Casing vs. Tubing:

  • Casing: A large-diameter pipe inserted into a drilled wellbore, cemented in place to prevent collapse, isolate different underground formations, and provide a stable environment for drilling.
  • Tubing: A smaller-diameter pipe placed inside the casing through which oil and gas are transported from the reservoir to the surface.

Steel Grades:

API 5CT categorizes casing and tubing into various steel grades, each tailored for specific operational conditions:

  • J55: Suitable for shallow, low-pressure wells.
  • K55: Similar to J55 but with higher tensile strength, used in slightly deeper wells.
  • N80: Designed for medium-depth wells with higher pressure.
  • L80: Offers corrosion resistance, ideal for wells with corrosive environments.
  • P110: High-strength grade for deep wells with high pressure and temperature.

Connections:

The specification also defines standard connection types to ensure compatibility and secure joining of pipes:

  • SC (Short Round Thread Casing): Commonly used for casing pipes.
  • LC (Long Round Thread Casing): Provides better sealing and tensile strength.
  • BC (Buttress Thread Casing): Offers high tensile strength, suitable for deep wells.
  • NU (Non-Upset Tubing): Tubing without an upset, used where clearance is limited.
  • EU (External Upset Tubing): Tubing with an external upset to provide additional strength.
  • IJ (Integral Joint Tubing): Tubing with integral joint connections, eliminating the need for couplings.

Manufacturing Processes:

API 5CT pipes are produced using various methods

  • Seamless (SMLS): Manufactured without a welded seam, offering high strength and resistance to internal pressure.
  • Electric Welded (EW): Formed by welding the edges of steel plates, suitable for certain applications.

Product Specification Levels (PSL):

The specification defines three PSLs, indicating different levels of technical requirements

  • PSL-1: Basic requirements.
  • PSL-2: Includes additional testing and quality control measures
  • PSL-3: The most stringent level with comprehensive testing and quality assurance.

Understanding these classifications and specifications is crucial for selecting the appropriate casing and tubing for specific drilling conditions, ensuring safety, efficiency, and longevity in oil and gas operations.
