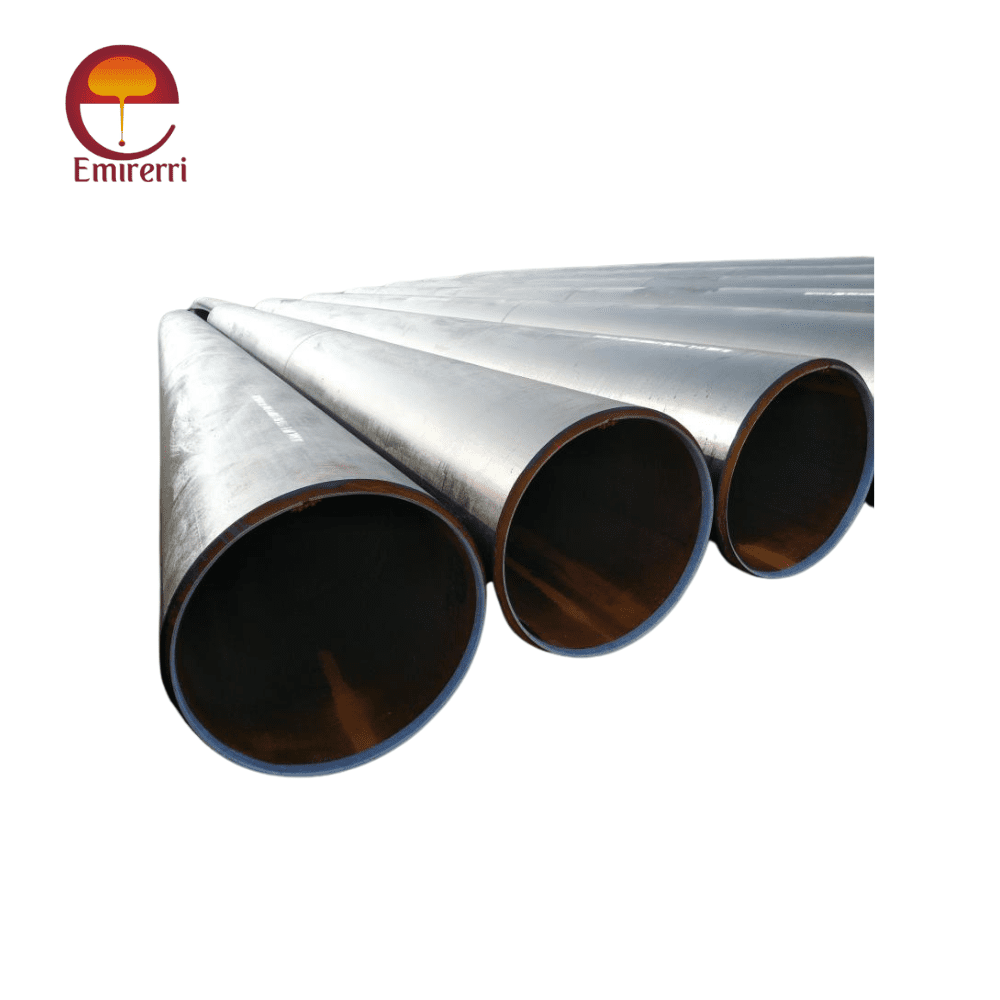

Product NameAPI 5L SAW Pipe
Material TypeCarbon Steel
SpecificationAPI 5L
GradesVarious grades (e.g., B, X42, X52, X60, X65, X70, X80)
StandardsAPI 5L, ISO 3183
Pipe TypeSubmerged Arc Welded (SAW)
Diameter Range16 inches to 120 inches
Wall Thickness6 mm to 25.4 mm
Length6 meters to 18 meters
CertificationISO 9001, API 5L, CE
Categories: ,


Product Description

API 5L SAW pipes are robust and reliable pipes designed for the transportation of oil, gas, and water in various industrial applications. These pipes are manufactured using the Submerged Arc Welding (SAW) technique, ensuring high-quality welds and excellent structural integrity.

Chemical Composite for API 5L SAW Pipe

ElementContent (%)
Carbon (C)0.26 max
Manganese (Mn)1.20 max
Phosphorus (P)0.030 max
Sulfur (S)0.030 max
Silicon (Si)0.45 max
Nickel (Ni)0.50 max
Chromium (Cr)0.50 max
Copper (Cu)0.50 max
Vanadium (V)0.10 max
Molybdenum (Mo)0.15 max
Titanium (Ti)0.04 max

Mechanical Properties for API 5L SAW Pipe

Yield StrengthMinimum: 60,200 psi (415 MPa)
Maximum: 110,200 psi (760 MPa)
Tensile StrengthMinimum: 75,400 psi (520 MPa)
Maximum: 125,400 psi (865 MPa)
ElongationMinimum: 23%
Charpy V-Notch Impact TestMinimum: 20 Joules at -20°C (-4°F)


Emirerri Steel utilizes advanced SAW welding technology to produce API 5L SAW pipes with precise weld quality and dimensional accuracy. Each pipe undergoes rigorous quality control measures to ensure it meets the highest industry standards for performance and reliability.
