ASTM A516 Pressure Vessel Steel Plate
ASTM A516 is a standard specification for carbon steel plates, which are typically utilized in the manufacture of pressure vessels and boilers that operate at moderate to low temperatures. This specification encompasses four distinct grades—55, 60, 65, and 70, with Grade 70 being the most prevalent due to its optimal balance of strength and toughness.
Key Features
- Grades Available: A516 Grade 55, Grade 60, Grade 65, and Grade 70
- Excellent Weldability & Formability
- High Strength & Toughness
- Superior Resistance to Fracture at Low Temperatures
- Normalized Plate for Enhanced Mechanical Properties
Dimensions
Property
|
ASTM A516 Grade 60, 65 & 70
|
ASTM A516 Grade 70
|
ASTM A516/ASME SA516 Carbon Steel Sheets & Plates
|
| Thickness |
0.100–3.54 in (2.54–89.9 mm) |
8–100 mm |
5–150 mm |
| Width |
48–129.9 in (1200–3299 mm) |
1500–3500 mm |
1000–4500 mm |
| Length |
72–1020 in (1800–25910 mm) |
3000–8000 mm |
3000–18000 mm |
Chemical Composition (Max Values, in %)
| Grade |
C |
Mn |
P |
S |
Si |
| 55 |
0.18 |
0.60-0.90 |
0.030 |
0.030 |
0.13-0.45 |
| 60 |
0.21 |
0.60-0.90 |
0.030 |
0.030 |
0.13-0.45 |
| 65 |
0.24 |
0.85-1.20 |
0.030 |
0.030 |
0.13-0.45 |
| 70 |
0.27 |
0.85-1.20 |
0.030 |
0.030 |
0.13-0.45 |
Mechanical Properties
| Grade |
Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) |
| 55 |
380-515 |
205 |
21 (200mm) |
| 60 |
415-550 |
220 |
21 (200mm) |
| 65 |
450-585 |
240 |
19 (200mm) |
| 70 |
485-620 |
260 |
17 (200mm) |
Heat Treatment
Plates with a thickness of 40 mm (1.5 inches) or less are typically supplied in an as-rolled condition. However, if notch-toughness tests are required, normalization is recommended. For plates exceeding 40 mm in thickness, normalization is mandatory to ensure the desired mechanical properties are achieved.
Applications

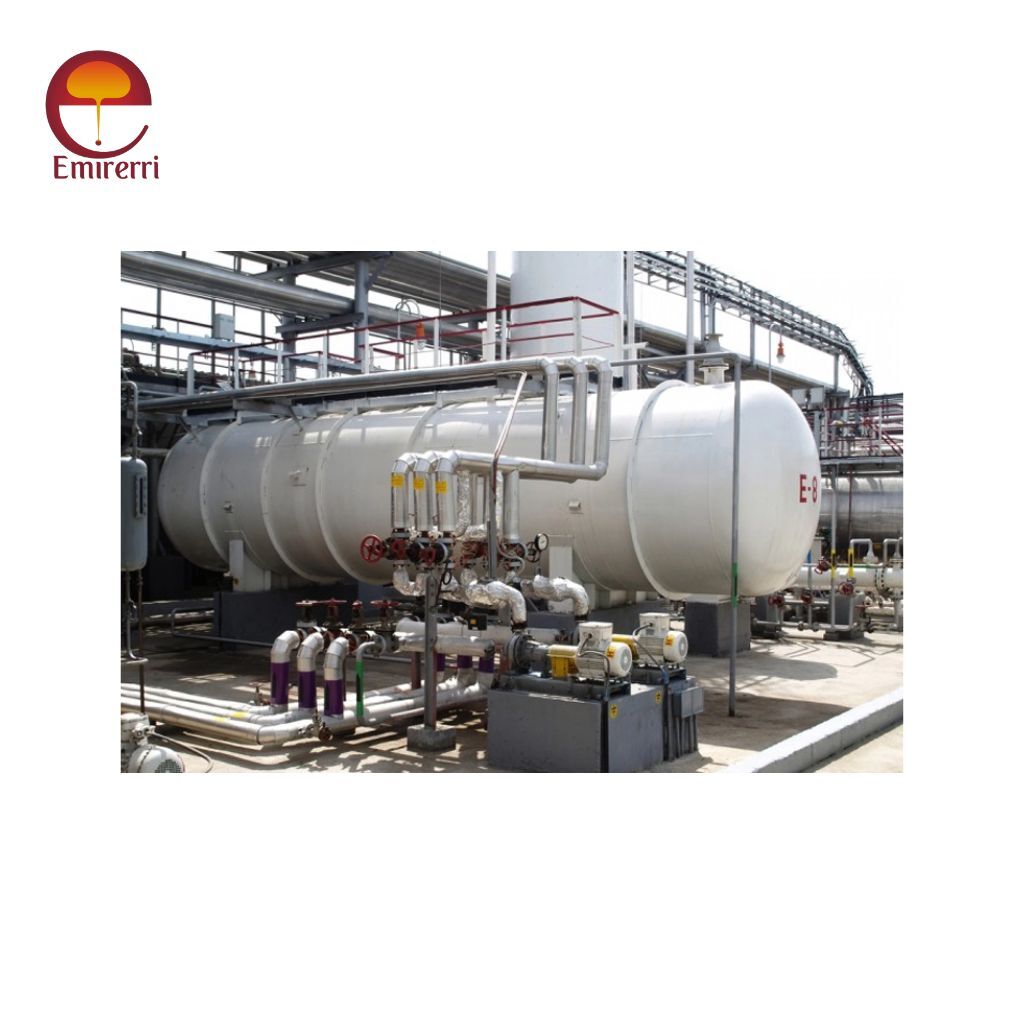

- Pressure Vessels
- Boilers
- Storage Tanks
- Heat Exchangers
- Industrial Processing Equipment
