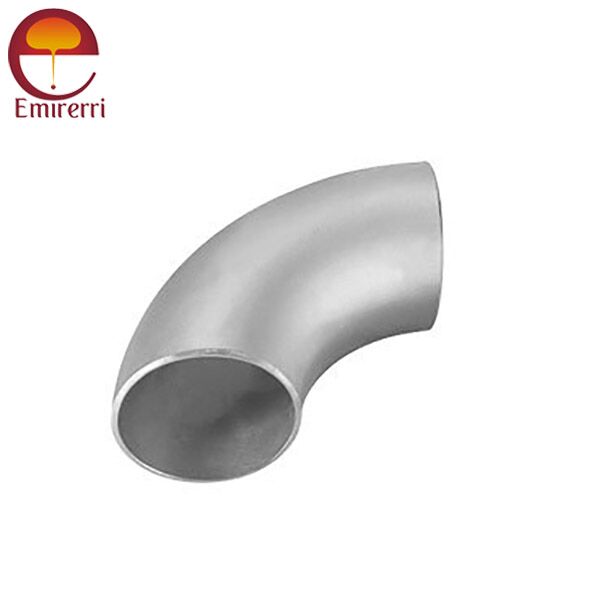

DIN 10253-2 Elbow

Place of Origin:Bharat (India)
Brand Name:Emirerri
Model Number:Elbow
Standard:ASME B16.9, ANSI N16.28, MSS-SP-43, ASME B16.25, DIN 2605, GOST 17375, GOST 30753, EN10253-1, DIN10253-2, ISO3419, ISO5251
Product name:EN10253-1 Elbow
Material:Stainless Steel: ASTM / ASME SA403 GR WP "S" / "W" / " WX"
304, 304L, 304H, 309, 310H, 316L, 316H, 317, 317L, 321, 321H, 904, 904L, 347, 347H.
Duplex Steel: ASTM / ASME SA815, UNS NO. S31803, S32205, S32550, S32750, S32760.
Carbon Steel: ASTM / ASME A234 WPB, WPC
ASTM/ASME A860, WHY42, WHY46, WHY52, WHY60, WPHY65 & WPHY70.
Alloy Steel: ASTM / ASME A234, WP1, WP5, WP9, WP11, WP12, WP22, WP23, WP91.
Low Temperature Carbon Steel: ASTM A420, WPL3 / 4A420WPL6
Wall Thickness3mm - 40mm / SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, XS, SCH100, SCH120, SCH140, SCH160, XXS
Outside Diameter :Seamless Elbow (½" » 24") ERW / Welded / Fabricated Elbow (½" ~ 72")
Bending Radius :R=1D - 10D, 15D, 20D Product's Angle : 5°-180° Elbows, 90° and 45° Long Radius Elbow, 180° Long Radius Returns, Short Radius Elbow and Returns
Packing:Plywood cases\wooden Pallets
Certificate:ISO, CE


Product Description

DIN 10253-2 Elbow is a crucial component designed for seamless integration into piping systems across various industries. It facilitates changes in the direction of flow, ensuring efficient fluid conveyance and optimal system performance.

Material: Crafted from premium-grade materials such as carbon steel, stainless steel, alloy steel, and other materials suited to diverse operating conditions and applications.

Design: The butt weld elbow conforms meticulously to the dimensions and specifications outlined in DIN 10253-2, guaranteeing seamless compatibility and interchangeability with other DIN 10253-2 fittings and pipes. Its design incorporates smooth curves to minimize pressure drop and flow resistance, enhancing system efficiency.

Manufacturing Standards: Manufactured in strict compliance with DIN 10253-2 standards, our butt weld elbows undergo comprehensive quality control measures to uphold the highest standards of performance and reliability.

Sizes: Available in a broad range of sizes, from small diameters to larger dimensions, catering to various pipe diameters and wall thicknesses for versatile application in piping system design and installation.

Angles: Elbows are available in standard angles such as 45°, 90°, and 180° to accommodate different piping layout requirements and flow direction changes.

Applications: Suitable for a wide array of applications across industries including:

  • Oil and gas transmission pipelines
  • Chemical processing plants
  • Petrochemical refineries
  • Power generation facilities
  • Water treatment plants
  • Pharmaceutical industries
  • Food processing plants
  • HVAC systems
  • And more


  • Exceptional corrosion resistance for prolonged service life
  • High mechanical strength and durability to withstand demanding operating conditions
  • Precision manufacturing for seamless fit and alignment, ensuring leak-free performance
  • Smooth surface finish for efficient welding and reduced flow turbulence
  • Easy installation and maintenance, contributing to cost-effectiveness and operational efficiency
  • Wide temperature and pressure range capability, ensuring adaptability to diverse operating environments

Certifications: Our DIN 10253-2 butt weld elbows are accompanied by pertinent material certifications and can undergo additional third-party inspection and certification upon request, ensuring compliance with industry standards and regulations.

Customization: Tailored customization options are available to accommodate specific project requirements, encompassing special materials, coatings, dimensions, and angles.

Quality Assurance: Each butt weld elbow undergoes stringent quality inspections throughout the manufacturing process to ensure impeccable dimensional accuracy, material integrity, and reliable performance.

Packaging: Carefully packaged to prevent damage during transit and storage, ensuring the elbows arrive at the customer’s location in pristine condition.
