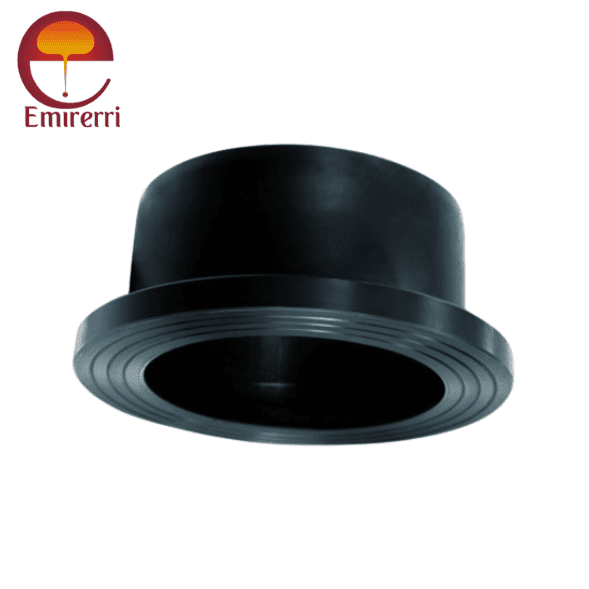

Product Description MSS SP 43 Stub End
MSS SP 43 is a standard that specifies the dimensions and design criteria for stub ends, which are commonly used in piping systems, particularly in butt-welded pipe fittings. A stub end is a short piece of pipe that is welded to the pipe for attaching flanges or other fittings. These fittings are used in systems where frequent dismantling or changing of flanged connections is required.
-
Type A Stub End:
- This type of stub end is typically used when a flanged connection needs to be made to a pipe. The pipe end is welded to the stub end, which then has a flange that can be bolted to another flange.
- The Type A stub end has a longer back bevel and is designed for applications where the stub end is welded to the pipe, with the flange positioned outward.
-
Type B Stub End:
- The Type B stub end is used in similar applications but features a shorter back bevel compared to Type A. The design is intended for use where the stub end is welded to the pipe and then connected to another flanged fitting or valve.
- This type of stub end is used when space or cost considerations make the shorter bevel more practical.
MSS SP 43 Stub End Dimensions Chart
| Inch | ND | MM. | Diameter of lap Joint | Radius of fillet | Length F
|
| D | G | R | R1 | MSS SP43 | ASME B16.9 Stub End |
| 1/2 | 15 | 21,34 | 34,92 | 3,17 | 0,80 | 50,80 | 76,20 |
| 3/4 | 20 | 26,67 | 42,86 | 3,17 | 0,80 | 50,80 | 76,20 |
| 1 | 25 | 33,40 | 50,80 | 3,17 | 0,80 | 50,80 | 101,60 |
| 1 1/4 | 32 | 42,16 | 63,50 | 4,76 | 0,80 | 50,80 | 101,60 |
| 1 1/2 | 40 | 48,26 | 73,00 | 6,35 | 0,80 | 50,80 | 101,60 |
| 2 | 50 | 60,32 | 92,10 | 7,93 | 0,80 | 63,50 | 152,40 |
| 2 1/2 | 65 | 73,02 | 104,80 | 7,93 | 0,80 | 63,50 | 152,40 |
| 3 | 80 | 88,90 | 127,00 | 9,52 | 0,80 | 63,50 | 152,40 |
| 3 1/2 | 90 | 101,60 | 139,70 | 9,52 | 0,80 | 76,20 | 152,40 |
| 4 | 100 | 114,30 | 157,20 | 11,11 | 0,80 | 76,20 | 152,40 |
| 5 | 125 | 141,30 | 185,70 | 11,11 | 1,58 | 76,20 | 203,20 |
| 6 | 150 | 168,27 | 215,90 | 12,70 | 1,58 | 88,90 | 203,20 |
| 8 | 200 | 219,07 | 269,80 | 12,70 | 1,58 | 101,60 | 203,20 |
| 10 | 250 | 273,05 | 323,80 | 12,70 | 1,58 | 127,00 | 254,00 |
| 12 | 300 | 323,85 | 381,00 | 12,70 | 1,58 | 152,40 | 254,00 |
| 14 | 350 | 355,60 | 412,70 | 12,70 | 1,58 | 152,40 | 304,80 |
| 16 | 400 | 406,40 | 469,90 | 12,70 | 1,58 | 152,40 | 304,80 |
| 18 | 450 | 457,20 | 533,40 | 12,70 | 1,58 | 152,40 | 304,80 |
| 20 | 500 | 508,00 | 584,20 | 12,70 | 1,58 | 152,40 | 304,80 |
| 22 | 550 | 558,80 | 641,30 | 12,70 | 1,58 | 152,40 | 304,80 |
| 24 | 600 | 609,60 | 692,10 | 12,70 | 1,58 | 152,40 | 304,80 |
MSS SP 43 Stub End Dimensions Chart (in inches)
| Nominal Pipe Size (NPS) | D1 (Outside Diameter) | D2 (Diameter of Stub End) | L (Length) | B (Flange Thickness) |
| 1/2" | 0.840 | 0.625 | 1.38 | 0.125 |
| 3/4" | 1.050 | 0.875 | 1.50 | 0.125 |
| 1" | 1.315 | 1.050 | 1.75 | 0.125 |
| 1 1/4" | 1.660 | 1.375 | 2.00 | 0.125 |
| 1 1/2" | 1.900 | 1.500 | 2.25 | 0.125 |
| 2" | 2.375 | 2.000 | 2.50 | 0.125 |
| 2 1/2" | 2.875 | 2.500 | 2.75 | 0.125 |
| 3" | 3.500 | 3.000 | 3.00 | 0.125 |
| 4" | 4.500 | 3.500 | 3.50 | 0.125 |
| 5" | 5.563 | 4.500 | 4.00 | 0.125 |
| 6" | 6.625 | 5.500 | 4.50 | 0.125 |
| 8" | 8.625 | 7.000 | 5.00 | 0.125 |
| 10" | 10.750 | 8.625 | 5.50 | 0.125 |
| 12" | 12.750 | 10.750 | 6.00 | 0.125 |
| 14" | 14.000 | 12.750 | 6.50 | 0.125 |
| 16" | 16.000 | 14.000 | 7.00 | 0.125 |
| 18" | 18.000 | 16.000 | 7.50 | 0.125 |
| 20" | 20.000 | 18.000 | 8.00 | 0.125 |
| 24" | 24.000 | 22.000 | 8.50 | 0.125 |
| 28" | 28.000 | 26.000 | 9.00 | 0.125 |
MSS SP 43 Stub End Tolerance
| Dimension | Tolerance |
| Length (L) | ± 1/8 inch (± 3.2 mm) |
| Outside Diameter (OD) | ± 1/16 inch (± 1.6 mm) |
| Wall Thickness (WT) | ± 0.02 inch (± 0.51 mm) |
| End Face to Centerline (E) | ± 1/16 inch (± 1.6 mm) |
| Hub Length (HL) | ± 1/8 inch (± 3.2 mm) |
| Bolt Hole Diameter | ± 1/16 inch (± 1.6 mm) |
| Bolt Hole Location | ± 1/16 inch (± 1.6 mm) |
| Flange Drilling (B/C) | ± 1/16 inch (± 1.6 mm) |
Applications:
- Piping Systems
- Flanged Connections
- Pressure Systems
- Tight Spaces
- Corrosive Environments
Benefits:
- Cost-effective: Stub ends offer a more affordable alternative to welded flanges, as they can be easily installed and replaced.
- Ease of Installation: They simplify the process of joining pipes and flanges, reducing installation time and effort.
- Leak-proof Connections: Provides a strong and secure connection, ensuring leak-free performance.
- Versatility: Compatible with a wide range of pipe sizes and materials.
- Long-lasting Durability: Made from high-quality materials, MSS SP 43 Stub Ends are designed for long-term performance, even under harsh conditions.
