Description
Product Description

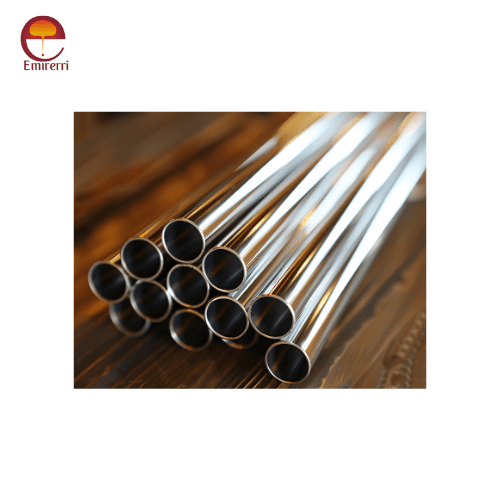

Stainless steel tube are an essential component in a wide range of industries, offering superior corrosion resistance, strength, and durability. These tubes are used in applications ranging from structural and mechanical purposes to specialized applications in the chemical, food, and medical industries. Emirerri Steel offers high-quality stainless steel tubes in various grades, including SS 304, SS 316, and SS 321, ensuring optimal performance for your specific needs.
Chemical Composition Stainless Steel Tube
| Element | SS 304 (%) | SS 316 (%) | SS 321 (%) |
|---|---|---|---|
| Carbon (C) | 0.08 max | 0.08 max | 0.08 max |
| Manganese (Mn) | 2.00 max | 2.00 max | 2.00 max |
| Silicon (Si) | 0.75 max | 0.75 max | 0.75 max |
| Phosphorus (P) | 0.045 max | 0.045 max | 0.045 max |
| Sulfur (S) | 0.030 max | 0.030 max | 0.030 max |
| Chromium (Cr) | 18.00-20.00 | 16.00-18.00 | 17.00-19.00 |
| Nickel (Ni) | 8.00-10.50 | 10.00-14.00 | 9.00-12.00 |
| Molybdenum (Mo) | - | 2.00-3.00 | - |
| Titanium (Ti) | - | - | 5(C+N) min |
| Nitrogen (N) | - | 0.10 max | - |
Mechanical Properties Stainless Steel Tube
| Property | SS 304 | SS 316 | SS 321 |
|---|---|---|---|
| Tensile Strength (MPa) | 515 min | 515 min | 515 min |
| Yield Strength (0.2% offset) (MPa) | 205 min | 205 min | 205 min |
| Elongation (% in 50mm) | 40 min | 40 min | 40 min |
| Hardness (HB) | 201 max | 217 max | 217 max |
Conclusion
Stainless steel tube from Emirerri Steel offer unparalleled performance, combining superior corrosion resistance, strength, and durability. The chemical composition and mechanical properties of grades SS 304, SS 316, and SS 321 ensure that these tubes meet the highest standards for various industrial applications. SS 304 is ideal for general-purpose use with excellent welding and forming characteristics. SS 316 provides enhanced resistance to pitting and crevice corrosion, making it suitable for marine and chemical environments. SS 321 is stabilized with titanium, offering excellent resistance to intergranular corrosion in high-temperature applications.
