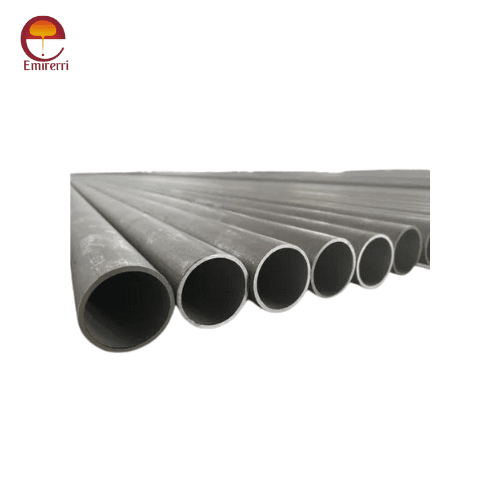

What is A335 P1 Seamless Alloy Steel Pipe?
The ASTM A335 P1 Seamless Alloy Steel Pipe is a critical component used across numerous industries due to its excellent performance under extreme conditions. This type of piping is specifically designed for high-temperature services, making it indispensable in power generation, chemical processing, and petroleum industries. Below, we delve deep into the features, applications, standards, and advantages of ASTM A335 P1 pipes. ASTM A335, also known as ASME SA335, is the standard specification for seamless ferritic alloy-steel pipes. The P1 grade of this standard signifies a specific chemical composition and mechanical properties tailored for high-temperature and high-pressure applications. These pipes are predominantly used in boilers, heat exchangers, and pipelines that handle corrosive fluids or gases.
Key Specifications
- Standard: ASTM A335 / ASME SA335
- Grade: P1
- Size Range: ½” NB to 24” NB (Nominal Bore)
- Thickness: SCH 20 to SCH XXS, including heavy wall thickness
- Type: Seamless
- Ends: Plain End (PE), Beveled End (BE), Threaded End (TE)
- Length: Single Random, Double Random, or Custom Lengths
A335 P1 Seamless Pipe Dimensions
NPS (in) OD (in) SCH 10 (WT/ID) SCH 40 (WT/ID) SCH 80 (WT/ID) SCH 160 (WT/ID) SCH XXS (WT/ID)
1/8 0.405 0.049 / 0.307 0.068 / 0.269 0.095 / 0.215 0.123 / 0.159 0.215 / 0.215
1/4 0.540 0.065 / 0.410 0.088 / 0.364 0.119 / 0.302 0.157 / 0.226 0.302 / 0.302
1/2 0.840 0.083 / 0.674 0.109 / 0.622 0.147 / 0.546 0.187 / 0.466 0.294 / 0.294
3/4 1.050 0.083 / 0.884 0.113 / 0.824 0.154 / 0.742 0.218 / 0.614 0.308 / 0.434
1 1.315 0.109 / 1.097 0.133 / 1.049 0.179 / 0.957 0.250 / 0.815 0.358 / 0.599
1 1/4 1.660 0.109 / 1.442 0.140 / 1.380 0.191 / 1.278 0.250 / 1.160 0.382 / 0.896
1 1/2 1.900 0.109 / 1.682 0.145 / 1.610 0.200 / 1.500 0.281 / 1.338 0.400 / 1.100
2 2.375 0.109 / 2.157 0.154 / 2.067 0.218 / 1.939 0.344 / 1.687 0.436 / 1.503
3 3.500 0.120 / 3.260 0.216 / 3.068 0.300 / 2.900 0.438 / 2.624 0.600 / 2.300
4 4.500 0.120 / 4.260 0.237 / 4.026 0.337 / 3.826 0.531 / 3.438 0.674 / 3.152
6 6.625 0.134 / 6.357 0.280 / 6.065 0.432 / 5.761 0.719 / 5.187 0.864 / 4.897
8 8.625 0.148 / 8.329 0.322 / 7.981 0.500 / 7.625 0.906 / 6.813 1.125 / 6.375
10 10.750 0.165 / 10.420 0.365 / 10.020 0.500 / 9.750 1.250 / 8.250 1.406 / 7.938
12 12.750 0.180 / 12.390 0.375 / 12.000 0.500 / 11.750 1.406 / 9.938 1.562 / 9.625
A335 P1 Chemical Composition
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.10 max |
| Manganese (Mn) | 0.30 - 0.60 |
| Silicon (Si) | 0.10 - 0.50 |
| Phosphorus (P) | 0.025 max |
| Sulfur (S) | 0.025 max |
| Chromium (Cr) | 0.50 - 0.65 |
| Molybdenum (Mo) | 0.44 - 0.65 |
A335 P1 Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 415 MPa (60,200 psi) min |
| Yield Strength | 205 MPa (29,700 psi) min |
| Elongation | 30% min |
| Hardness (Brinell) | 163 HB max |
| Hardness (Rockwell B) | 85 HRB max |
| Impact Energy (Charpy V-Notch) | 27 J (20 ft-lbf) min at -20°C (-4°F) |
Manufacturing Process
The seamless nature of ASTM A335 P1 pipes ensures a smooth and uniform structure, providing better strength and durability. The production involves several key stages:
- Hot Working: Raw steel billets are heated to high temperatures and shaped into hollow tubes through extrusion or rotary piercing.
- Cold Drawing: The pipes are then cold-drawn to achieve precise dimensions and surface finish.
- Heat Treatment: Pipes undergo annealing, normalizing, or tempering to enhance mechanical properties.
- Inspection and Testing: Stringent quality checks, including hydrostatic tests, ultrasonic testing, and radiographic inspections, ensure compliance with ASTM standards.
Applications
The ASTM A335 P1 seamless pipes are widely employed in applications requiring superior thermal and pressure resistance. Key industries include:
1. Power Generation
- Nuclear and thermal power plants’ superheater tubes and boilers.
- High-pressure steam piping systems.
2. Chemical Processing
- Transport of corrosive chemicals in refineries and petrochemical plants.
- Heat exchanger and reactor piping.
3. Oil and Gas Industry
- Piping systems for upstream, midstream, and downstream operations.
- High-temperature transportation of crude oil and natural gas.
4. Industrial Applications
- Mechanical piping systems in heavy engineering.
- Automotive exhaust systems.
Advantages of ASTM A335 P1 Pipes
- High-Temperature Resistance: The alloy composition enables these pipes to withstand extreme temperatures without losing structural integrity.
- Corrosion Resistance: Chromium and molybdenum provide excellent resistance to oxidation and corrosion.
- Strength and Durability: The seamless construction ensures uniformity and eliminates weak points, resulting in robust performance.
- Customizability: Available in a wide range of sizes, thicknesses, and lengths to meet diverse project requirements.
- Extended Service Life: Exceptional mechanical properties and resistance to wear contribute to longer operational lifespans.
Testing and Quality Assurance
ASTM A335 P1 pipes go through extensive testing to guarantee they meet international standards. Common tests include:
- Chemical Analysis: Verifies the material’s chemical composition.
- Mechanical Testing: Determines tensile strength, yield strength, and elongation.
- Hardness Test: Ensures hardness within permissible limits.
- Hydrostatic Test: Confirms pressure resistance.
- Non-Destructive Testing (NDT):
- Ultrasonic Testing (UT)
- Magnetic Particle Testing (MPT)
- Radiographic Testing (RT)
Heat Treatment Processes
ASTM A335 P1 pipes may undergo different heat treatments to enhance their performance characteristics:
- Annealing: Softens the material and improves ductility.
- Normalizing: Refines grain structure and enhances toughness.
- Tempering: Reduces brittleness while maintaining strength.
Standards and Certifications
Compliance with international standards ensures the reliability of ASTM A335 P1 pipes:
- ASTM A335 / ASME SA335: Governs the manufacturing and material specifications.
- ISO 9001: Certification ensures quality management systems.
- API (American Petroleum Institute): Compliance for oil and gas applications.
- PED (Pressure Equipment Directive): Certification for European markets.
Comparison with Other Grades
While ASTM A335 P1 pipes are highly versatile, other grades like P5, P9, P11, and P22 offer varying levels of strength, corrosion resistance, and temperature tolerance. P1 pipes are generally preferred for moderate temperatures and pressures, making them cost-effective for specific industrial applications.
Maintenance and Handling
Proper maintenance and handling practices can significantly extend the service life of ASTM A335 P1 pipes:
- Storage: Keep pipes in a dry environment to prevent surface corrosion.
- Cleaning: Regularly clean to remove corrosive residues.
- Inspection: Periodically inspect for cracks, pitting, or other damages.
- Repairs: Address minor damages promptly to avoid escalation.
Conclusion
The ASTM A335 P1 seamless alloy steel pipe is widely used in high-temperature and high-pressure applications across several industries. With its superior mechanical properties, excellent corrosion resistance, and adaptability to challenging environments, it’s a preferred choice for engineers and project managers worldwide. By adhering to strict manufacturing standards and incorporating advanced technology, these pipes ensure safety, efficiency, and durability in critical operations.
Whether for power plants, refineries, or industrial piping systems, ASTM A335 P1 pipes offer unmatched reliability, making them an essential component in modern infrastructure development. When sourcing these pipes, ensure compliance with international standards and collaborate with reputable manufacturers to guarantee optimal performance and longevity.
