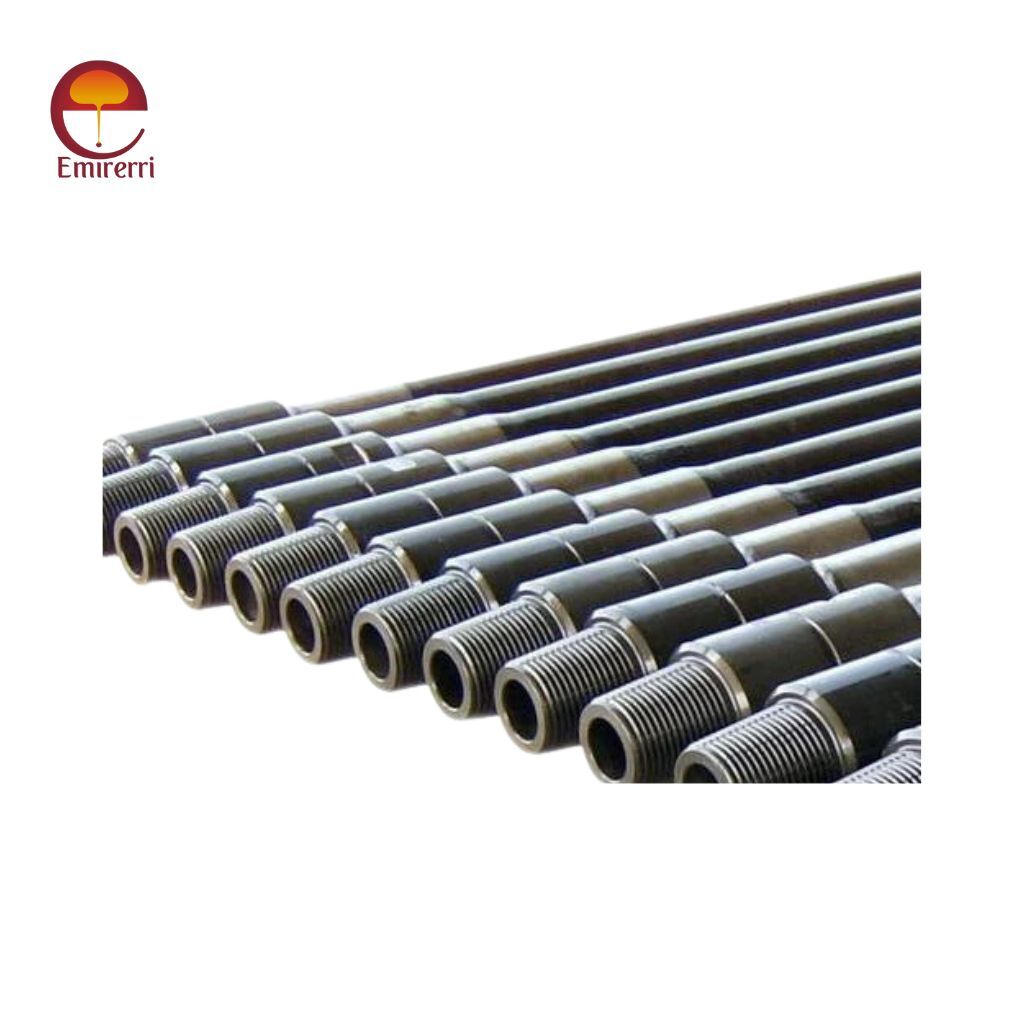

API 5DP Drill Pipe

Description

What is API 5DP Drill Pipe?

API 5DP drill pipe is a standardized drilling pipe used extensively in the oil and gas industry. It is a crucial component in drilling operations, designed to transmit drilling torque, withstand high-pressure conditions, and facilitate efficient drilling through various geological formations. The American Petroleum Institute (API) establishes the API 5DP standard to ensure uniformity, quality, and reliability in drill pipe manufacturing.

Key Features

1. Standardized Manufacturing – API 5DP ensures that drill pipes are manufactured according to strict industry standards to enhance durability and performance.
2. Material Composition – Typically made from high-strength alloy steel such as 4140 or 4145, API 5DP drill pipes undergo rigorous heat treatments for enhanced mechanical properties.
3. Connection Types – These drill pipes come with tool joint connections like NC (Numbered Connection), IF (Internal Flush), and FH (Full Hole), ensuring compatibility with different drilling rigs.
4. Thickened Pipe Body – The drill pipe body is reinforced to endure the stress of drilling operations, reducing failure risks.
5. High Torque Resistance – API 5DP pipes offer superior torque resistance, which is essential in deep and complex drilling conditions.
6. Corrosion & Wear Resistance – The pipes are often coated or treated to resist wear, corrosion, and fatigue, ensuring longevity and cost efficiency.

API 5DP Drill Pipe Specification & Classification

Grade	Yield Strength (psi)	Tensile Strength (psi)	Hardness (HRC)	Application
E-75	75,000 – 105,000	100,000 – 140,000	<30	Shallow drilling
X-95	95,000 – 125,000	105,000 – 150,000	<32	Medium-depth drilling
G-105	105,000 – 135,000	115,000 – 160,000	<34	Deep well drilling
S-135	135,000 – 165,000	145,000 – 190,000	<36	Ultra-deep drilling

API 5DP Drill Pipe Sizes

• 2-3/8 in: Drill pipe ID of 1.815 in and a weight of 6.65 lb/ft
• 2-7/8 in: Drill pipe ID of 2.151 in and a weight of 10.40 lb/ft
• 3-1/2 in: Drill pipe ID of 2.764 in or 2.602 in and a weight of 13.30 lb/ft or 15.50 lb/ft
• 4 in: Drill pipe ID of 3.340 in or 3.240 in and a weight of 14.00 lb/ft or 15.70 lb/ft

Standards

• API 5DP E75, X95, G105, S135
• Upset style: IU, EU, IEU
• Connection: NC26 – NC50, 5 1/2FH, 6 5/8FH
• Internal coating: TK34, TC2000, Arnco 100XT, 200XT, 300XT

Manufacturing Process

The production of API 5DP drill pipes follows a stringent process to ensure quality and performance:

1. Material Selection – High-grade alloy steel is selected for optimal strength and durability.
2. Pipe Forming – The steel is formed into seamless or welded pipes depending on requirements.
3. Heat Treatment – The pipes undergo quenching and tempering to enhance mechanical properties.
4. Non-Destructive Testing (NDT) – Pipes are tested for defects using ultrasonic, magnetic, or radiographic methods.
5. Upsetting & Threading – Ends of the pipe are heat-treated and threaded for tool joint connections.
6. Hardbanding & Coating – To improve resistance to wear and corrosion, a protective layer is added.
7. Final Inspection & Certification – Pipes undergo dimensional checks, hydrostatic tests, and API certification before delivery.

Benefits

1. Enhanced Strength & Durability – Withstands extreme stress and high torque drilling operations.
2. Uniform Quality & Standards – Adheres to API 5DP specifications for consistency and reliability.
3. Extended Service Life – Coatings and hardbanding improve wear resistance, reducing replacement costs.
4. High Efficiency – Enables deep and complex drilling with high precision.
5. Cost-Effective – Reduced downtime and extended pipe lifespan lead to overall cost savings.

Applications

• Oil & Gas Exploration – Used in both onshore and offshore drilling rigs.
• Geothermal Drilling – Suitable for extreme temperatures in geothermal well drilling.
• Water Well Drilling – Used in deep borehole water extraction.
• Mining Exploration – Applied in drilling for mineral exploration.
