What is ASTM A106?

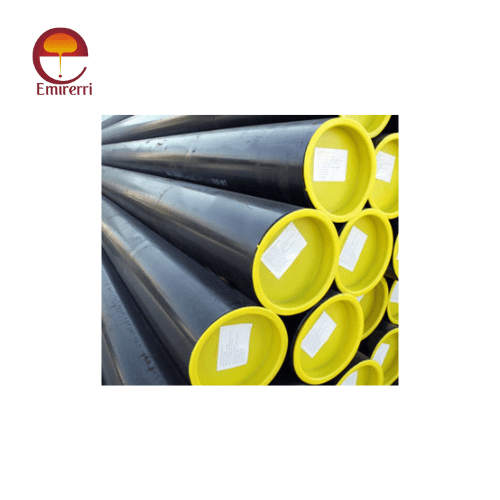

ASTM A106 is a widely used specification for seamless carbon steel pipes intended for high-temperature applications. It is primarily used in industries such as oil and gas, power plants, refineries, and petrochemical plants where fluids and gases are transported under high pressure and elevated temperatures. ASTM A106 specification covers seamless carbon steel pipes for high-temperature services. These pipes are suitable for bending, flanging, and similar forming operations, as well as welding. They are commonly used in industrial piping systems, boilers, heat exchangers, and pressure vessels due to their strength, durability, and corrosion resistance.
Dimensional Specifications
- Grades B and C
- NPS ¼ inch to 36 inch OD, 10mm to 1200mm OD
- Schedules 20 through XXH
- Wall Thickness up to 5.500″ Thick
ASTM A106 Chemical Composition
| Element | Grade A | Grade B | Grade C |
|---|---|---|---|
| Carbon (C) | 0.25 max | 0.30 max | 0.35 max |
| Manganese (Mn) | 0.27-0.93 | 0.29-1.06 | 0.29-1.06 |
| Phosphorus (P) | 0.035 max | 0.035 max | 0.035 max |
| Sulfur (S) | 0.035 max | 0.035 max | 0.035 max |
| Silicon (Si) | 0.10 min | 0.10 min | 0.10 min |
ASTM A106 Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| A | 330 min | 205 min | 35 min |
| B | 415 min | 240 min | 30 min |
| C | 485 min | 275 min | 30 min |
Manufacturing Process of ASTM A106 Pipes
The manufacturing of ASTM A106 seamless pipes follows strict guidelines to ensure high-quality production. The process includes:
- Billet Selection: High-quality carbon steel billets are chosen.
- Heating: The billets are heated to the required temperature.
- Piercing: The heated billet is pierced to form a hollow shell.
- Rolling and Sizing: The shell is rolled and sized into the required dimensions.
- Heat Treatment: Pipes are heat-treated to enhance mechanical properties.
- Testing and Inspection: Pipes undergo various tests to ensure compliance with ASTM A106 standards.
Comparison: ASTM A106 vs. Other Standards
| Property | ASTM A106 | ASTM A53 | API 5L |
| Type | Seamless | Seamless/Welded | Seamless/Welded |
| Temperature | High-Temperature | Low/Medium-Temperature | High-Pressure |
| Application | Industrial, Power, Petrochemical | Water, Gas, Steam | Oil, Gas, Pipeline |
Surface Finishing and Coatings
To enhance the durability and corrosion resistance of ASTM A106 pipes, various surface treatments and coatings are applied:
- Black Coating: Protects against oxidation.
- Galvanization: Provides corrosion resistance.
- Varnish Coating: Offers mild protection.
- Epoxy Coating: Used in highly corrosive environments.
Conclusion
ASTM A106 seamless pipes are essential components in high-temperature and high-pressure applications across industries such as oil and gas, power generation, and refineries. These pipes, available in grades A, B, and C, are manufactured to ASTM standards, ensuring superior performance, reliability, and durability under demanding conditions.
