API 5l X46 Pipe

Description

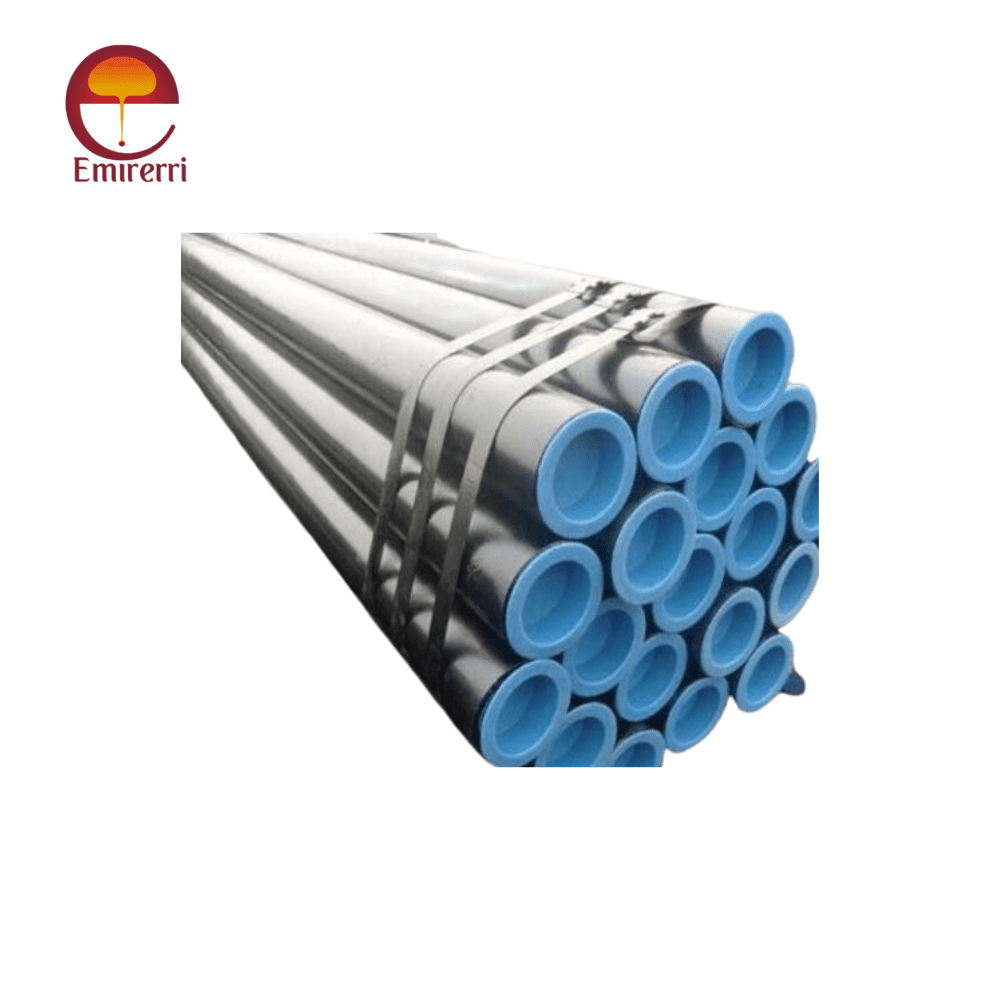

Product Description API 5l X46 Pipe

The API 5L X46 Pipe is a high-quality, versatile product widely used in the oil and gas industry. This pipe is designed to meet the requirements of API (American Petroleum Institute) specifications, ensuring reliable performance under demanding conditions. Its robust construction and superior mechanical properties make it a preferred choice for the transportation of oil, gas, and water in both onshore and offshore pipelines. These pipes are available in two product specifications: PSL1 and PSL2. While PSL1 is the normal quality level, PSL2 provides improved chemical and mechanical qualities for more demanding applications.

API 5L X46 pipes are available in seamless and welded forms, offering flexibility for various project requirements. Seamless pipes are ideal for high-pressure applications, whereas welded pipes are more cost-effective for low- and medium-pressure uses. They also come in a range of dimensions, lengths, and coatings to suit diverse operational needs.

These pipes are known for their excellent resistance to corrosion, high temperature, and harsh environments, ensuring long-lasting performance. Common applications include natural gas pipelines, crude oil transport, and water distribution systems.

In addition to their technical advantages, API 5L X46 pipes comply with stringent international standards, making them a reliable and sustainable choice for global industries. Their versatility, durability, and high performance underline their importance in critical infrastructure projects.

API 5L X46 Pipe Dimensions

NPS (inches)	OD (inches)	Wall Thickness (inches)	Weight per foot (lbs)
1/2	0.840	0.109	0.85
3/4	1.050	0.113	1.13
1	1.315	0.133	1.68
1 1/4	1.660	0.140	2.27
1 1/2	1.900	0.145	2.72
2	2.375	0.154	3.65
2 1/2	2.875	0.203	5.79
3	3.500	0.216	7.58
3 1/2	4.000	0.226	9.10
4	4.500	0.237	10.79
5	5.563	0.258	14.62
6	6.625	0.280	18.99
8	8.625	0.322	28.55
10	10.750	0.365	40.48
12	12.750	0.406	53.52
14	14.000	0.438	63.28
16	16.000	0.500	84.36
18	18.000	0.562	107.36
20	20.000	0.593	127.95
22	22.000	0.625	148.36
24	24.000	0.688	179.46
26	26.000	0.750	213.72
28	28.000	0.812	251.24
30	30.000	0.875	291.76
32	32.000	0.938	336.84
34	34.000	1.000	384.89
36	36.000	1.062	436.91
40	40.000	1.125	530.59
42	42.000	1.188	594.18
48	48.000	1.250	754.82

Notes

• OD (Outside Diameter): Measured from the outer edges of the pipe.
• Wall Thickness (WT): Based on Schedule 40 for standard weights. Heavier or lighter schedules (e.g., SCH 10, SCH 80) are available.
• Weight per foot: Calculated approximately using the steel density of 490 lbs/ft³.

API 5l X46 Chemical Composition

Element	Maximum %
Carbon (C)	0.26
Manganese (Mn)	1.20
Phosphorus (P)	0.030
Sulfur (S)	0.030
Silicon (Si)	0.45
Nickel (Ni)	0.40
Chromium (Cr)	0.30
Copper (Cu)	0.40
Molybdenum (Mo)	0.15
Vanadium (V)	0.08
Niobium (Nb)	0.05
Titanium (Ti)	0.04

API 5l X46 Mechanical Properties

Property	Value
Yield Strength (YS)	Minimum 46,000 psi (317 MPa)
Tensile Strength (TS)	Minimum 63,100 psi (435 MPa)
Elongation	21% minimum in 2 inches (50 mm)
Charpy Impact Test	Varies by thickness and test temperature, typically around 27 J at 0°C
Hardness (Brinell)	Maximum 241 HBW
Modulus of Elasticity	200 GPa (29,000 ksi)
Poisson's Ratio	0.3
Reduction of Area	35% minimum
Fracture Toughness	High fracture toughness for use in high-pressure environments

API 5l X46 Properties

General Specifications:

• Standard: API 5L (Specification for Line Pipe)
• Grade: X46 (46,000 psi minimum yield strength)
• Type: Seamless (SMLS) / Welded (ERW, LSAW, SSAW)
• Application: Oil and gas transportation, water systems, and structural purposes.

Dimensional Specifications:

• Outside Diameter (OD):
  • Seamless: 1/2″ – 24″
  • Welded: Up to 100″
• Wall Thickness (WT): SCH 10 to SCH XXS or custom thicknesses.
• Length: Single Random (SRL), Double Random (DRL), or Custom.

Manufacturing Process:

• Seamless: Hot finished or cold drawn.
• Welded: Electric Resistance Welding (ERW), Submerged Arc Welding (SAW), or Longitudinal Weld.

Coating and Finishes:

• Coatings Available:
  • Fusion Bonded Epoxy (FBE)
  • 3-Layer Polyethylene (3LPE)
  • Coal Tar Epoxy
• End Finishes:
  • Plain End (PE)
  • Beveled End (BE)
  • Threaded and Coupled (T&C)

Testing and Certification:

• Hydrostatic Testing
• Ultrasonic Testing
• Radiography Testing (RT)
• Third-Party Inspection (TPI) Reports
• Mill Test Certificate (MTC) in accordance with EN 10204 3.1/3.2

Application

• Oil and Gas Transportation
• Water Distribution Systems
• Petrochemical Industry
• Infrastructure Development
• Slurry and Waste Management
• High-Temperature Applications
