Product Description

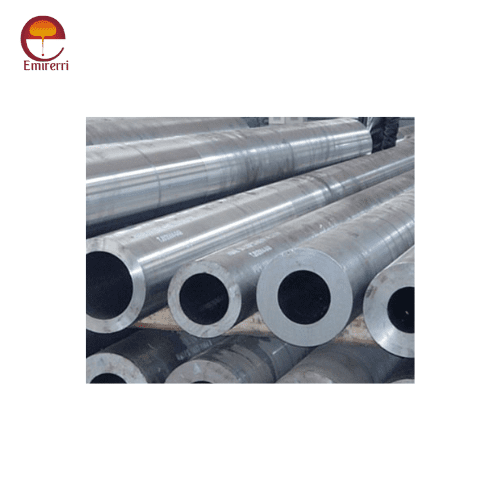

ASTM A213 T5Seamless Tube is a high-performance alloy steel tube designed for high-temperature applications. Manufactured to ASTM A213 / ASME SA213 standards, these tubes are perfect for use in heat exchangers, boilers, superheaters, and condensers. With their seamless construction, ASTM A213 T5 tubes provide excellent strength and reliability, making them suitable for demanding industrial environments.
Chemical Composition ASTM A213 T5
Element | Composition (%) |
Carbon (C) | 0.15 max |
Manganese (Mn) | 0.30 - 0.60 |
Phosphorus (P) | 0.025 max |
Sulfur (S) | 0.025 max |
Silicon (Si) | 0.50 max |
Chromium (Cr) | 4.00 - 6.00 |
Molybdenum (Mo) | 0.45 - 0.65 |
Mechanical Properties ASTM A213 T5
Property | Value |
Tensile Strength | ≥415 MPa |
Yield Strength | ≥205 MPa |
Elongation | ≥30% |
Physical Properties ASTM A213 T5
Property | Value |
Density | 7.86 g/cm³ |
Melting Point | 1425 - 1510 °C |
Thermal Conductivity | 35.0 W/m·K at 20°C |
Modulus of Elasticity | 190 - 210 GPa |
Specific Heat | 460 J/kg·K at 20°C |
Coefficient of Thermal Expansion | 12.3 µm/m°C (20-100°C) |
Tensile Strength | ≥ 415 MPa |
Yield Strength | ≥ 205 MPa |
Elongation | ≥ 20% |
Seamless Tube Sizes
Nominal Size (inches) | Outside Diameter (OD) (mm) | Wall Thickness (mm) | Inside Diameter (ID) (mm) |
1/8 | 10.3 | 1.24 - 2.41 | 5.48 - 7.82 |
1/4 | 13.7 | 1.65 - 2.87 | 7.96 - 10.4 |
3/8 | 17.1 | 1.65 - 3.2 | 10.7 - 13.8 |
1/2 | 21.3 | 2.11 - 3.73 | 13.8 - 17.1 |
3/4 | 26.7 | 2.11 - 3.91 | 18.9 - 22.5 |
1 | 33.4 | 2.77 - 4.55 | 24.3 - 27.8 |
1 1/4 | 42.2 | 2.77 - 4.85 | 32.5 - 36.7 |
1 1/2 | 48.3 | 2.77 - 5.08 | 38.1 - 42.8 |
2 | 60.3 | 2.77 - 5.54 | 49.2 - 54.8 |
2 1/2 | 73.0 | 3.05 - 7.01 | 59.0 - 66.9 |
3 | 88.9 | 3.05 - 7.62 | 73.6 - 82.8 |
4 | 114.3 | 3.05 - 8.56 | 97.2 - 108.2 |
5 | 141.3 | 3.40 - 9.53 | 122.2 - 134.5 |
6 | 168.3 | 3.76 - 10.97 | 146.4 - 160.7 |
8 | 219.1 | 4.78 - 12.70 | 193.7 - 209.6 |
10 | 273.0 | 5.54 - 15.09 | 242.8 - 261.9 |
12 | 323.8 | 6.35 - 17.48 | 289.0 - 311.1 |
14 | 355.6 | 7.92 - 19.05 | 317.5 - 339.8 |
16 | 406.4 | 7.92 - 21.44 | 363.5 - 390.5 |
Conclusion
The ASTM A213 T5 Seamless Tube is a top-tier solution for high-temperature and high-pressure applications in various industries. Its precise chemical composition and robust mechanical properties ensure reliability and efficiency, making it ideal for heat exchangers, boilers, superheaters, and condensers. The tube’s seamless construction enhances its strength and durability, and it meets rigorous quality standards and certifications. Available in various sizes and customizable options, the ASTM A213 T5 Seamless Tube is a dependable choice for critical industrial applications.
