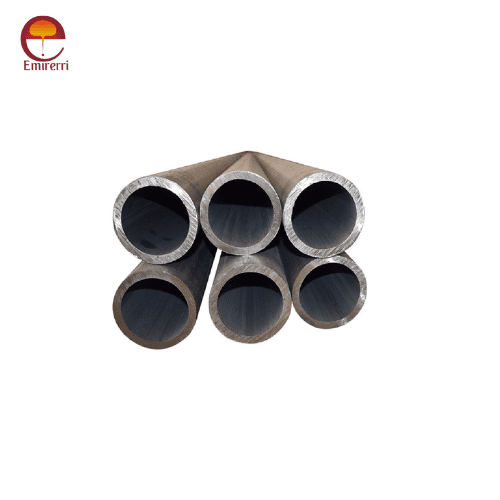

ASTM A213 T5c Seamless Tube

Product NameASTM A213 T5c Seamless Tube
StandardASTM A213 / ASME SA213
Material GradeT5c
Nominal Tube Size1/8” to 5”
Wall Thickness1.2mm to 12mm
LengthSingle Random Length (SRL), Double Random Length (DRL), and Custom Cut Lengths
Manufacturing ProcessCold Drawn, Cold Rolled
CertificationISO 9001, API 5L, CE
Categories: ,


Product Description

The ASTM A213 T5c Seamless Tube tube is designed for use in high-temperature services, such as boilers, superheaters, and heat exchangers. Manufactured to the stringent standards of ASTM A213, this tube offers superior performance, durability, and resistance to corrosion and oxidation in high-temperature environments.

Chemical Composition ASTM A213 T5c Seamless Tube

ElementComposition (%)
Carbon (C)0.08 - 0.12
Manganese (Mn)0.30 - 0.60
Phosphorus (P)≤ 0.025
Sulfur (S)≤ 0.025
Silicon (Si)0.50 - 1.00
Chromium (Cr)4.00 - 6.00
Molybdenum (Mo)0.45 - 0.65

Mechanical Properties ASTM A213 T5c Seamless Tube

Tensile Strength, min (MPa)415
Yield Strength, min (MPa)220
Elongation, min (%)30
Hardness, max (HRB)85


The ASTM A213 T5c seamless tube is an essential component for high-temperature applications, offering superior performance and reliability. With its specific chemical composition and excellent mechanical properties, it ensures durability, corrosion resistance, and strength in demanding environments such as boilers, superheaters, and heat exchangers.
