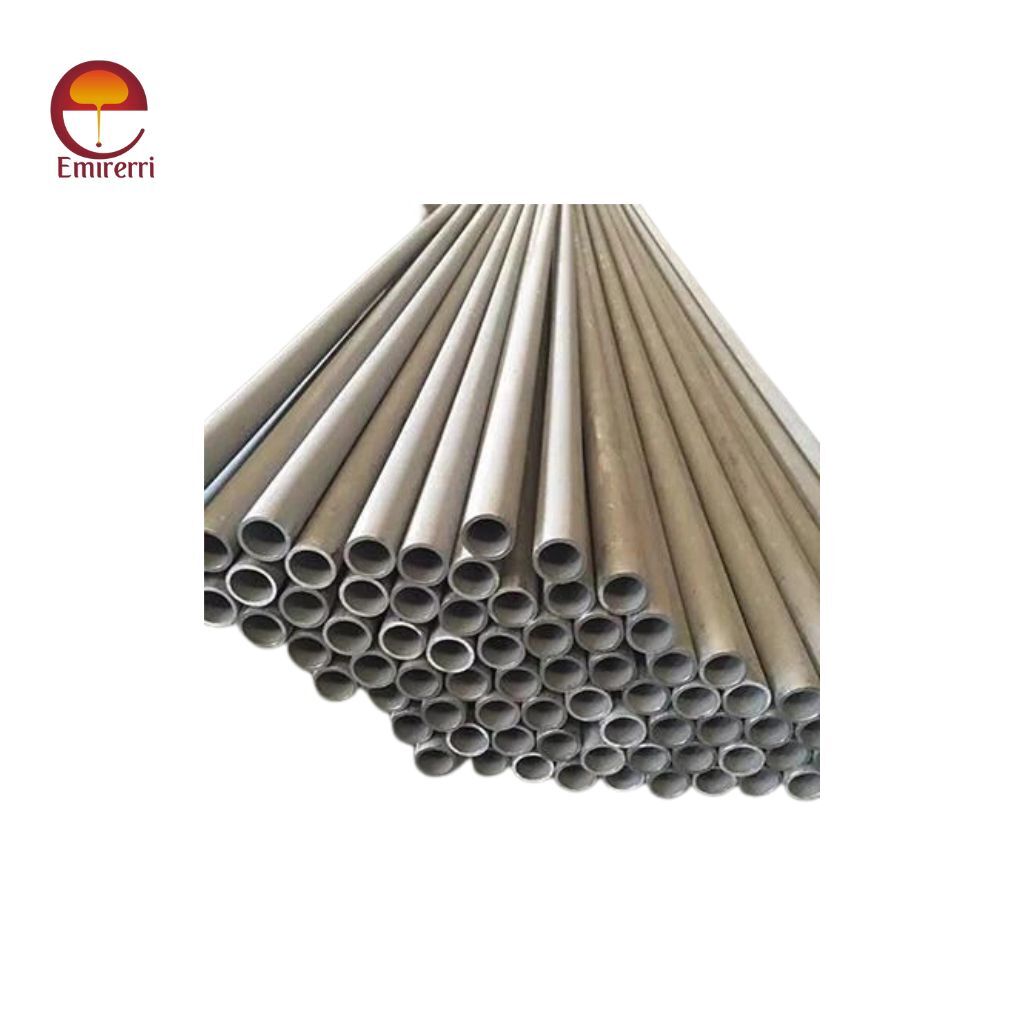

ASTM A312 Stainless Steel Pipe

Description

What is ASTM A312 Stainless Steel Pipe?

ASTM A312 specification covers pipes that are manufactured through seamless, straight-seam welded, or heavily cold worked welded processes. These pipes are designed to withstand high temperatures and corrosive environments, making them suitable for industries such as chemical processing, oil and gas, and power generation. The specification includes several grades, notably TP304, TP304L, TP316, TP316L, TP321, TP321H, TP347, and TP347H, each with distinct chemical compositions and mechanical properties.

ASTM A312 TP304, TP316 Chemical Composition

The chemical composition of the stainless steel grades under ASTM A312 is critical as it determines the material’s corrosion resistance and mechanical properties. For instance, TP304 and TP316 are among the most commonly used grades:

• TP304:
  1. Carbon: 0.08% max
  2. Manganese: 2.00% max
  3. Phosphorus: 0.045% max
  4. Sulfur: 0.030% max
  5. Silicon: 1.00% max
  6. Chromium: 18.0–20.0%
  7. Nickel: 8.0–11.0%
• TP316:
  1. Carbon: 0.08% max
  2. Manganese: 2.00% max
  3. Phosphorus: 0.045% max
  4. Sulfur: 0.030% max
  5. Silicon: 1.00% max
  6. Chromium: 16.0–18.0%
  7. Nickel: 10.0–14.0%
  8. Molybdenum: 2.00–3.00%

The addition of elements like molybdenum in TP316 enhances its corrosion resistance, especially against chlorides and other industrial solvents.

ASTM A312 TP304, TP316 Mechanical Properties

ASTM A312 specifies the mechanical properties that the stainless steel pipes must meet to ensure their suitability for high-temperature and corrosive applications. The key mechanical properties include tensile strength and yield strength.

• TP304:
  1. Tensile Strength: 75,000 psi (515 MPa) min
  2. Yield Strength: 30,000 psi (205 MPa) min
• TP316:
  1. Tensile Strength: 75,000 psi (515 MPa) min
  2. Yield Strength: 30,000 psi (205 MPa) min

These mechanical properties ensure that the pipes can withstand the operational stresses encountered in various industrial applications.

ASTM A312 Stainless Steel Pipe Dimensions and Tolerances

The dimensions and tolerances of stainless steel pipes under ASTM A312 are standardized to ensure compatibility and interchangeability in piping systems. The specification references ASME B36.19M for the dimensions of welded and seamless wrought stainless steel pipes.

• Outside Diameter (OD) Tolerances:
  1. NPS 1/8 to 1½: ±0.015 inches
  2. NPS 2 to 4: ±0.031 inches
  3. NPS 5 to 8: ±0.062 inches
  4. NPS 10 to 18: ±0.093 inches
  5. NPS 20 to 24: ±0.125 inches

• Wall Thickness Tolerances:
  1. For NPS 1/8 to 2½: +20% / -12.5%
  2. For NPS 3 to 18 with t/D up to 5%: +22.5% / -12.5%
  3. For NPS 3 to 18 with t/D over 5%: +15% / -12.5%
  4. For NPS 20 and larger, welded: +17.5% / -12.5%
  5. For NPS 20 and larger, seamless: +22.5% / -12.5%

These tolerances ensure that the pipes fit precisely in assemblies and maintain the integrity of the piping systems.

Manufacturing Processes

ASTM A312 allows for several manufacturing processes to produce stainless steel pipes:

1. Seamless (SMLS): Manufactured by extruding the metal to the desired length; hence, they do not have a welded seam.

2. Welded (WLD): Produced by forming a flat steel strip into a cylindrical shape and welding the seam without adding filler metal.

3. Heavily Cold Worked (HCW): Involves significant deformation of the welded pipe through cold working processes to achieve desired mechanical properties.

Each manufacturing process has its advantages, and the choice depends on the specific requirements of the application, such as pressure ratings, corrosion resistance, and mechanical properties.

Heat Treatment

All pipes under ASTM A312 must be furnished in the heat-treated condition. The heat treatment involves heating the pipes to a minimum temperature of 1,900°F (1,040°C) and then quenching in water or rapidly cooling by other means. This process ensures the desired mechanical

Applications

• Oil & Gas Industry
• Chemical & Petrochemical Industry
• Power Generation
• Food & Beverage Industry
• Pharmaceutical Industry
• Water Treatment & Desalination Plants
• Construction & Architecture
• Automotive & Aerospace
