Description

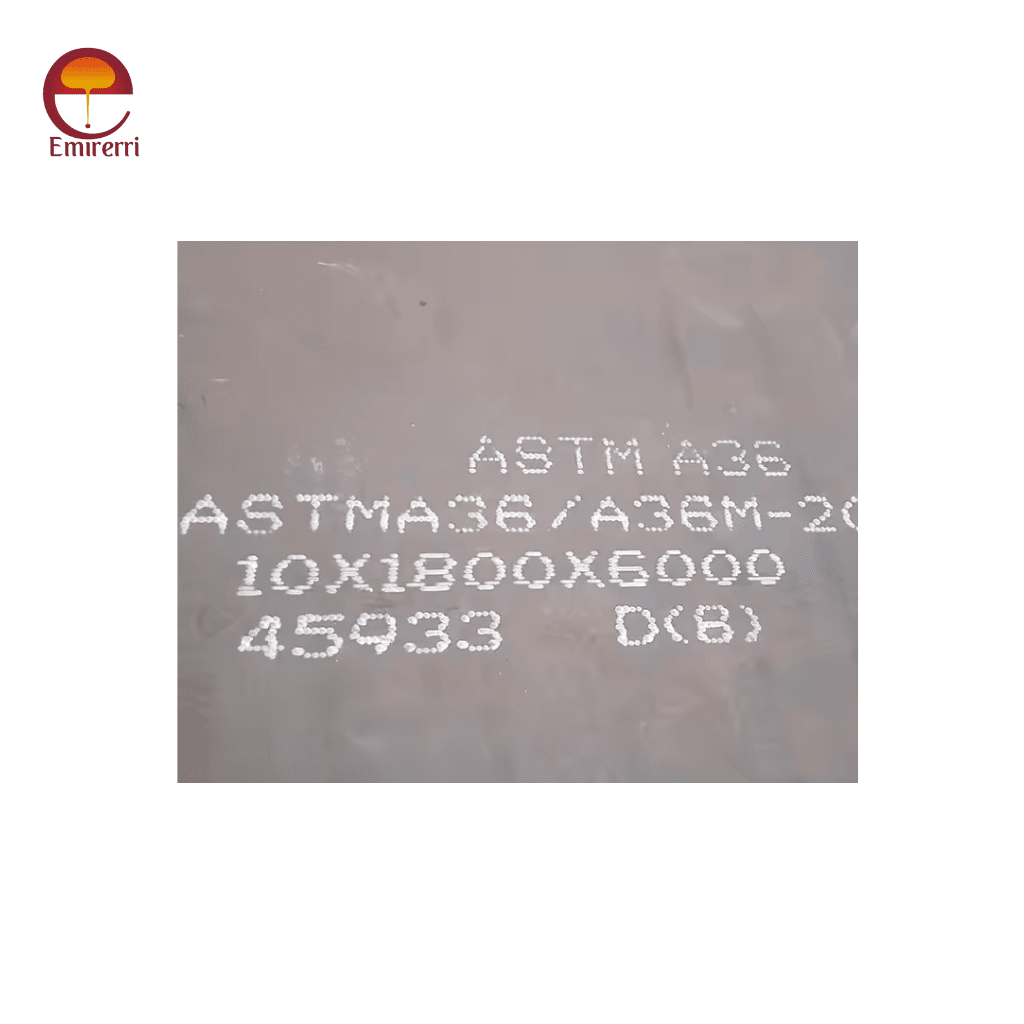

What is ASTM A36 Steel Plate?
ASTM A36 steel plates are low-carbon structural steel plates commonly used in a wide range of structural applications. The A36 Material Specification developed by ASTM International specifies the mechanical properties and chemical composition required for structural steel. This low-carbon steel plate is commonly utilized in construction, bridges, shipbuilding, oil and gas industries, and general fabrication.
ASTM A36 Steel Plate Dimensions
- Width: 1000–4500 mm
- Length: 3000–18000 mm
- Thickness: 5–150 mm
ASTM A36 Chemical Composition
| Element | Composition (%) |
| Carbon (C) | ≤ 0.26 |
| Manganese (Mn) | 0.60 – 0.90 |
| Phosphorus (P) | ≤ 0.04 |
| Sulfur (S) | ≤ 0.05 |
| Silicon (Si) | ≤ 0.40 |
| Iron (Fe) | Balance (to 100%) |
ASTM A36 Mechanical Properties
| Property | Value |
| Yield Strength (min) | 36,000 psi (250 MPa) |
| Ultimate Tensile Strength (min) | 58,000–80,000 psi (400–550 MPa) |
| Elongation (min) | 20% in 8 in (200 mm) |
| Reduction of Area (min) | 50% |
| Hardness (Brinell) | ≤ 143 HB |
| Modulus of Elasticity | 29,000,000 psi (200 GPa) |
ASTM A36 Physical Properties
| Property | Value |
| Density | 490 lb/ft³ (7,850 kg/m³) |
| Melting Point | 2,500°F (1,370°C) |
| Thermal Conductivity | 43 W/m·K (at 100 °C) |
| Electrical Resistivity | 0.000015 μΩ·m |
| Modulus of Elasticity | 29,000,000 psi (200 GPa) |
| Poisson's Ratio | 0.26 - 0.29 |
| Hardness | Approximately 120 HB (Brinell) |
Equivalent Grade
| Standard |
Equivalent Grade |
| EN |
S235JR (EN 10025-2) |
| DIN |
St37-2 (DIN 17100) |
| ISO |
E235B |
| JIS |
SS400 (JIS G3101) |
| GB |
Q235B (GB/T 700) |
| BS |
43A (BS 4360) |
| IS |
IS 2062 E250A (Indian Standard) |
ASTM A36 Steel Plate Weight
| ASTM |
Thickness (mm) |
Weight (kg/m) |
| ASTM A36 |
3 mm |
23.55 kg |
| 4 mm |
31.4 kg |
| 5 mm |
39.25 kg |
| 6 mm |
47.1 kg |
| 8 mm |
62.8 kg |
| 10 mm |
78.5 kg |
| 12 mm |
94.2 kg |
| 16 mm |
125.6 kg |
| 20 mm |
157 kg |
| 22 mm |
172.7 kg |
| 25 mm |
196.25 kg |
| 28 mm |
219.8 kg |
| 32 mm |
251.2 kg |
| 36 mm |
282.6 kg |
| 40 mm |
314 kg |
| 45 mm |
353.25 kg |
| 50 mm |
392.5 kg |
| 55 mm |
431.75 kg |
| 60 mm |
471 kg |
| 65 mm |
510 kg |
| 70 mm |
549.5 kg |
| 75 mm |
588.75 kg |
| 80 mm |
628 kg |
| 90 mm |
706.5 kg |
| 100 mm |
785 kg |
Applications
- Structural beams and columns in construction
- Heavy equipment manufacturing
- Bridges and infrastructure projects
- General fabrication and structural applications
