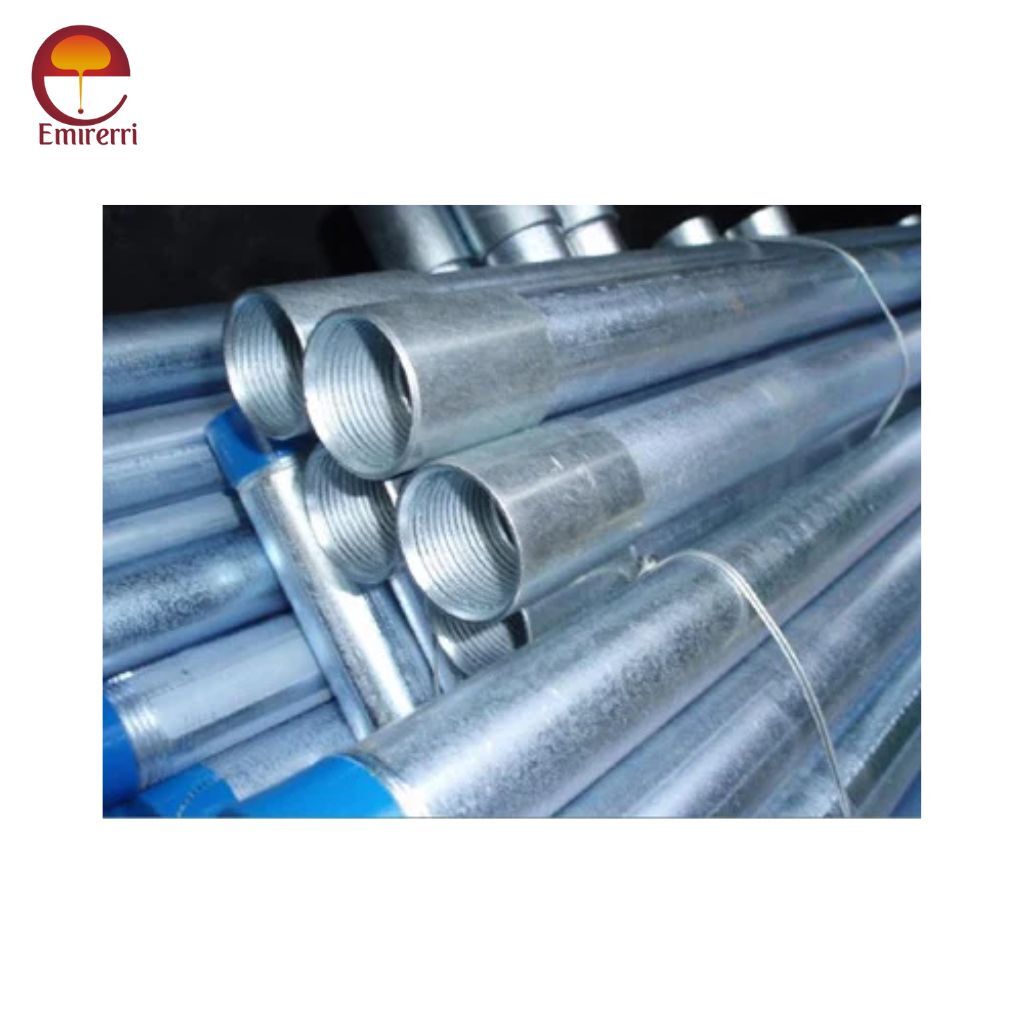

DIN 2444 Hot-Dip Galvanized Steel Tubes
DIN 2444 is a German standard that specifies the requirements for hot-dip galvanized steel tubes. These tubes are manufactured using a hot-dip galvanizing process to provide enhanced corrosion resistance, making them ideal for applications where longevity and durability in harsh environments are critical. Primarily, DIN 2444 tubes are used in scaffolding, structural applications, construction frameworks, and general-purpose engineering.
At Emirerri Steel, we offer a complete range of DIN 2444 hot-dip galvanized tubes manufactured to meet stringent quality standards. Our products are trusted across industries for their robustness, superior corrosion resistance, and precision in dimension and mechanical properties.
Key Features
- Corrosion Resistance: Galvanization provides a strong barrier against rust and environmental degradation.
- High Durability: The zinc coating ensures a long service life even in outdoor and industrial settings.
- Structural Integrity: High strength-to-weight ratio suitable for load-bearing structures and supports.
- Smooth Surface Finish: Suitable for painting or further coating applications.
- Compliance with German Norms: Manufactured in accordance with the specifications laid out in the DIN 2444 standard.
DIN 2444 Manufacturing Process
DIN 2444 tubes are typically manufactured using low-carbon steel. The standard outlines the production of welded steel tubes that are hot-dip galvanized inside and out. Here’s a step-by-step outline of the manufacturing process:
- Tube Forming: Cold-rolled or hot-rolled steel is shaped into tubular form and longitudinally welded.
- Welding Process: Electric resistance welding (ERW) is commonly used to join the edges.
- Cleaning and Pickling: Prior to galvanizing, tubes are cleaned and pickled to get rid of surface impurities.
- Hot-Dip Galvanizing: The cleaned tubes are immersed in a bath of molten zinc, coating both inner and outer surfaces.
- Cooling and Inspection: Tubes are cooled, straightened, and inspected for surface finish, dimensional accuracy, and coating thickness.
Common Steel Grades Used in DIN 2444 Tubes
| Steel Grade | Old DIN Equivalent | Typical Yield Strength (MPa) | Tensile Strength (MPa) | Applications |
|---|---|---|---|---|
| St 37-2 | DIN 17100 | ≥ 235 | 340 – 470 | General structures, scaffolding |
| St 44-2 | DIN 17100 | ≥ 275 | 420 – 540 | Heavy-duty supports, construction |
| St 52-3 | DIN 17100 | ≥ 355 | 490 – 630 | High-load structures, industrial |
| S235JR | EN 10025-2 | ≥ 235 | 360 – 510 | General use, equivalent to St 37-2 |
| S275JR | EN 10025-2 | ≥ 275 | 410 – 560 | Moderate strength structures |
| S355JR | EN 10025-2 | ≥ 355 | 470 – 630 | High strength applications |
Advantages
- Extended Service Life: Hot-dip galvanization significantly extends the life of the steel pipe.
- Maintenance-Free Performance: Minimal maintenance required compared to painted or untreated steel.
- Eco-Friendly: Zinc coating is recyclable and doesn’t emit harmful substances.
- Cost-Effective: Long-term savings due to reduced replacement and repair costs.
- Ready-to-Use: No need for additional painting or surface treatment.
Applications
- Scaffolding Systems
- Construction & Infrastructure
- Greenhouses & Agricultural Structures
- General Engineering & Fabrication
- Furniture & Design Elements
