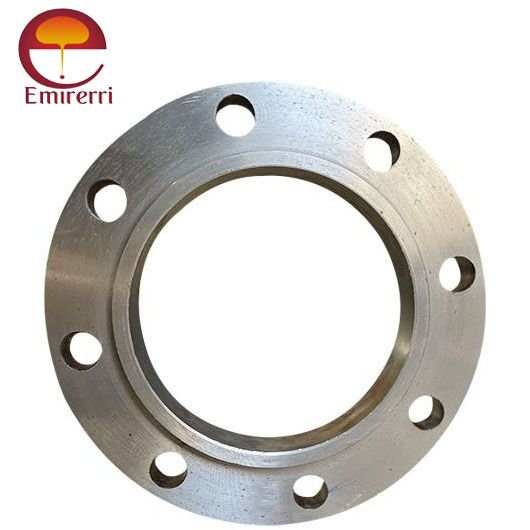

DIN 2576 PN10 Slip On Flange

Description

DIN 2576 PN10 Slip On Flange

DIN 2576 PN10 Slip On Flange is designed to connect pipes in low-pressure systems, offering a reliable and cost-effective solution for a variety of industrial applications. These flanges are welded onto the pipe and are ideal for systems with a maximum pressure of 10 bar. Manufactured to meet the DIN 2576 standard, they offer excellent durability and are commonly used in water, gas, and heating systems.

DIN 2576 PN10 Slip On Flange Dimensions

DN	Pipe OD, A		Outside Diamete, D	Diameter of Bolt Circle, K	Dia of Bolt Hole, L	No. of bolt	Size of Bolt	Flange thickness, C	Diameter of Raised Face, d	Height of Raised Face, f1	Bore diameter,B
	Series Ⅰ	Series Ⅱ									Series Ⅰ	Series Ⅱ
10	17.2	14	90	60	14	4	M12	14	40	2	18	15
15	21.3	18	95	65	14	4	M12	14	45	2	22	19
20	26.9	25	105	75	14	4	M12	16	58	2	27.5	26
25	33.7	32	115	85	14	4	M12	16	68	2	34.5	33
32	42.4	38	140	100	18	4	M16	18	78	2	43.5	39
40	48.3	45	150	110	18	4	M16	18	88	3	49.5	46
50	60.3	57	165	125	18	4	M16	20	102	3	61.5	59
65	76.1	79	185	145	18	8	M16	20	122	3	77.5	78
80	88.9	89	200	160	18	8	M16	20	138	3	90.5	91
100	114.3	108	220	180	18	8	M16	22	158	3	116	110
125	139.7	133	250	210	18	8	M16	22	188	3	141.5	135
150	168.3	159	285	240	22	8	M20	24	212	3	170.5	161
200	219.1	219	340	295	22	8	M20	24	268	3	221.5	222
250	273	273	395	350	22	12	M20	26	320	3	276.5	276
300	323.9	325	445	400	22	12	M20	26	370	4	327.5	328
350	355.6	377	505	460	22	16	M20	30	430	4	359.5	380
400	406.4	426	565	515	26	16	M24	32	482	4	411	430
450	457	480	615	565	26	20	M24	36	532	4	462	484
500	508	530	670	620	26	20	M24	38	585	4	513.5	534
600	610	630	780	725	30	20	M27	42	685	5	616.5	634
700	711	720	895	840	30	24	M27	50	800	5	715	724
800	813	820	1015	950	33	24	M30	56	905	5	817	824
900	914	920	1115	1050	33	28	M30	62	1005	5	918	924
1000	1016	1020	1230	1160	36	28	M33	70	1110	5	1020	1024
1200	1219	1220	1455	1380	39	32	M36	83	1330	5	1223	1224
1400	1422	1420	1675	1590	42	36	M39	90	1535	5	1426	1424
1600	1626	1620	1915	1820	48	40	M45	100	1760	5	1630	1624
1800	1829	1820	2115	2020	48	44	M45	110	1960	5	1833	1824
2000	2032	2020	2325	2230	48	48	M45	120	2170	5	2036	2024
											2036	2024

Slip on Flange Weight Chart

Flange Size (inches)	Class 150 (lbs)	Class 300 (lbs)	Class 400 (lbs)	Class 600 (lbs)	Class 900 (lbs)	Class 1500 (lbs)	Class 2500 (lbs)
½	1	2	2	6	6	6	8
¾	2	3	3	6	6	6	9
1	2	3.5	4	7.5	8	8	13
1¼	3	4.5	5	10	10	10	20
1½	3	6.5	7	14	14	14	28
2	5	8	9	22	25	25	42
2½	8	12	13	31	36	36	52
3	9	15	16	36	48	48	94
3½	11	21	21	53	73	73	146
4	13	26	37	83	132	132	244
5	15	31	63	110	165	165	378
6	19	44	80	172	260	260	576
8	30	67	115	245	436	436	1068
10	43	91	177	326	667	667	1608
12	64	130	215	400	940	940	-
14	90	191	259	459	1250	1250	-
16	106	253	366	647	1625	1625	-
18	130	310	476	792	2050	2050	-
20	165	378	612	1480	2825	2825	-
22	185	405	590	-	-	-	-
24	220	539	876	-	-	-	-

Material:

• Carbon Steel: ASTM A105, ASTM A350 LF2.
• Stainless Steel: ASTM A182 F304, F316.
• Alloy Steel: ASTM A182 F11, F22

Advantages:

• Cost-Effective: Lower material and labor costs due to ease of installation.
• Versatile: Can be used in low-pressure applications across several industries.
• Durable: Built to withstand moderate pressures and resist wear over time.
