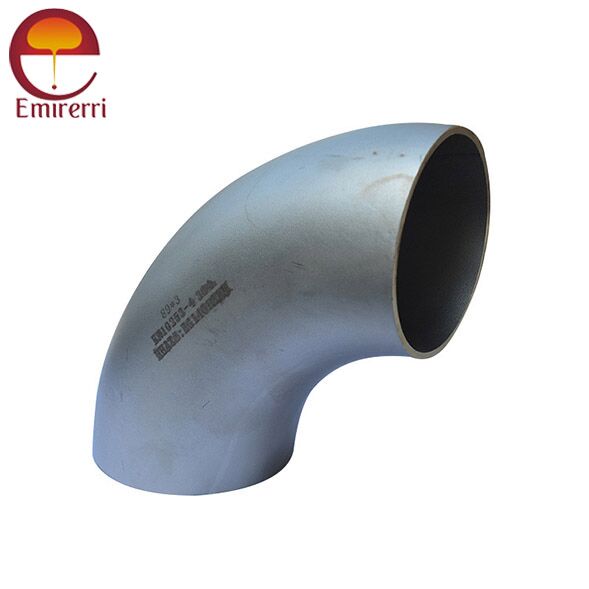

Product Description Elbow DIN 2605
DIN 2605 is a German standard for pipe fittings, specifically for elbows, used to connect pipes at various angles. It specifies different types of elbows based on their design and application.
Here’s a breakdown of the three types of elbows:
- DIN2605 Elbow Type 1 – Short Radius Elbow (SR):
- This type has a smaller radius and is used in situations where space is limited. The center-to-face dimension of a short radius elbow is approximately equal to the nominal pipe diameter.
- Commonly used in applications where the space for piping is constrained.
- DIN2605 Elbow Type 2 – Long Radius Elbow (LR):
- This elbow type has a larger radius, usually 1.5 times the nominal pipe diameter. It provides smoother flow and less turbulence, making it suitable for high-pressure systems or when reduced friction loss is important.
- It’s the most commonly used elbow type in industrial piping systems.
- DIN2605 Elbow Type 3 – Reducing Elbow:
- This type is used when there is a need to connect pipes of different diameters. It allows a smooth transition between pipes with varying sizes, ensuring that the flow remains stable.
- Often used in systems where the pipe size is being reduced or enlarged at specific points.
DIN 2605 Elbow Dimension
DIN 2605 Elbow Type 1 (Short Radius Elbow)
| Nominal Size (DN) | Outside Diameter (OD) | Wall Thickness (t) | Radius (R) | Angle (°) |
|---|---|---|---|---|
| DN 15 | 21.3 | 2.0 | 32 | 90 |
| DN 20 | 26.9 | 2.3 | 38 | 90 |
| DN 25 | 33.7 | 2.3 | 42 | 90 |
| DN 40 | 48.3 | 3.2 | 64 | 90 |
| DN 50 | 60.3 | 3.2 | 76 | 90 |
| DN 65 | 76.1 | 3.6 | 102 | 90 |
| DN 80 | 88.9 | 4.0 | 114 | 90 |
| DN 100 | 114.3 | 4.5 | 152 | 90 |
| DN 150 | 168.3 | 6.3 | 229 | 90 |
| DN 200 | 219.1 | 7.1 | 305 | 90 |
DIN 2605 Elbow Type 2 (Long Radius Elbow)
| Nominal Size (DN) | Outside Diameter (OD) | Wall Thickness (t) | Radius (R) | Angle (°) |
|---|---|---|---|---|
| DN 15 | 21.3 | 2.0 | 48 | 90 |
| DN 20 | 26.9 | 2.3 | 58 | 90 |
| DN 25 | 33.7 | 2.3 | 63 | 90 |
| DN 40 | 48.3 | 3.2 | 76 | 90 |
| DN 50 | 60.3 | 3.2 | 90 | 90 |
| DN 65 | 76.1 | 3.6 | 120 | 90 |
| DN 80 | 88.9 | 4.0 | 140 | 90 |
| DN 100 | 114.3 | 4.5 | 180 | 90 |
| DN 150 | 168.3 | 6.3 | 229 | 90 |
| DN 200 | 219.1 | 7.1 | 305 | 90 |
DIN 2605 Elbow Type 3 (Reducing Elbow)
| Nominal Size (DN) | Outside Diameter (OD) | Wall Thickness (t) | Radius (R) | Angle (°) |
|---|---|---|---|---|
| DN 20 to DN 25 | 26.9 - 33.7 | 2.3 | 38 | 90 |
| DN 40 to DN 50 | 48.3 - 60.3 | 3.2 | 64 | 90 |
| DN 65 to DN 80 | 76.1 - 88.9 | 3.6 | 102 | 90 |
| DN 100 to DN 150 | 114.3 - 168.3 | 4.5 | 152 | 90 |
| DN 200 to DN 250 | 219.1 - 273.0 | 7.1 | 229 | 90 |
DIN2605 Elbow Weight Chart
45-degree Elbow Weight Chart (in lbs)
| Nominal Pipe Size (NPS) | Schedule 40 | Schedule 80 | Schedule 160 |
|---|---|---|---|
| 1/2" | 0.6 | 0.9 | 1.3 |
| 3/4" | 0.8 | 1.2 | 1.7 |
| 1" | 1.1 | 1.6 | 2.2 |
| 1 1/4" | 1.4 | 2.1 | 3.0 |
| 1 1/2" | 1.8 | 2.7 | 3.7 |
| 2" | 2.6 | 4.0 | 5.5 |
| 2 1/2" | 4.1 | 6.2 | 8.4 |
| 3" | 5.7 | 8.6 | 11.5 |
| 4" | 8.6 | 12.7 | 17.0 |
| 5" | 11.3 | 17.0 | 22.7 |
| 6" | 14.5 | 21.8 | 29.5 |
| 8" | 20.5 | 30.7 | 41.0 |
| 10" | 28.0 | 42.0 | 56.0 |
| 12" | 36.8 | 55.2 | 73.5 |
| 14" | 48.3 | 72.4 | 96.5 |
| 16" | 60.5 | 90.7 | 120.5 |
| 18" | 74.4 | 111.6 | 148.0 |
| 20" | 89.9 | 134.9 | 179.5 |
| 24" | 114.0 | 171.0 | 228.0 |
| 30" | 162.0 | 243.0 | 324.0 |
| 36" | 212.0 | 318.0 | 424.0 |
| 42" | 274.0 | 411.0 | 548.0 |
| 48" | 352.0 | 528.0 | 704.0 |
90-degree Elbow Weight Chart (in lbs)
| Nominal Pipe Size (NPS) | Schedule 40 | Schedule 80 | Schedule 160 |
|---|---|---|---|
| 1/2" | 0.7 | 1.0 | 1.4 |
| 3/4" | 1.0 | 1.4 | 2.0 |
| 1" | 1.3 | 1.9 | 2.6 |
| 1 1/4" | 1.6 | 2.4 | 3.3 |
| 1 1/2" | 2.1 | 3.0 | 4.0 |
| 2" | 2.9 | 4.4 | 5.9 |
| 2 1/2" | 4.5 | 6.8 | 9.1 |
| 3" | 6.5 | 9.7 | 12.9 |
| 4" | 9.7 | 14.6 | 19.5 |
| 5" | 12.7 | 19.0 | 25.3 |
| 6" | 16.5 | 24.8 | 33.0 |
| 8" | 23.0 | 34.5 | 46.0 |
| 10" | 31.5 | 47.3 | 63.7 |
| 12" | 40.9 | 61.4 | 81.9 |
| 14" | 53.1 | 79.7 | 106.0 |
| 16" | 66.0 | 99.0 | 132.0 |
| 18" | 80.7 | 121.0 | 160.0 |
| 20" | 97.5 | 146.0 | 194.0 |
| 24" | 123.5 | 185.0 | 246.0 |
| 30" | 177.0 | 265.5 | 354.0 |
| 36" | 234.0 | 351.0 | 468.0 |
| 42" | 304.0 | 456.0 | 608.0 |
| 48" | 388.0 | 582.0 | 776.0 |
180 Degree Elbow Weight Chart (in lbs)
| Nominal Pipe Size (NPS) | Schedule 40 | Schedule 80 | Schedule 160 |
|---|---|---|---|
| 1/2" | 1.1 | 1.5 | 2.0 |
| 3/4" | 1.4 | 2.0 | 2.8 |
| 1" | 1.8 | 2.7 | 3.6 |
| 1 1/4" | 2.3 | 3.4 | 4.5 |
| 1 1/2" | 3.0 | 4.4 | 5.9 |
| 2" | 4.3 | 6.4 | 8.5 |
| 2 1/2" | 6.7 | 10.1 | 13.4 |
| 3" | 9.4 | 14.1 | 18.7 |
| 4" | 14.0 | 20.9 | 27.8 |
| 5" | 18.5 | 27.5 | 36.7 |
| 6" | 24.0 | 35.8 | 47.8 |
| 8" | 33.0 | 49.5 | 66.0 |
| 10" | 44.5 | 66.8 | 89.0 |
| 12" | 56.0 | 84.0 | 112.0 |
| 14" | 71.0 | 106.5 | 142.0 |
| 16" | 88.0 | 132.0 | 176.0 |
| 18" | 108.0 | 162.0 | 216.0 |
| 20" | 128.0 | 192.0 | 256.0 |
| 24" | 160.0 | 240.0 | 320.0 |
DIN 2605 Elbow (45, 80, 180 Degree) Tolerance
| Parameter | Tolerance |
|---|---|
| Angle | ±1° for all angles (45°, 90°, 180°) |
| Outside Diameter (OD) | ±1% of nominal OD or ±0.5 mm, whichever is greater |
| Wall Thickness (WT) | ±12.5% of specified wall thickness |
| Center-to-End Dimensions | ±1.5% of the nominal dimension or ±3 mm, whichever is greater |
| Out-of-Roundness | ≤1% of the nominal OD |
| End Preparation | ±1 mm for length and ±2° for bevel angle |
| Surface Finish | Free from defects such as cracks, dents, or visible seams |
| Marking Tolerance | Legible and durable markings in accordance with ASME, ANSI, or applicable standards |
Material
- Carbon Steel (CS): Often used for general-purpose applications. Common grades include:
- P235GH
- P265GH
- S235JR
These grades offer good weldability and strength, making them suitable for many industrial applications, such as steam, water, and gas transport.
- Stainless Steel (SS): Used for corrosive or high-temperature applications. Common grades include:
- 1.4301 (AISI 304)
- 1.4401 (AISI 316)
- 1.4462 (Duplex Stainless Steel)
Stainless steel elbows are used in industries like food processing, chemical processing, and marine environments due to their resistance to corrosion.
- Alloy Steel: These are used for high-pressure and high-temperature applications where strength is a critical factor. Common materials include:
- P91 (Grade 91 steel)
- P11, P22
Application
- Oil and Gas Industry
- Petrochemical and Chemical Industry
- Power Generation
- Shipbuilding and Marine Applications
- Food and Beverage Industry
- Pharmaceuticals
- Mining and Metallurgy
