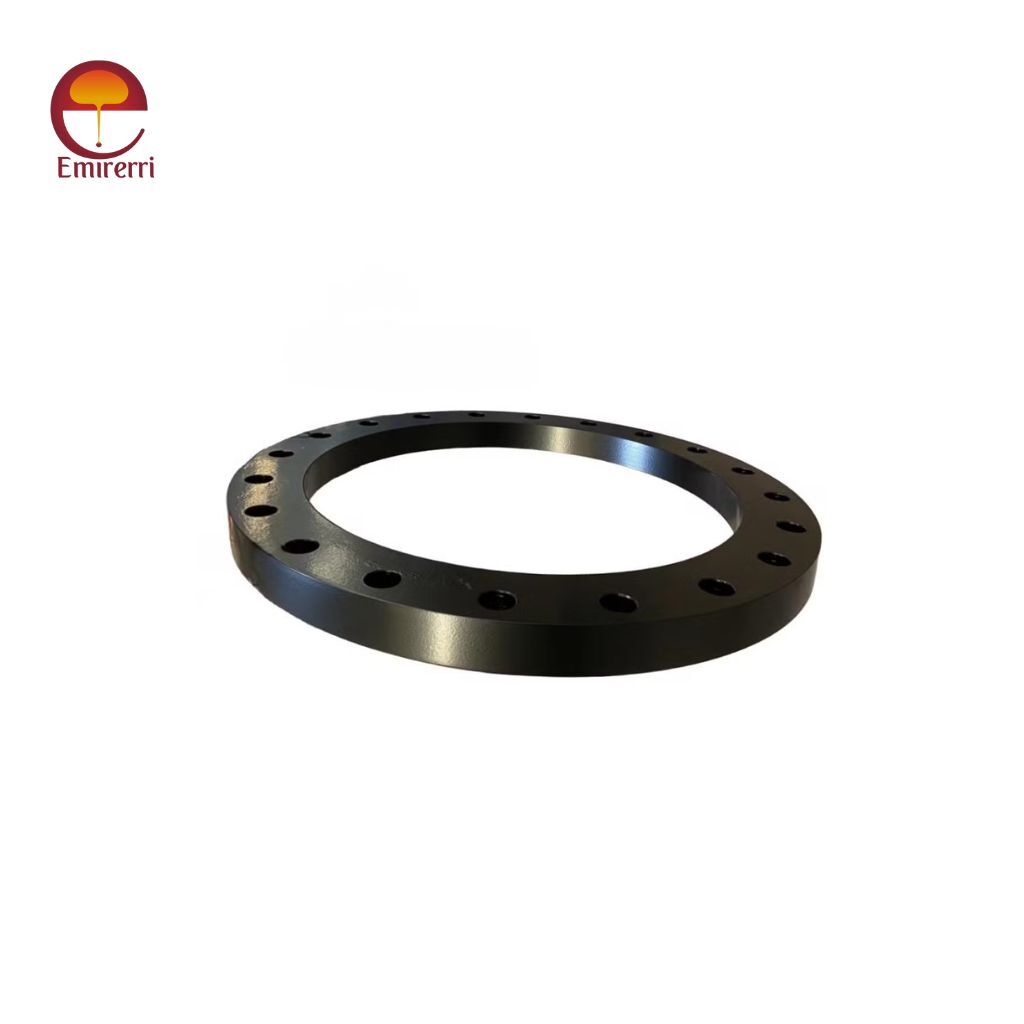

EN 1092-1 Type 02 Loose Plate Flange
EN 1092-1 Type 02 Loose Plate Flange is a standard flange used in piping systems for connecting pipes or equipment. It is commonly used in various industries like oil and gas, chemical processing, and water treatment.
Key Features:
- Design: EN 1092-1 Type 02 flanges are weld neck flanges. These flanges are characterized by a gradual transition from the flange face to the pipe, which enhances the strength and pressure-handling capacity.
- Connection: Typically used to connect pipes, valves, pumps, and other equipment in various industries.
- Pressure Rating: These flanges are suitable for high-pressure applications and provide a robust solution for critical systems.
- Standardized Sizes: The flanges are available in multiple sizes and thicknesses, making them adaptable for various pipe diameters and pressure ratings.
- Bolting Hole Arrangement: They have a standard bolting pattern for ease of installation and compatibility with gaskets.
EN 1092-1 Type 02 Loose Plate Flange Dimensions
| Rated Diameter | Flange | Screws | Weight (7,85 Kg/dm3) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| d1 | k | D | b | e | d2 | Thread | Bolt holes | KG | |
| 15 | 25 | 65 | 95 | 14 | 3 | 14 | M12 | 4 | 0,654 |
| 20 | 31 | 75 | 105 | 16 | 4 | 14 | M12 | 4 | 0,913 |
| 25 | 38 | 85 | 115 | 16 | 4 | 14 | M12 | 4 | 1,081 |
| 32 | 47 | 100 | 140 | 18 | 5 | 18 | M16 | 4 | 1,781 |
| 40 | 53 | 110 | 150 | 18 | 5 | 18 | M16 | 4 | 2,035 |
| 50 | 65 | 125 | 165 | 20 | 5 | 18 | M16 | 8 | 2,520 |
| 65 | 81 | 145 | 185 | 20 | 6 | 18 | M16 | 8 | 3,050 |
| 80 | 94 | 160 | 200 | 20 | 6 | 18 | M16 | 8 | 3,480 |
| 100 | 120 | 180 | 220 | 22 | 6 | 18 | M16 | 8 | 4,200 |
| 125 | 145 | 210 | 250 | 22 | 6 | 18 | M16 | 8 | 5,210 |
| 150 | 174 | 240 | 285 | 24 | 6 | 22 | M20 | 8 | 6,890 |
| 200 | 226 | 295 | 340 | 24 | 6 | 22 | M20 | 8 | 8.870 |
| 250 | 281 | 350 | 395 | 26 | 8 | 22 | M20 | 12 | 11,200 |
| 300 | 333 | 400 | 445 | 26 | 8 | 22 | M20 | 12 | 12,800 |
| 350 | 365 | 460 | 505 | 30 | 8 | 22 | M20 | 16 | 19,400 |
| 400 | 416 | 515 | 565 | 32 | 8 | 26 | M24 | 16 | 26,400 |
| 450 | 467 | 565 | 615 | 36 | 8 | 26 | M24 | 20 | 32,200 |
| 500 | 519 | 620 | 670 | 38 | 8 | 26 | M24 | 20 | 38,500 |
| 600 | 622 | 725 | 780 | 42 | 8 | 30 | M27 | 20 | 52,200 |
| 700 | 721 | 840 | 895 | 50 | 8 | 30 | M27 | 24 | 79,400 |
| 800 | 824 | 950 | 1015 | 56 | 8 | 33 | M30 | 24 | 112,000 |
| 900 | 926 | 1050 | 1115 | 62 | 8 | 33 | M30 | 28 | 135,000 |
| 1000 | 1028 | 1160 | 1230 | 70 | 8 | 36 | M33 | 28 | 180,000 |
Pressure Rating EN 1092-1 Type 02
- PN10: Rated for pressure up to 10 bar (145 psi).
- PN16: Rated for pressure up to 16 bar (232 psi).
- PN25: Rated for pressure up to 25 bar (362 psi).
- PN40: Rated for pressure up to 40 bar (580 psi).
- PN63: Rated for pressure up to 63 bar (915 psi).
- PN100: Rated for pressure up to 100 bar (1450 psi).
Applications:
- Oil and Gas: Commonly used in the oil and gas sector for high-pressure pipelines and equipment connections.
- Petrochemical Industry: Suitable for handling aggressive fluids and chemicals under high pressure.
- Power Plants: Used in piping systems where high temperature and pressure conditions are prevalent.
- Marine Industry: Employed in shipbuilding and offshore rigs where durability and corrosion resistance are critical.
- Water Treatment: Used in water and wastewater plants for connecting pipelines.
