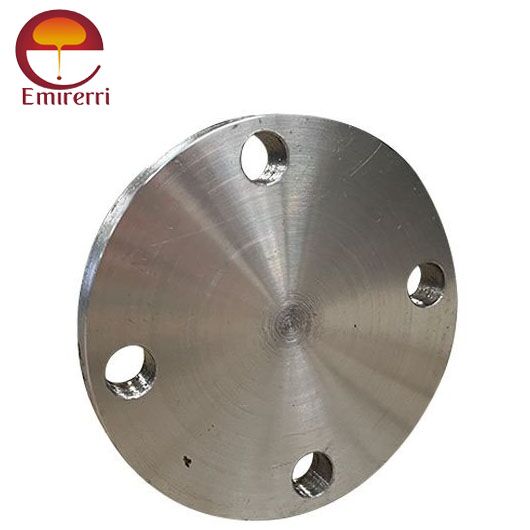

EN 1092-1 Type 05 Flange

ParameterDetails
TypeType 05 Flange
StandardEN 1092-1
Pressure RatingsPN6, PN10, PN16, PN25, PN40, PN63, PN100
SizesDN10 to DN2000 (or customized as per requirements)
Face TypesRaised Face (RF), Flat Face (FF), Ring-Type Joint (RTJ)
Material OptionsCarbon Steel, Stainless Steel, Alloy Steel
ApplicationSuitable for general-purpose applications, such as piping systems in water, gas, and oil distribution networks
Connection TypeBlind Flange (used to close the end of a piping system or vessel)
Finish OptionsStandard, Anti-corrosion Coating (if required)
Categories: , ,

Description

Product Description EN 1092-1 Type 05

EN 1092-1 Type 05 flanges are a specific type of flange defined by the European standard EN 1092-1, which covers flanges for pipes, valves, and fittings. Type 05 refers to blind flanges, which are used to close the end of a pipe or a fitting. Blind flanges are often used in various industrial applications to seal the pipeline or to provide an access point for inspection or cleaning.

EN 1092-1 Type 05 Blind Flange Dimensions

Class 150 Blind Flange Dimensions

SizeSizeFlangeOuterRFRFPCDNo ofBolt SizeMachine BoltRF StudHole SizeISO StudWeight
in Inchin mmThick.Dia.Dia.HeightBoltsUNCLengthLengthSizein kg
BACDE
1/2159.69034.9260.341/250555/8M140.9
3/42011.210042.9269.941/250655/8M140.9
12512.711050.8279.441/255655/8M140.9
1 1/43214.311563.5288.941/255705/8M141.4
1 1/24015.912573298.441/265705/8M141.8
25017.515092.12120.745/870853/4M162.3
2 1/26520.7180104.82139.745/875903/4M163.2
38022.31901272152.445/875903/4M164.1
3 1/29022.3215139.72177.885/875903/4M165.9
410022.3230157.22190.585/875903/4M167.7
512522.3255185.72215.983/485957/8M209.1
615023.9280215.92241.383/4851007/8M2011.8
820027345269.92298.583/4901107/8M2020.5
1025028.6405323.82362127/81001151M2432
1230030.24853812431.8127/81001201M2450
1435033.4535412.82476.31211151351 1/8M2764
1640035595469.92539.81611151351 1/8M2782
1845038.1635533.42577.9161 1/81251451 1/4M30100
2050041.3700584.22635201 1/81401601 1/4M30130
2460046.1815692.22749.3201 1/41501701 3/8M33196

Class 300 Blind Flange Dimensions

SizeSizeOuterFlangeRFRFPCDNo ofBolt SizeMachine BoltRF StudHole SizeISO StudWeight
in Inchin mmDia.Thick.Dia.HeightBoltsUNCLengthLengthSizein kg
ABCDE
1/2159512.734.9266.741/255655/8M141.4
3/42011514.342.9282.645/865753/4M161.4
12512515.950.8288.945/865753/4M161.4
1 1/43213517.563.5298.445/870853/4M161.8
1 1/24015519.1732114.343/475907/8M202.7
25016520.792.1212785/875903/4M163.7
2 1/26519023.9104.82149.283/4851007/8M205.5
380210271272168.383/4901107/8M207.3
3 1/29023028.6139.72184.283/4951107/8M209.6
410025530.2157.2220083/4951157/8M2012.3
512528033.4185.7223583/41101207/8M2015.9
615032035215.92269.9123/41101207/8M2022.7
820038039.7269.92330.2127/81201401M2436
1025044546.1323.82387.41611401601 1/8M2757
1230052049.33812450.8161 1/81451701 1/4M3084
1435058552.4412.82514.4201 1/81601801 1/4M30113
1640065055.6469.92571.5201 1/41651901 3/8M33134
1845071058.8533.42628.6241 1/41701951 3/8M33181
2050077562584.22685.8241 1/41852051 3/8M33230
2460091568.3692.22812.8241 1/22052301 5/8M39359

Class 400 Blind Flange Dimensions

Size in InchSize in mmOuter Dia.Flange Thick.RF Dia.RF HeightPCDNo of BoltsBolt Size UNCRF Stud LengthHole SizeISO Stud SizeWeight in kg
ABCDE
1/2159514.334.9766.741/2755/8M141.5
3/42011515.942.9782.645/8903/4M161.5
12512517.550.8788.945/8903/4M161.8
1 1/43213520.763.5798.445/8953/4M162.3
1 1/24015522.3737114.343/41107/8M203.7
25016525.492.1712785/81103/4M164.6
2 1/26519028.6104.87149.283/41207/8M206.8
38021031.81277168.383/41257/8M209.1
3 1/29023035N/A7184.287/81401M2413.2
410025535157.2720087/81401M2415
512528038.1185.7723587/81451M2420
615032041.3215.97269.9127/81501M2428
820038047.7269.973301211701 1/8M2746
1025044554323.87387.4161 1/81901 1/4M3071
1230052057.23817450.8161 1/42051 3/8M33102
1435058560.4412.87514.4201 1/42101 3/8M33132
1640065063.5469.97571.5201 3/82201 1/2M36168
1845071066.7533.47628.6241 3/82301 1/2M36207
2050077569.9584.27685.8241 1/22401 3/4M39266
2460091576.2692.27812.8241 3/42651 7/8M45405

Class 600 Blind Flange Dimensions

Size in InchSize in mmOuter Dia.Flange Thick.RF Dia.RF HeightPCDNo of BoltsBolt Size UNCRF Stud LengthHole SizeISO Stud SizeWeight in kg
ABCDE
1/2159514.334.9766.741/2755/8M141.4
3/42011515.942.9782.645/8903/4M161.4
12512517.550.8788.945/8903/4M161.8
1 1/43213520.763.5798.445/8953/4M162.3
1 1/24015522.3737114.343/41107/8M203.7
25016525.492.1712785/81103/4M164.6
2 1/26519028.6104.87149.283/41207/8M206.8
38021031.81277168.383/41257/8M209.1
3 1/29023035N/A7184.287/81401M2413.2
410027538.1157.27215.987/81451M2418.7
512533044.5185.77266.7811651 1/8M2731
615035547.7215.97292.11211701 1/8M2739
820042055.6269.97349.2121 1/81901 1/4M3064
1025051063.5323.87431.8161 1/42151 3/8M33105
1230056066.73817489201 1/42201 3/8M33134
1435060569.9412.87527201 3/82351 1/2M36161
1640068576.2469.97603.2201 1/22551 5/8M39225
1845074582.6533.47654201 5/82751 3/4M42286
2050081588.9584.27723.9241 5/82851 3/4M42368
24600940101.6692.27838.2241 7/83302M48568

Class 900 Blind Flange Dimensions

Size in InchSize in mmOuter Dia.Flange Thick.RF Dia.RF HeightPCDNo of BoltsBolt Size UNCRF Stud LengthHole SizeISO Stud SizeWeight in kg
ABCDE
1/21512022.334.9782.643/41107/8M201.8
3/42013025.442.9788.943/41157/8M202.7
12515028.650.87101.647/81251M243.6
1 1/43216028.663.57111.147/81251M244.1
1 1/24018031.8737123.8411401 1/8M275.9
25021538.192.17165.187/81451M2410.1
2 1/26524541.3104.87190.5811601 1/8M2716
38024038.11277190.587/81451M2413
410029044.5157.2723581 1/81701 1/4M3024.5
512535050.8185.77279.481 1/41901 3/8M3339.5
615038055.6215.97317.5121 1/81901 1/4M3053
820047063.5269.97393.7121 3/82201 1/2M3691
1025054569.9323.87469.9161 3/82351 1/2M36132
1230061079.43817533.4201 3/82551 1/2M36189
1435064085.8412.87558.8201 1/22751 5/8M39237
1640070588.9469.97616201 5/82851 3/4M42273
18450785101.6533.47685.8201 7/83252M48367
20500855108584.27749.32023502 1/8M52463
246001040139.7692.27901.7202 1/24402 5/8M64875

Class 1500 Blind Flange Dimensions

Size in InchSize in mmOuter Dia.Flange Thick.RF Dia.RF HeightPCDNo of BoltsBolt Size UNCRF Stud LengthHole SizeISO Stud SizeWeight in kg
ABCDE
1/21512022.334.9782.643/41107/8M201.8
3/42013025.442.9788.943/41157/8M202.7
12515028.650.87101.647/81251M243.7
1 1/43216028.663.57111.147/81251M244.1
1 1/24018031.8737123.8411401 1/8M275.9
25021538.192.17165.187/81451M2410.1
2 1/26524541.3104.87190.5811601 1/8M2715.9
38026547.71277203.281 1/81801 1/4M3021.8
410031054157.27241.381 1/41951 3/8M3333
512537573.1185.77292.181 1/22501 5/8M3964
615039582.6215.97317.5121 3/82601 1/2M3675
820048592.1269.97393.7121 5/82901 3/4M42136
10250585108323.87482.6121 7/83352M48232
12300675123.93817571.51623752 1/8M52314
14350750133.4412.87635162 1/44052 3/8M56443
16400825146.1469.97704.8162 1/24452 5/8M64591
18450915162533.47774.7162 3/44952 7/8M72795
20500985177.8584.27831.81635403 1/8M761022
246001170203.2692.27990.6163 1/26153 5/8M901648

Class 2500 Blind Flange Dimensions

Size in InchSize in mmOuter Dia.Flange Thick.RF Dia.RF HeightPCDNo of BoltsBolt Size UNCRF Stud LengthHole SizeISO Stud SizeWeight in kg
ABCDE
1/21513530.234.9788.943/41207/8M203.2
3/42014031.842.9795.243/41257/8M203.7
1251603550.8710847/81401M245
1 1/43218538.163.57130.2411501 1/8M277.8
1 1/24020544.573714641 1/81701 1/4M3010.5
25023550.992.17171.4811801 1/8M2718
2 1/26526557.2104.87196.881 1/81951 1/4M3025.5
38030566.71277228.681 1/42201 3/8M3339
410035576.2157.2727381 1/22551 5/8M3961.5
512542092.1185.77323.881 3/43001 7/8M45102
6150485108215.97368.3823452 1/8M52157
8200550127269.97438.21223802 1/8M52241
10250675165.1323.87539.8122 1/24902 5/8M64470
12300760184.23817619.1122 3/45402 7/8M72575

EN 1092-1 Type 05 Blind Flange Weight Chart

Flange Size (inches)Class 150 (lbs)Class 300 (lbs)Class 400 (lbs)Class 600 (lbs)Class 900 (lbs)Class 1500 (lbs)Class 2500 (lbs)
½2223447
¾23346610
124449912
3666101018
4788141425
2581010252539
7121515323556
39162020354886
132129295473133
41728334187140223
520374468115160345
627506186200302533
847811001402905101025
10701241552314157751464
12123185226295520975
141402503103786191300
161803153985278801750
1822041450266511072225
2028551562185520993625
223556407201000
244308009361250

Pressure Ratings

  • PN 2.5: Low-pressure applications
  • PN 6: Moderate-pressure applications
  • PN 10: Medium-pressure applications
  • PN 16: Higher-pressure applications
  • PN 25: High-pressure applications
  • PN 40: Very high-pressure applications
  • PN 63, PN 100, PN 160, and PN 250: Specialty high-pressure applications

Material

Carbon Steel

  • P250GH (EN 10222-2)
  • C22.8 (DIN standard)

Stainless Steel

  • 304/304L (1.4301/1.4307)
  • 316/316L (1.4401/1.4404)

Alloy Steel

  • 16Mo3 (EN 10028-2)
  • 13CrMo4-5 (EN 10222-2)

Applications

  1. Oil and Gas Industry
  2. Chemical and Petrochemical Industry
  3. Power Generation
  4. Water Treatment and Distribution
  5. Pharmaceutical and Food Processing
  6. Shipbuilding and Marine Applications
  7. Heating, Ventilation, and Air Conditioning (HVAC)
  8. Firefighting and Safety Systems
  9. Pipeline Testing and Maintenance
  10. Industrial Process Plants
