Description

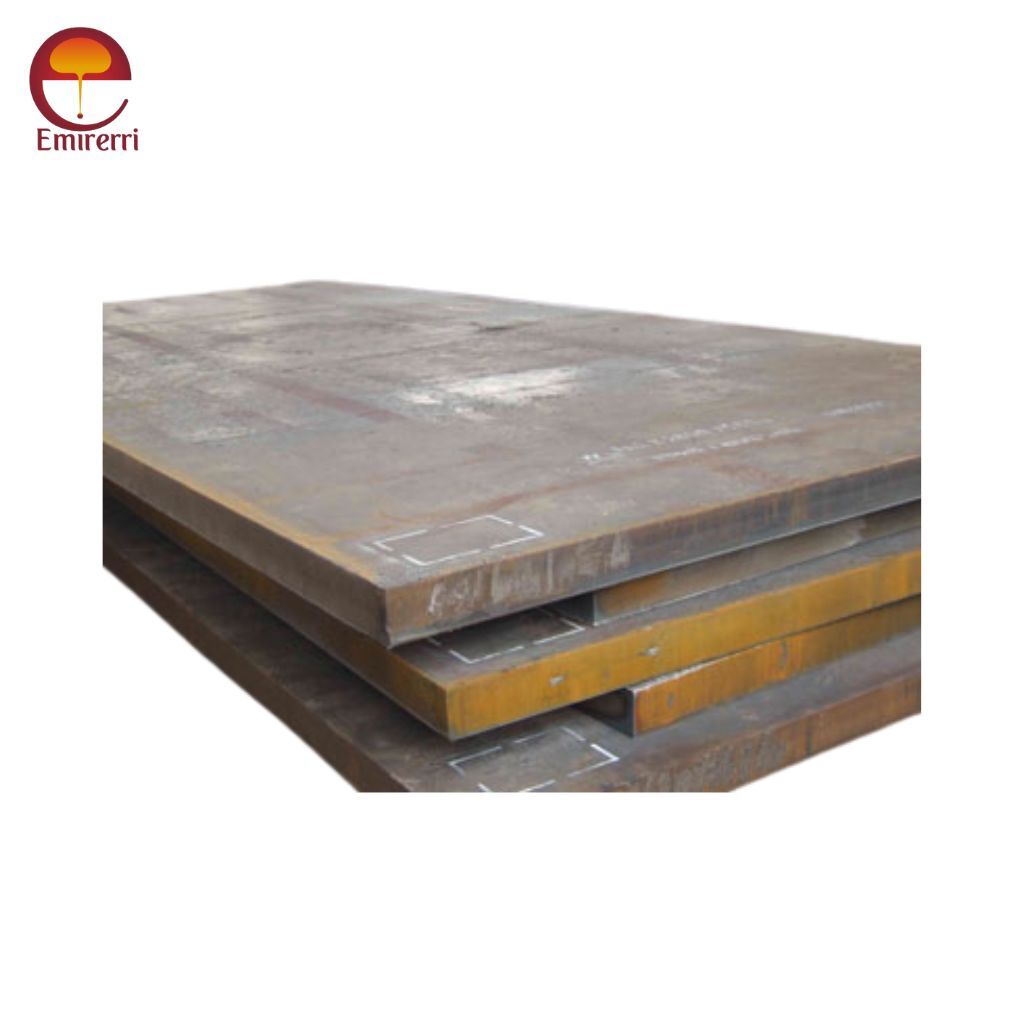

NM360 Wear-Resistant Steel
NM360 is a high-strength wear-resistant steel plate designed to offer excellent abrasion resistance and toughness. It is commonly used in industries such as mining, construction, cement, and engineering machinery where surfaces are exposed to severe wear and impact.
Key Features:
- Hardness: ~360 HBW (Brinell Hardness)
- High strength & good toughness
- Excellent wear resistance
- Good weldability and formability
NM360 Chemical Composition
| Element |
Content (%) |
| C |
≤ 0.20 |
| Si |
≤ 0.50 |
| Mn |
≤ 1.70 |
| P |
≤ 0.025 |
| S |
≤ 0.010 |
| Cr |
≤ 1.50 |
| Ni |
≤ 1.50 |
| Mo |
≤ 0.50 |
NM360 Mechanical Properties
| Property |
Value (Typical) |
| Hardness (HBW) |
330 – 390 |
| Yield Strength |
≥ 900 MPa |
| Tensile Strength |
≥ 1100 MPa |
| Elongation |
≥ 12% |
Dimensions
- Thickness: 8mm to 300mm (and sometimes down to 0.4mm).
- Width: 1500mm to 4020mm (and sometimes down to 100mm).
- Length: 3000mm to 18000mm (and sometimes down to 1000mm).
- Thickness: 3mm to 100mm.
- Width: 600mm to 3000mm.
- Length: 1000mm to 12000mm.
Applications:
- Earthmoving equipment
- Dump truck bodies
- Loader buckets
- Lining plates for crushers
- Cement mixer linings
- Chutes and hoppers
