Product Description Threadolet ASME B16.11

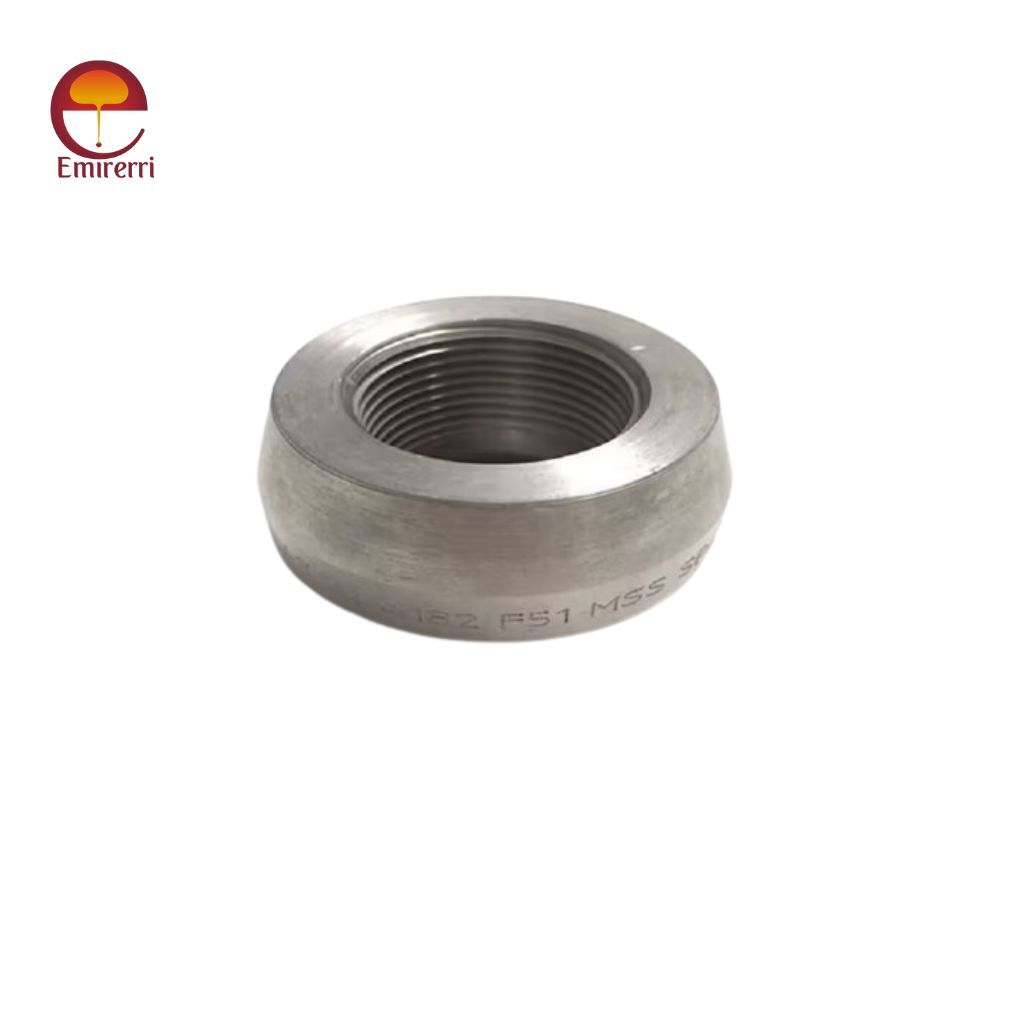

Threadolet is a type of branch connection fitting designed to provide a threaded outlet from a pipe, ensuring a secure and leak-free connection. Conforming to the ASME B16.11 standard, Threadolets are forged fittings commonly used in low to medium-pressure piping systems across various industries, including oil and gas, petrochemical, and chemical processing.
Threadolet ASME B16.11 Dimension
Class 3000 Threadolet ASME B16.11 Dimensions
| Size in Inches | A | B | C | D | Weight in KG |
|---|---|---|---|---|---|
| 1/8 | 19.05 | 25.40 | 15.88 | 0.05 | |
| 1/4 | 19.05 | 25.40 | 15.88 | 0.05 | |
| 3/8 | 20.64 | 31.75 | 19.05 | 0.09 | |
| 1/2 | 25.40 | 35.72 | 23.81 | 0.11 | |
| 3/4 | 26.99 | 43.66 | 29.37 | 0.16 | |
| 1 | 33.34 | 50.80 | 36.51 | 0.27 | |
| 1 1/4 | 33.34 | 65.09 | 44.45 | 0.41 | |
| 1 1/2 | 34.93 | 72.23 | 50.80 | 0.45 | |
| 2 | 38.10 | 88.11 | 65.09 | 0.79 | |
| 2 1/2 | 46.04 | 103.19 | 76.20 | 1.36 | |
| 3 | 50.80 | 122.24 | 93.66 | 1.97 | |
| 3 1/2 | 53.98 | 132.56 | 101.60 | 2.61 | |
| 4 | 57.15 | 151.61 | 120.65 | 3.22 | |
| 5 | 66.68 | 185.74 | 141.29 | 5.44 | |
| 6 | 69.85 | 219.08 | 169.86 | 6.94 |
Class 6000 Threadolet ASME B16.11 Dimensions
| Size in Inches | A | B | C | D | Weight in KG |
|---|---|---|---|---|---|
| 1/4 | 28.58 | 34.13 | 14.29 | 0.14 | |
| 3/8 | 28.58 | 34.13 | 14.29 | 0.14 | |
| 1/2 | 31.75 | 43.66 | 19.05 | 0.20 | |
| 3/4 | 36.51 | 49.61 | 25.40 | 0.34 | |
| 1 | 39.69 | 61.91 | 33.34 | 0.57 | |
| 1 1/4 | 41.28 | 69.06 | 38.10 | 0.73 | |
| 1 1/2 | 42.86 | 82.55 | 49.21 | 0.88 | |
| 2 | 55.03 | 102.39 | 69.85 | 2.27 |
Key Features:
- Threaded Connection: Threadolets feature a threaded connection that simplifies installation without the need for welding, making them a preferred choice for situations where welding is not feasible or desired.
- Material Flexibility: Available in a range of materials such as carbon steel, stainless steel, alloy steel, and special alloys, Threadolets are suitable for a variety of industrial environments.
- Conformance to ASME B16.11: The ASME B16.11 standard specifies the requirements for the design, dimensions, and pressure-temperature ratings of forged fittings, ensuring high quality and reliability for Threadolets.
- Versatility: Threadolets are available in different sizes to fit a wide range of pipe diameters, offering flexibility in their use across various piping systems.
- Compact and Durable: Designed for space efficiency, Threadolets offer durability and high resistance to pressure, corrosion, and fatigue, even in demanding environments.
Applications:
- Oil and Gas: Used for creating threaded branch connections in pipeline systems.
- Petrochemical and Chemical Industries: Commonly used in systems where space is limited, and welding is not preferred.
- Water and Wastewater Systems: Ideal for systems where threaded connections are necessary for ease of installation and maintenance.
