Product Description ASME B16.9 Lateral Tee ButtWeld Fitting

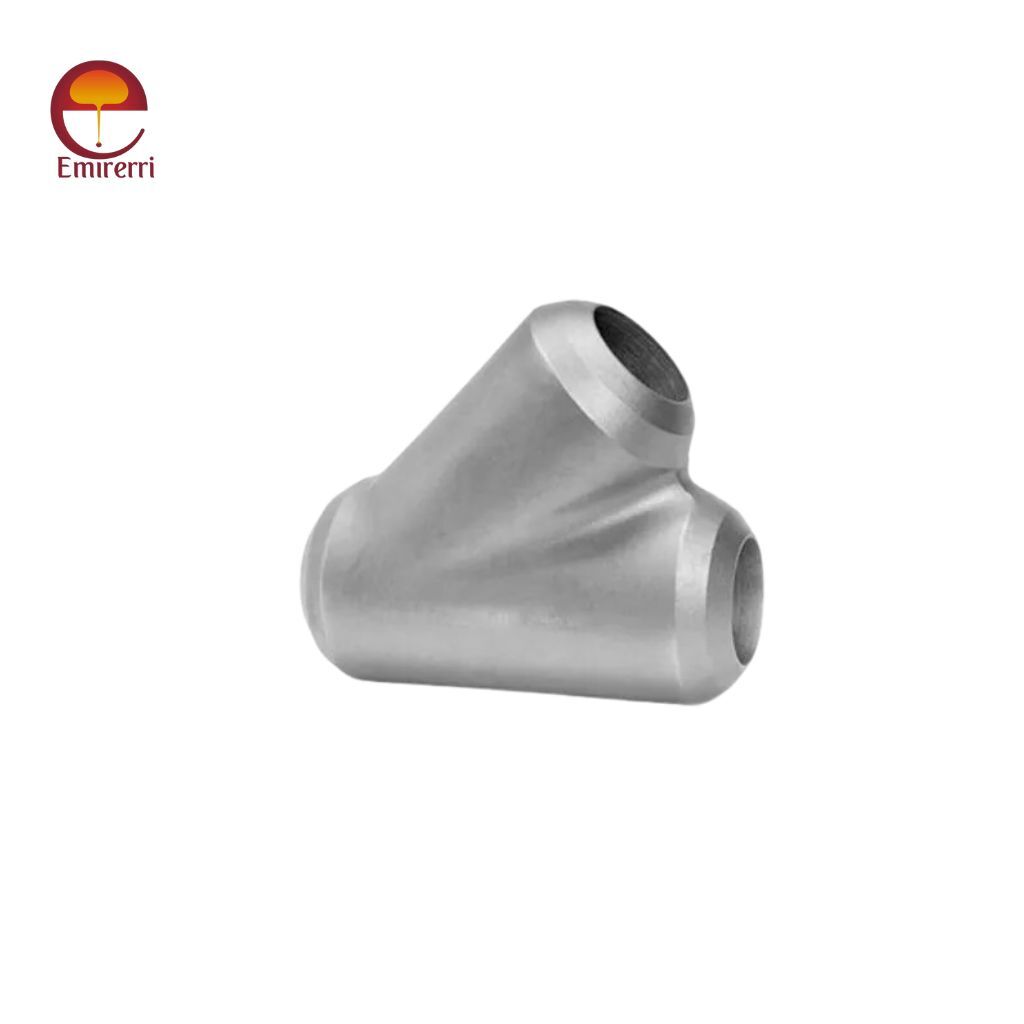

ASME B16.9 Lateral Tee is a specialized pipe fitting used for connecting three pipes at an angle of 45° or 60°. It facilitates smooth flow distribution in piping systems where two pipelines diverge from a main pipeline, making it an ideal solution for applications in industries such as oil & gas, petrochemical, power plants, and more.
ASME B16.9 Lateral Tee Dimensions
| Nominal | TYPE | Outside | STD | X - S | NPS | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe Size | Diameter OD | E & L | D | T | ID | E & L | D | T | ID | ||
| 1 | B | 1.315 | 5.75 | 1.75 | 0.133 | 1.049 | 6.5 | 2 | 0.179 | 0.957 | 1 |
| 1¼ | B | 1.66 | 6.25 | 1.75 | 0.14 | 1.38 | 7.25 | 2.25 | 0.191 | 1.278 | 1¼ |
| 1½ | B | 1.9 | 7 | 2 | 0.145 | 1.61 | 8.5 | 2.5 | 0.2 | 1.5 | 1½ |
| 2 | A/B | 2.375 | 8 | 2.5 | 0.154 | 2.067 | *8.00 | 2.5 | 0.128 | 1.939 | 2 |
| 2½ | B | 2.875 | 9.5 | 2.5 | 0.203 | 2.469 | **9.00 | 2.5 | 0.276 | 2.323 | 2½ |
| 3 | B | 3.5 | 10 | 3 | 0.216 | 3.068 | 10.5 | 3 | 0.3 | 2.9 | 3 |
| 11 | |||||||||||
| 3½ | B | 4 | 11.5 | 3 | 0.226 | 3.548 | 12.5 | 3 | 0.318 | 3.364 | 3½ |
| 4 | A/B | 4.5 | 12 | 3 | 0.237 | 4.026 | *12.00 | 3 | 0.337 | 3.826 | 4 |
| 5 | B | 5.562 | 13.5 | 3.5 | 0.258 | 5.047 | **13.50 | 3.5 | 0.375 | 4.813 | 5 |
| 15 | |||||||||||
| 6 | A/B | 6.625 | 14.5 | 3.5 | 0.28 | 6.065 | *14.50 | *3.50 | 0.432 | 5.761 | 6 |
| 8 | B | 8.625 | 17.5 | 4.5 | 0.322 | 7.981 | **17.50 | **4.00 | 0.5 | 7.625 | 8 |
| 10 | B | 10.75 | 20.5 | 5 | 0.365 | 10.02 | 20.5 | 5 | 0.5 | 9.75 | 10 |
| 24 | 5.5 | ||||||||||
| 12 | B | 12.75 | 24.5 | 5.5 | 0.375 | 12 | 27.5 | 6 | 0.5 | 11.75 | 12 |
| 14 | B | 14 | 27 | 6 | 0.375 | 13.25 | 31 | 6.5 | 0.5 | 13 | 14 |
| 16 | B | 16 | 30 | 6.5 | 0.375 | 15.25 | 34.5 | 7.5 | 0.5 | 15 | 16 |
| 18 | B | 18 | 32 | 7 | 0.375 | 17.25 | 37.5 | 8 | 0.5 | 17 | 18 |
| 20 | B | 20 | 35 | 8 | 0.375 | 19.25 | 40.5 | 8.5 | 0.5 | 19 | 20 |
| 24 | B | 24 | 40.5 | 9 | 0.375 | 23.25 | 47.5 | 10 | 0.5 | 23 | 24 |
Material:
- Carbon Steel: ASTM A234 WPB, WPC
- Stainless Steel: ASTM A403 WP304, WP316, WP904L
- Alloy Steel: ASTM A234 WP1, WP5, WP11, WP22
Applications
- Oil & Gas Industry: Used in pipeline networks for effective flow splitting.
- Petrochemical Plants: Ideal for chemical processing systems.
- Power Plants: Applied in high-pressure and high-temperature conditions.
- Water Treatment Systems: Supports branching in fluid management systems.
Advantages
- High structural integrity and durability.
- Precise alignment for efficient flow distribution.
- Variety of material options to suit specific applications.
