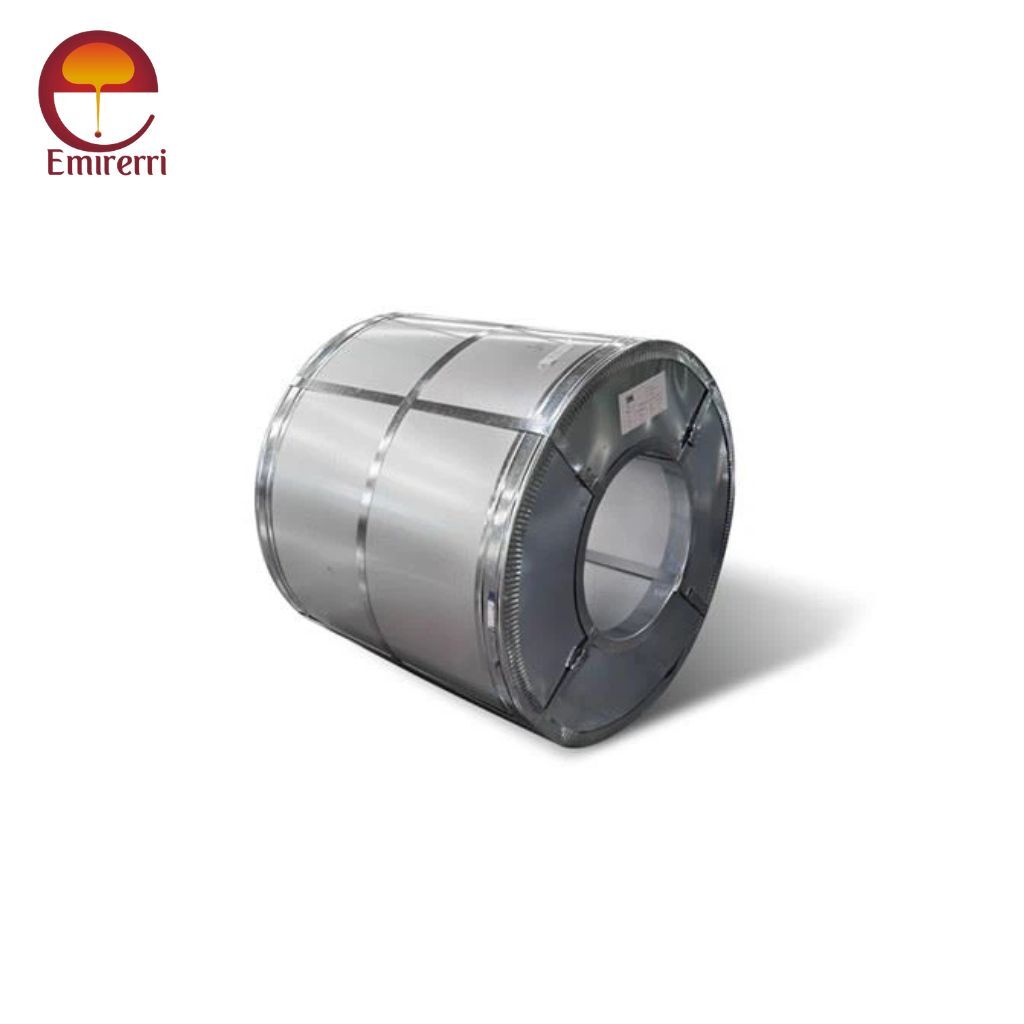

DIN 17162 Hot-Rolled Steel Sheet
DIN 17162 is a German standard that specifies requirements for hot-rolled steel strip and sheet products. This standard is part of the DIN family of standards that define various steel grades and processing specifications used primarily in structural, constructional, and mechanical applications.
Key Features
- Specifies hot-rolled steel strip and sheet for forming and structural use
- Offers grades suitable for drawing, deep drawing & cold forming
- Supplied in as-rolled or pickled & oiled condition
- Excellent surface quality and dimensional accuracy
- Suitable for automotive, appliances, HVAC, and general fabrication
- Available in grades like StW22, StW24, StW26 with increasing forming capability
DIN 17162 Chemical Composition
| Grade | C (max) | Mn (max) | P (max) | S (max) |
|---|---|---|---|---|
| StW22 | 0.08 | 0.45 | 0.03 | 0.03 |
| StW24 | 0.08 | 0.45 | 0.03 | 0.03 |
| StW26 | 0.10 | 0.45 | 0.03 | 0.03 |
DIN 17162 Mechanical Properties
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation A80 (%) |
|---|---|---|---|
| StW22 | ≤ 210 | 270–370 | ≥ 32 |
| StW24 | ≤ 240 | 290–390 | ≥ 30 |
| StW26 | ≤ 280 | 310–410 | ≥ 28 |
Application
- Automotive components (body panels, reinforcements)
- Steel furniture
- Construction elements
- HVAC systems
- General metal forming operations
