Description

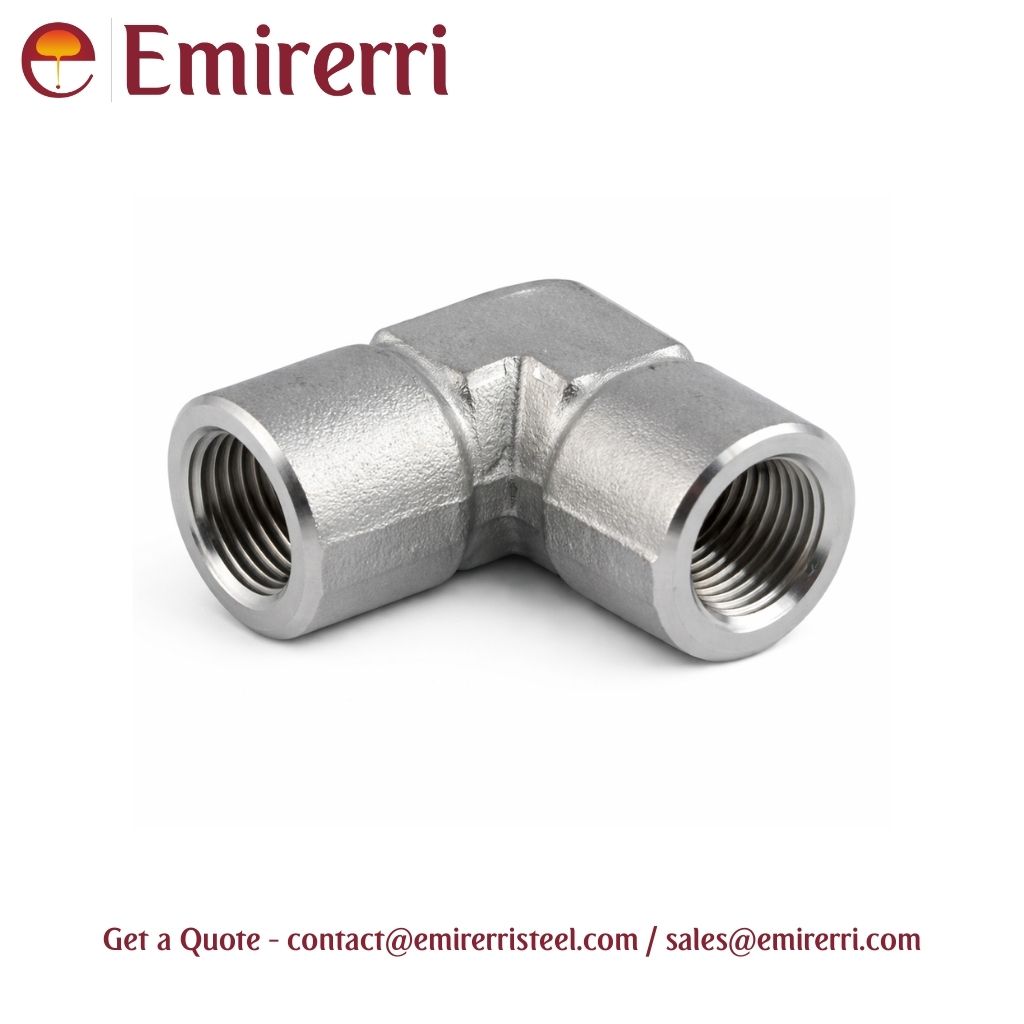

Female Elbow (Tube to Female Thread Elbow Fitting)
A Female Elbow is a compression tube fitting designed to connect a tube to a male threaded pipe connection at a 90° angle. One side features a compression tube connection, while the other side includes a female threaded port (NPT, BSPT, BSPP, or Metric).
This fitting allows a change in flow direction within compact piping systems, making it ideal for instrumentation, pneumatic, and hydraulic installations.
Female Elbow Standard Sizes
Tube OD Sizes
| Tube OD (Inch) | Tube OD (mm) |
|---|---|
| 1/16″ | 1.6 mm |
| 1/8″ | 3.2 mm |
| 1/4″ | 6.35 mm |
| 3/8″ | 9.52 mm |
| 1/2″ | 12.7 mm |
| 3/4″ | 19.05 mm |
| 1″ | 25.4 mm |
Female Thread Sizes
| Thread Type | Available Sizes |
|---|---|
| NPT | 1/16″ to 2″ |
| BSPT | 1/8″ to 2″ |
| BSPP | 1/8″ to 2″ |
| Metric | M10 to M33 |
Thread Standards:
- ASME B1.20.1
- ISO 7-1
- ISO 228
Available Material Grades
Stainless Steel
- SS 304 / 304L
- SS 316 / 316L
- SS 321
- SS 904L
Carbon Steel
- ASTM A105
- ASTM A350 LF2
Alloy Steel
- ASTM A182 F5
- ASTM A182 F11
- ASTM A182 F22
Duplex / Super Duplex
- UNS S31803
- UNS S32205
- UNS S32750
- UNS S32760
Key Features
- 90° direction change for tubing systems
- Leak-proof double ferrule compression design
- High corrosion resistance
- Reliable performance under vibration
- Easy installation and maintenance
- Suitable for high-pressure instrumentation systems
Applications
- Oil & Gas Industry
- Instrumentation Panels
- Chemical Processing Plants
- Hydraulic & Pneumatic Systems
- Power Generation Plants
