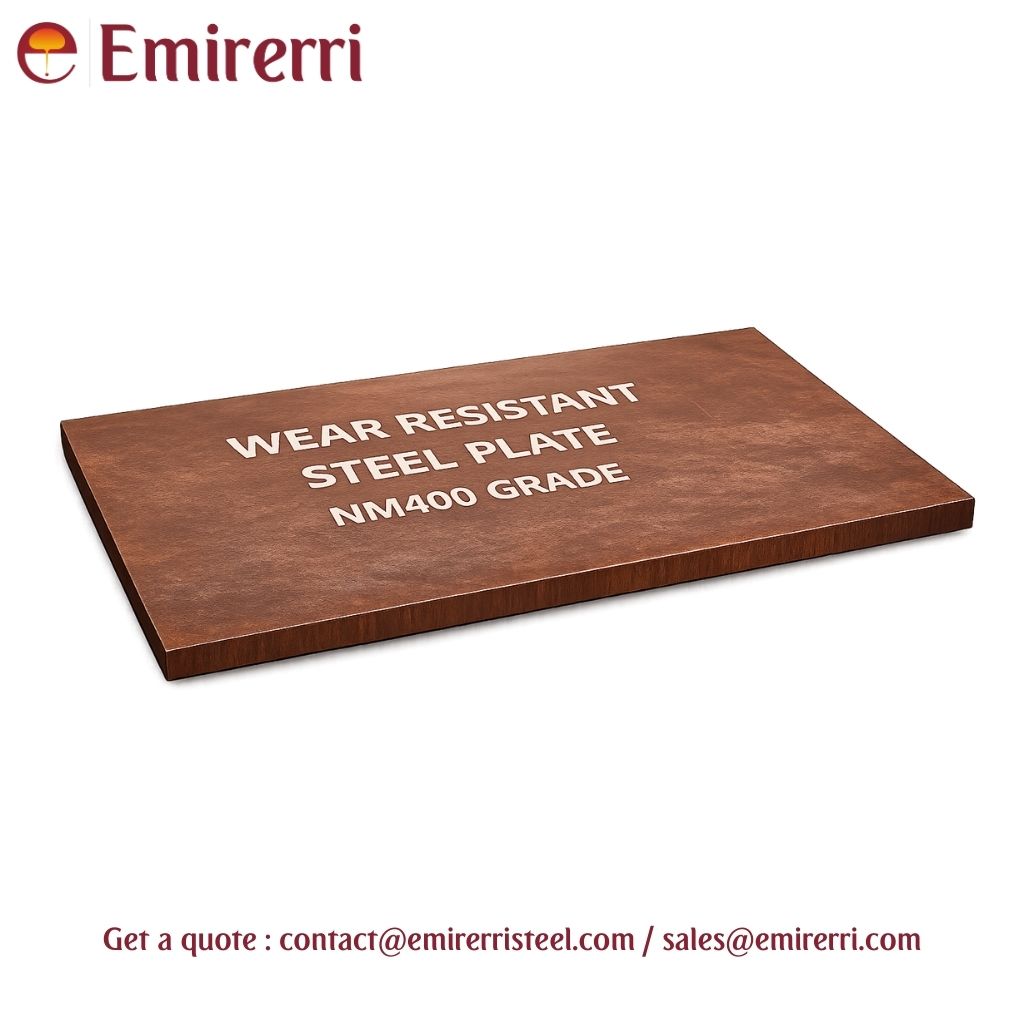

NM400 Wear Resistance Steel Plate
NM400 Wear Resistant Steel Plate is a high-performance abrasion resistant steel widely used in heavy-duty industrial applications where severe wear and impact occur. This grade is specifically engineered to deliver excellent resistance against sliding abrasion, friction, and mechanical wear caused by materials such as ore, gravel, coal, sand, and minerals.
NM400 steel plates are manufactured using advanced quenching and tempering processes that enhance hardness and toughness. With a typical hardness of 400 Brinell Hardness Number (BHN), NM400 plates provide superior wear resistance compared to conventional carbon steel and structural steel grades.
The UNS designation commonly associated with wear resistant steel similar to NM400 is UNS K40000, representing high hardness abrasion resistant steel used in mining, construction, and heavy industrial equipment.
Emirerri Steel supplies premium quality NM400 Wear Resistant Steel Plates in various sizes, thicknesses, and custom fabrication options to meet the needs of demanding industrial environments.
Key Features
- Excellent abrasion and wear resistance
- Hardness around 360 – 440 BHN
- High strength and toughness
- Longer service life in abrasive environments
- Good cutting, welding, and fabrication capability
- Suitable for heavy-duty industrial applications
Equivalent Grade
| Standard | Equivalent Grade |
|---|---|
| China GB | NM400 |
| ASTM | AR400 |
| EN | XAR400 |
| JFE | EH400 |
Available Sizes
NM400 Wear Resistant Steel Plates are available in multiple dimensions suitable for fabrication and heavy equipment manufacturing.
- Thickness: 3 mm to 100 mm
- Width: 1000 mm to 3000 mm
- Length: 2000 mm to 12000 mm
Custom sizes and plasma cut plates can also be supplied according to project specifications.
NM400 Chemical Composition
| Element | Percentage (%) |
|---|---|
| Carbon (C) | 0.20 – 0.30 |
| Manganese (Mn) | 1.00 – 1.60 |
| Silicon (Si) | 0.20 – 0.50 |
| Chromium (Cr) | 0.40 – 1.20 |
| Nickel (Ni) | 0.20 – 1.00 |
| Molybdenum (Mo) | 0.20 – 0.60 |
| Phosphorus (P) | ≤ 0.025 |
| Sulfur (S) | ≤ 0.010 |
NM400 Mechanical Properties
| Property | Value |
|---|---|
| Hardness | 360 – 440 BHN |
| Yield Strength | ≥ 1000 MPa |
| Tensile Strength | 1200 – 1500 MPa |
| Impact Toughness | Good |
NM400 Physical Properties
| Property | Value |
|---|---|
| Density | 7.85 g/cm³ |
| Melting Point | 1420 – 1460 °C |
| Thermal Conductivity | 35 – 45 W/m·K |
| Modulus of Elasticity | 200 GPa |
Types of NM400 Wear Steel Plate
- NM400 Standard Wear Plate
- NM400 Cut-to-Size Plates
- NM400 Wear Liners
- NM400 Fabricated Components
Applications
- Mining and quarry equipment
- Dump truck bodies and liners
- Excavator buckets and bucket liners
- Crushers and screening equipment
- Conveyor systems and material handling equipment
- Chutes, hoppers, and silos
- Cement plant equipment
- Agricultural machinery
- Earthmoving and construction equipment
