What is A992 Steel?

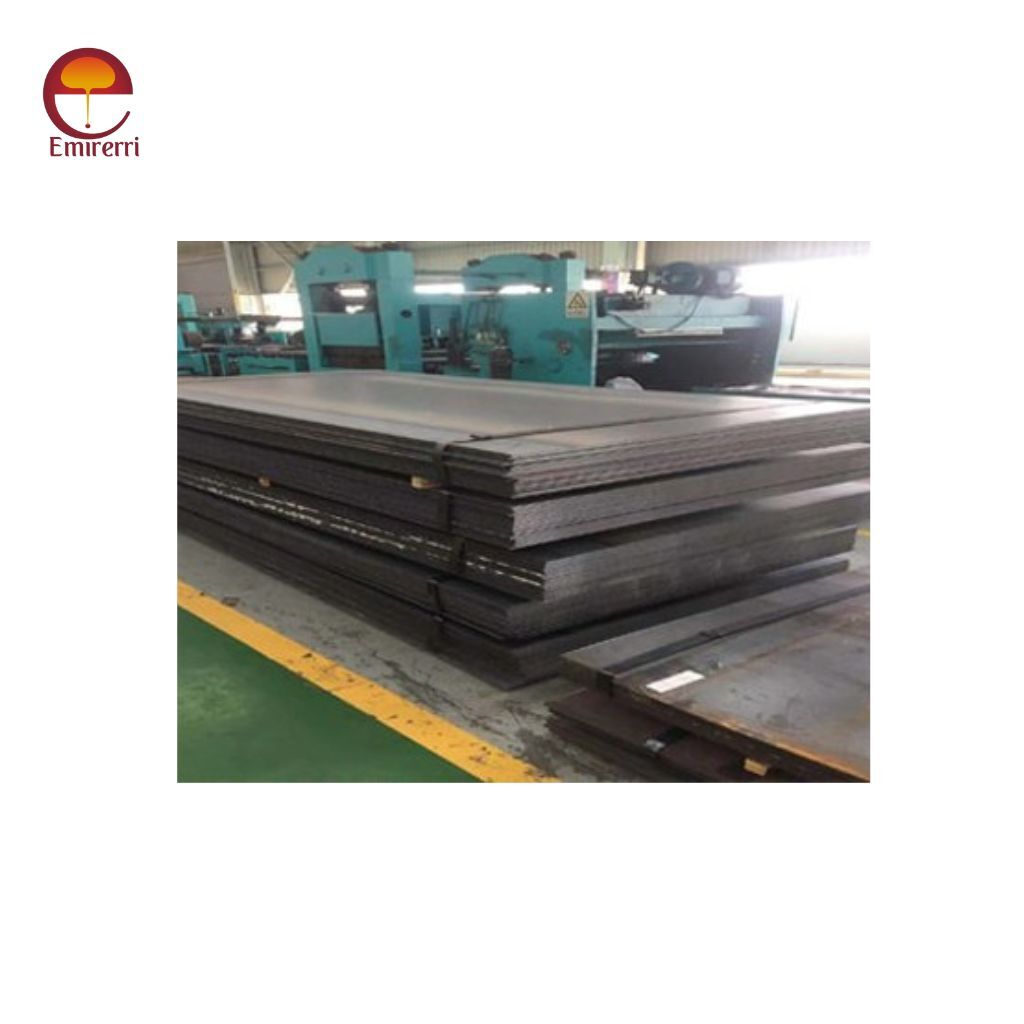

ASTM A992 Steel Plate is a structural steel widely used in construction and engineering projects, particularly for applications like bridges, buildings, and other load-bearing structures. This steel grade is known for its high strength, excellent weldability, and balanced composition, making it a preferred choice for structural components.
Key Features of ASTM A992 Steel Plate:
- High Strength: With a minimum yield strength of 50,000 psi, ASTM A992 provides superior load-bearing capacity.
- Weldability: Excellent for welding due to its low carbon equivalent, reducing the risk of weld cracking.
- Ductility: Provides good ductility for structural applications, which is crucial in areas prone to seismic activity.
- Toughness: Superior toughness at low temperatures, ensuring durability in challenging environments.
ASTM A992 Steel Plate Dimensions
| Parameter | Range |
| Web Width | 42 mm – 215 mm |
| Depth | 80 mm – 600 mm |
| Web Thickness | 3.8 mm – 21.6 mm |
Standard:
ASTM A992 is a standard specification issued by ASTM International for rolled steel shapes, plates, and bars of structural quality for use in riveted, bolted, or welded construction of bridges and buildings.
Material:
A992 steel is a high-strength, low-alloy steel. It offers good weldability and is designed for use in structural applications where high strength is required.
ASTM A992 Chemical Composition
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.23 max |
| Manganese (Mn) | 0.50-1.50 |
| Phosphorus (P) | 0.025 max |
| Sulfur (S) | 0.035 max |
| Silicon (Si) | 0.40 max |
| Vanadium (V) | 0.03-0.08 |
| Nitrogen (N) | 0.015 max |
| Columbium (Cb) | 0.005-0.05 |
| Copper (Cu) | 0.60 max (if specified) |
ASTM A992 Mechanical Properties
| Property | Value |
|---|---|
| Yield Strength (ksi) | 50 min |
| Tensile Strength (ksi) | 65-80 |
| Elongation (%) | 18 (in 8 in.) |
| Elongation (%) | 21 (in 2 in.) |
| Reduction of Area (%) | 35 min |
ASTM A992 Physical Properties
| Property | Value |
|---|---|
| Density | 7.85 g/cm³ (7850 kg/m³) |
| Elastic Modulus | 200 GPa |
| Poisson’s Ratio | 0.3 |
| Thermal Conductivity | 43 W/m-K |
| Melting Point | 1425-1530°C |
| Specific Heat Capacity | 486 J/kg-K |
Common Applications:
- Construction of bridges and buildings
- Structural I-beams, H-beams, and wide-flange beams
- Infrastructure projects such as highways and railroads
