Sockolet ASME B16.11

SpecificationDetails
StandardASME B16.11
TypeSockolet
Material Grades- Carbon Steel (e.g., ASTM A105, ASTM A350 LF2)
- Stainless Steel (e.g., ASTM A182 F304/F316)
- Alloy Steel (e.g., ASTM A182 F11/F22)
Size Range1/8 inch to 4 inches (Nominal Pipe Size - NPS)
Pressure Ratings2000#, 3000#, 6000#, 9000# (Class)
End Connections- Threaded (one side threaded)
- Other side for welding (usually plain end for welding to the main pipe)
Heat TreatmentNormalizing, Quenching, Tempering (based on material and application)
Category:

Description

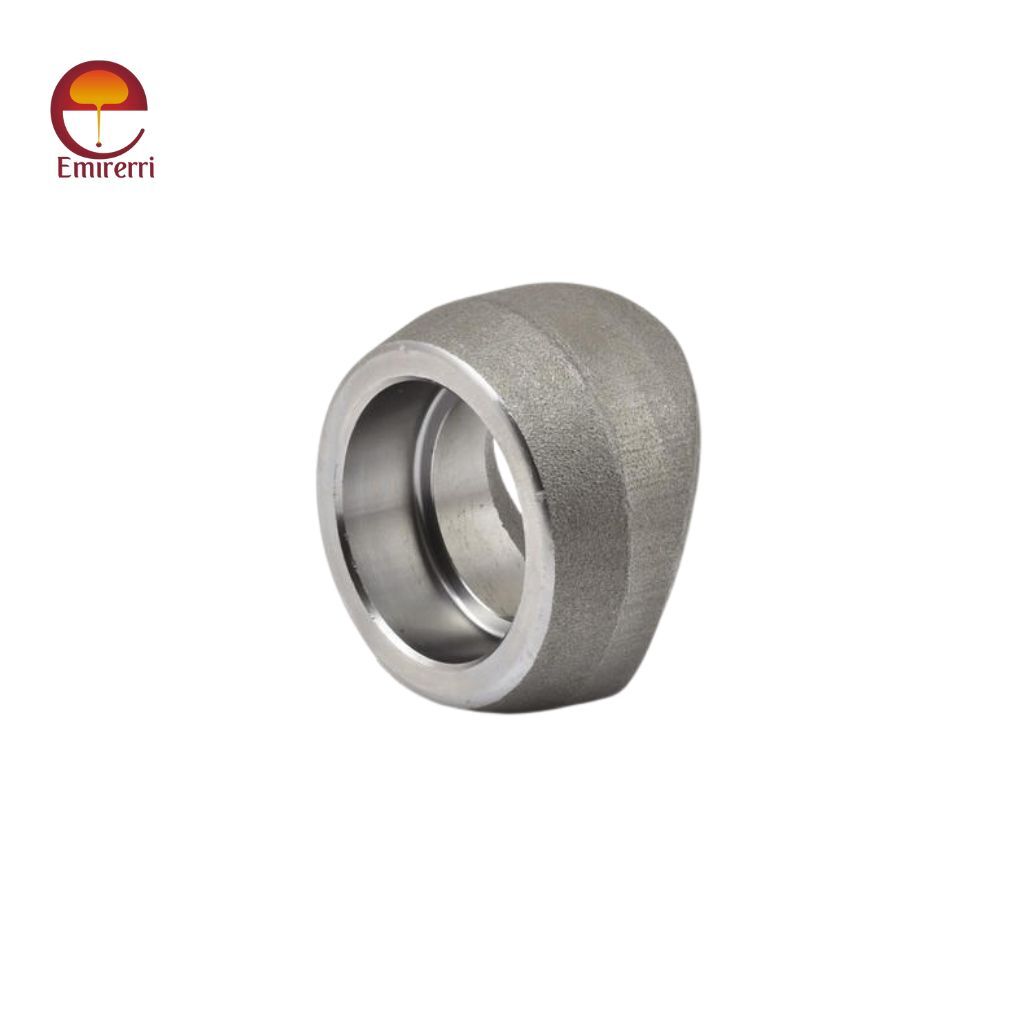

Product Description Sockolet ASME B16.11

Sockolet is a type of branch connection fitting designed to join a branch pipe to a main pipe. It is widely used in various industries, including oil and gas, petrochemical, and chemical processing, for its reliability and strength. The Sockolet conforms to the ASME B16.11 standard, which governs the specifications for forged fittings used in piping systems.

Sockolet ASME B16.11 Dimensions

sockolet dimensions

Class 3000 Sockolet Dimensions

Size in InchesABCDEWeight in KG
1/819.0525.4015.886.837.140.05
1/419.0525.4015.889.257.140.05
3/820.6431.7519.0512.5211.110.09
1/225.4035.7223.0215.8014.290.14
3/426.9943.6629.3720.9314.290.16
133.3450.8036.5126.6419.840.27
1 1/433.3465.0944.4535.0519.050.39
1 1/234.9372.2350.8040.8919.050.45
238.1088.1165.0952.5020.640.73
2 1/239.69103.1976.2062.7119.051.25
344.45122.2493.6677.9323.811.72
3 1/253.98132.56101.6090.1225.401.95
447.63151.61120.65102.2626.993.29
566.68185.74141.29128.1934.135.44
669.85219.08169.86154.0535.726.58

Class 6000 Sockolet Dimensions

Size in InchesABCDEWeight in KG
1/231.7543.6619.0511.8422.230.23
3/436.5149.6125.4015.6022.230.36
139.6961.9133.3420.7023.810.59
1 1/441.2869.0638.1029.4620.640.73
1 1/242.8682.5549.2133.9922.230.91
252.39102.3969.8542.9030.162.34

The Sockolet is a type of branch connection fitting designed to join a branch pipe to a main pipe. It is widely used in various industries, including oil and gas, petrochemical, and chemical processing, for its reliability and strength. The Sockolet conforms to the ASME B16.11 standard, which governs the specifications for forged fittings used in piping systems.

Key Features:

  • Material Variety: Sockolets are available in a range of materials, including carbon steel, stainless steel, alloy steel, and other high-performance alloys, ensuring compatibility with various industrial applications.
  • Durability and Strength: The ASME B16.11 standard ensures that Sockolets provide high resistance to pressure and stress, making them suitable for high-pressure systems.
  • Versatility: They are designed to fit on a wide range of pipe sizes and are typically used for low to medium-pressure applications.
  • Ease of Installation: Sockolets feature a socket-weld connection, which makes them easier to install and removes the need for complex welding techniques.
  • Cost-Effective: Sockolets are cost-effective alternatives to other types of branch connections like tees and elbows, providing significant savings on materials and labor.

Advantages of Using Sockolet

  • Ensures minimal welding, reducing the risk of leaks.
  • Easy to install with precise machining and dimensional accuracy.
  • High load-bearing capacity.
  • Offers flexibility with various material options and pressure classes.

Applications:

  • Oil and Gas: Used for creating branch connections in pipelines.
  • Petrochemical: Ideal for low-pressure systems where space is constrained.
  • Chemical and Pharmaceutical: Used for joining smaller diameter pipes to larger ones for effective flow management.
