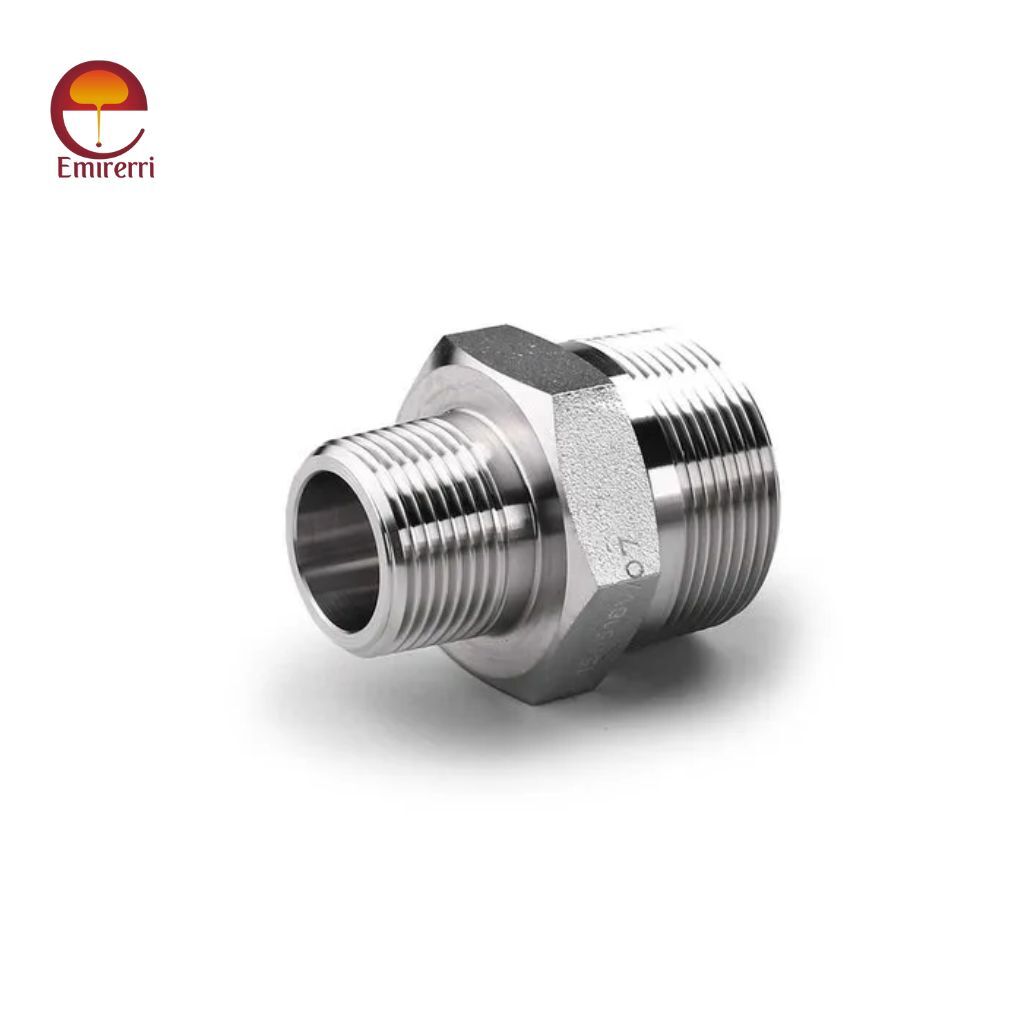

Stainless Steel Reducer Nipple

ParameterDetails
Product NameStainless Steel Reducer Nipple
MaterialStainless Steel (SS 304, SS 304L, SS 316, SS 316L, SS 321, SS 347, SS 904L, etc.)
StandardASTM A182, ASTM A403, ASME B16.11, MSS-SP-95, DIN, JIS
Size Range1/8” to 6” (Custom sizes available)
Thread TypeNPT (National Pipe Thread), BSPT (British Standard Pipe Tapered), BSPP (British Standard Pipe Parallel)
Connection TypeThreaded, Screwed
ThicknessSCH 10, SCH 20, SCH 40, SCH 80, SCH 160, XXS
Surface FinishBright, Polished, Pickled & Passivated
Category:

Description

What is a Stainless Steel Reducer Nipple?

A reducer nipple is a short length of pipe with male threads on both ends, featuring different diameters at each end to facilitate the connection of pipes with varying sizes. The stainless steel construction ensures high strength, excellent resistance to corrosion, and compatibility with extreme temperature and pressure conditions.

Key Features of Stainless Steel Reducer Nipple

  • Material Strength – Manufactured using high-quality stainless steel (SS304, SS316, SS316L, etc.) for enhanced durability.
  • Corrosion Resistance – Superior resistance to rust, oxidation, and chemical exposure.
  • High-Pressure Tolerance – Capable of handling high-pressure applications efficiently.
  • Threaded Ends – Comes with NPT, BSP, BSPT, or custom threads for easy and secure installation.
  • Leak-Proof Connection – Ensures a reliable and leak-free transition between different pipe sizes.
  • Temperature Resistance – Performs efficiently in extreme hot or cold environments.
  • Versatile Application – Used across multiple industries for various fluid, gas, and chemical transportation needs.

Available Material Grades

  • SS304 – Most commonly used stainless steel grade with excellent corrosion resistance.
  • SS316 – Higher corrosion resistance with molybdenum for superior performance in harsh environments.
  • SS316L – Low-carbon variant of SS316, preventing carbide precipitation and enhancing weldability.
  • SS321 – Titanium-stabilized stainless steel offering improved strength and oxidation resistance.
  • SS904L – Highly corrosion-resistant stainless steel ideal for aggressive chemical environments.

Technical Specifications

1. Dimensional Range

  • Standard Sizes: 1/8” to 6” (Custom sizes available upon request)
  • Thread Types: NPT, BSP, BSPT, Metric, UNF, UNEF, or custom threading options
  • End Connection: Male-to-male threaded ends
  • Length: Varies based on size and application requirements

2. Pressure Ratings

  • Class 150 – Up to 150 PSI
  • Class 300 – Up to 300 PSI
  • Class 600 – Up to 600 PSI
  • Higher Ratings – Available upon request

3. Temperature Range

  • Operating Temperature: -100°C to 600°C (-148°F to 1112°F), depending on the grade
  • Cryogenic and High-Temperature Options: Available for specialized applications

4. Standards & Certifications

  • ASTM A403 – Standard for stainless steel pipe fittings
  • ASME B16.11 – Forged fittings dimensions
  • ANSI/ASME B1.20.1 – Pipe thread standards
  • ISO, DIN, EN – International threading and dimensional standards compliance
  • NACE MR0175 – Sulfide stress cracking resistance for oil & gas applications

Advantages

1. Durability and Longevity

Stainless steel provides excellent durability, making these fittings long-lasting and resistant to wear and tear.

2. Superior Corrosion Resistance

With resistance to rust, acids, and chemicals, stainless steel reducer nipples ensure minimal degradation over time.

3. High Strength and Pressure Resistance

These fittings can withstand high pressures, ensuring reliability in critical applications.

4. Easy Installation and Maintenance

Threaded connections allow for quick and hassle-free installation without requiring specialized tools.

5. Hygienic and Food-Grade Compatibility

SS304 and SS316 variants are suitable for food and beverage applications due to their non-reactive and easy-to-clean surfaces.

6. Cost-Effective Solution

Longer service life reduces the need for frequent replacements, making them a cost-effective choice for industrial and commercial applications.

Applications

  • Oil and Gas
  • Chemical Processing
  • Water Treatment
  • Food and Beverage
  • HVAC and Plumbing
  • Marine and Shipbuilding
