Description

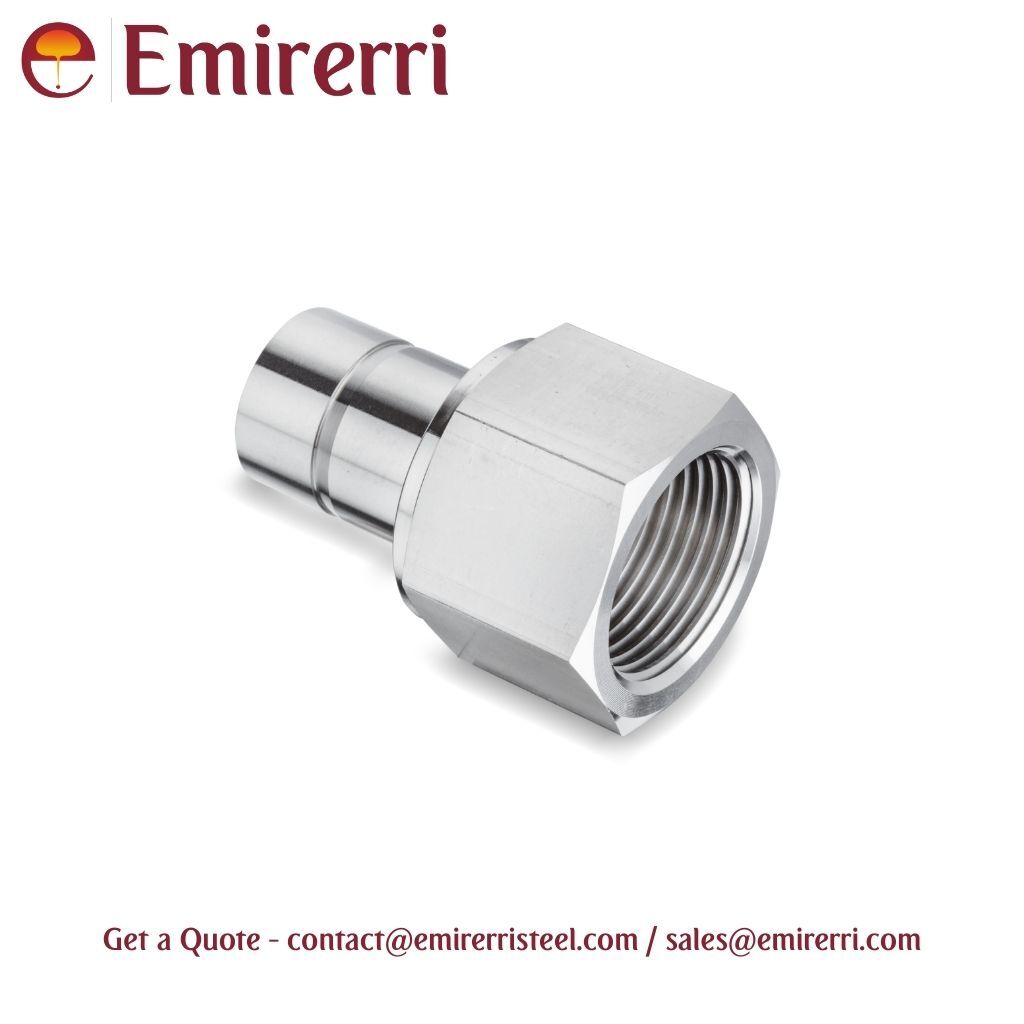

Tube to Female Pipe Adapter (Female Connector)
A Tube to Female Pipe Adapter is an instrumentation fitting designed to connect a compression tube end to a male threaded pipe connection (NPT, BSPT, BSPP, Metric).
It provides a secure, leak-proof, high-pressure connection in instrumentation, hydraulic, and process piping systems.
Standard Sizes for Tube to Female Pipe Adapter
Tube OD (Compression Side)
| Tube OD (Inch) | Tube OD (mm) |
|---|---|
| 1/16″ | 1.6 mm |
| 1/8″ | 3.2 mm |
| 1/4″ | 6.35 mm |
| 3/8″ | 9.52 mm |
| 1/2″ | 12.7 mm |
| 3/4″ | 19.05 mm |
| 1″ | 25.4 mm |
| 1 1/4″ | 31.75 mm |
| 1 1/2″ | 38.1 mm |
| 2″ | 50.8 mm |
Female Thread Sizes (Pipe Side)
| Thread Type | Available Sizes |
|---|---|
| NPT | 1/16″ to 2″ |
| BSPT | 1/8″ to 2″ |
| BSPP | 1/8″ to 2″ |
| Metric | M10 to M33 |
Thread Standards:
- ASME B1.20.1
- ISO 7-1
- ISO 228
Available Material Grades
Stainless Steel
- SS 304 / 304L
- SS 316 / 316L
- SS 321
- SS 904L
Carbon Steel
- ASTM A105
- ASTM A350 LF2
Alloy Steel
- ASTM A182 F5
- ASTM A182 F11
- ASTM A182 F22
Duplex / Super Duplex
- UNS S31803
- UNS S32205
- UNS S32750
- UNS S32760
Applications
- Oil & Gas Instrumentation
- Chemical & Petrochemical Plants
- Power Generation
- Hydraulic Systems
- Refineries
