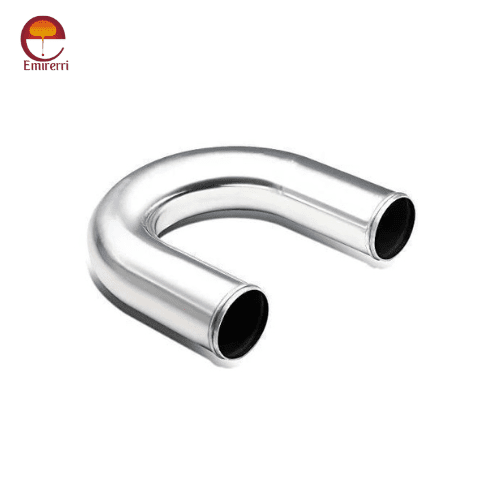

Product Description Stainless Steel U Bend Pipe & Tubes
Stainless Steel U Bend pipe and tubes are specially designed components used in various industrial applications where the ability to handle high temperatures and pressure, along with excellent resistance to corrosion, is required. These U-shaped bends are widely utilized in heat exchangers, boilers, condenser tubes, and other systems where space constraints and the need for efficient fluid flow are significant factors.
The primary advantage of Stainless Steel U Bend pipes and tubes is their durability. Made from high-quality stainless steel alloys like 304, 316, and 321, these tubes offer exceptional resistance to oxidation, corrosion, and high-temperature conditions. The U-shape is crafted with precision bending processes, ensuring minimal disruption to the material’s structural integrity. This shape enables a compact arrangement in heat exchangers and condensers, maximizing the surface area for heat transfer in limited spaces.
These U Bend tubes are used in critical industries such as petrochemical, chemical processing, power generation, and HVAC systems, where tubes need to withstand harsh conditions without compromising performance. The stainless steel material offers resistance against both acidic and alkaline environments, making it suitable for applications that involve exposure to chemicals, acids, or saline solutions.
Stainless Steel U Bend Pipe & Tubes Dimensions
| Nominal Pipes Size | Outside Diameter | Back to Face | Center to Center | ||
|---|---|---|---|---|---|
| Inch. | OD | A | B | C | D |
| 01-Feb | 21.3 | 48 | – | 76 | – |
| 03-Apr | 26.7 | 43 | – | 57 | – |
| 1 | 33.4 | 56 | 41 | 76 | 51 |
| 1 1/4 | 42.2 | 70 | 52 | 95 | 64 |
| 1 1/2 | 48.3 | 83 | 62 | 114 | 76 |
| 2 | 60.3 | 106 | 81 | 152 | 102 |
| 2 1/2 | 73 | 132 | 100 | 191 | 127 |
| 3 | 88.9 | 159 | 121 | 229 | 152 |
| 3 1/2 | 101.6 | 184 | 140 | 267 | 178 |
| 4 | 114.3 | 210 | 159 | 305 | 203 |
| 5 | 141.3 | 262 | 197 | 381 | 254 |
| 6 | 168.3 | 313 | 237 | 457 | 305 |
| 8 | 219.1 | 414 | 313 | 610 | 406 |
| 10 | 273.1 | 518 | 391 | 762 | 508 |
| 12 | 323.9 | 619 | 467 | 914 | 610 |
| 14 | 355.6 | 711 | 533 | 1067 | 711 |
| 16 | 406.4 | 813 | 610 | 1219 | 813 |
| 18 | 457.2 | 914 | 686 | 1372 | 914 |
| 20 | 508 | 1016 | 762 | 1524 | 1016 |
| 22 | 559 | 1118 | 838 | 1676 | 1118 |
| 24 | 610 | 1219 | 914 | 1829 | 1219 |
SS U Bend Pipe & Tubes Chemical Composition
| Element | Stainless Steel (SS304) | Stainless Steel (SS316) | Carbon Steel (A106 Gr. B) | Alloy Steel (P11) |
|---|---|---|---|---|
| Carbon (C) | 0.08 max | 0.08 max | 0.30 max | 0.10-0.20 |
| Manganese (Mn) | 2.00 max | 2.00 max | 0.29-1.06 | 0.30-0.60 |
| Phosphorus (P) | 0.045 max | 0.045 max | 0.035 max | 0.025 max |
| Sulfur (S) | 0.030 max | 0.030 max | 0.035 max | 0.025 max |
| Silicon (Si) | 1.00 max | 1.00 max | 0.10 min | 0.50 max |
| Chromium (Cr) | 18.0-20.0 | 16.0-18.0 | - | 1.00-1.50 |
| Nickel (Ni) | 8.0-10.5 | 10.0-14.0 | - | 0.50-1.00 |
| Molybdenum (Mo) | - | 2.0-3.0 | - | 0.44-0.65 |
SS U Bend Pipe & Tubes Mechanical Properties
| Property | Stainless Steel (SS304) | Stainless Steel (SS316) | Carbon Steel (A106 Gr. B) | Alloy Steel (P11) |
|---|---|---|---|---|
| Tensile Strength (MPa) | 515 min | 515 min | 415 min | 415 min |
| Yield Strength (MPa) | 205 min | 205 min | 240 min | 205 min |
| Elongation (%) | 35 min | 35 min | 30 min | 20 min |
| Hardness (HB) | 201 max | 217 max | 137 max | 143 max |
