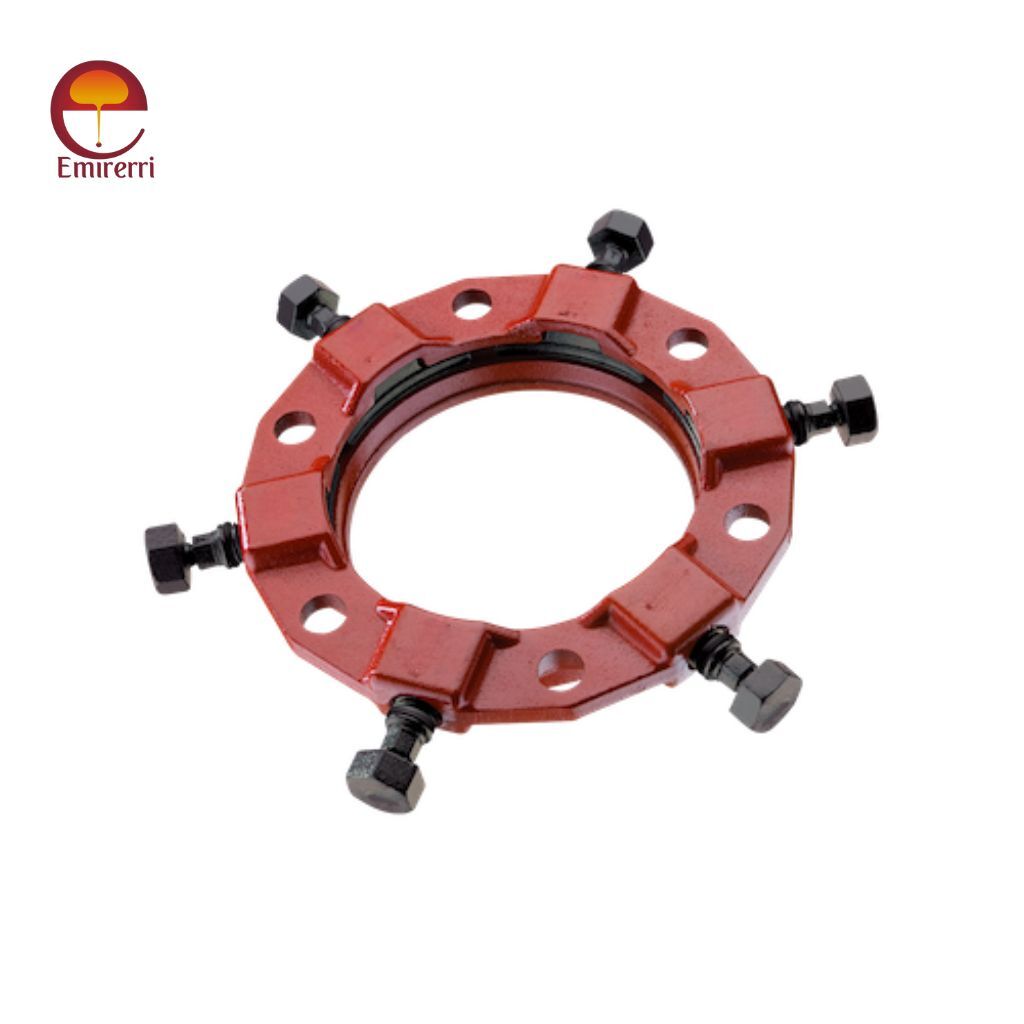

What is UNI Flange 1300?
The UNI Flange 1300 is a type of pipe restraint used in piping systems, especially for PVC pipes. It’s designed to provide a fast and economical way to secure connections without the need for traditional thrust blocks.
Key Features:
- Versatile Application: Compatible with ductile iron and PVC pipes.
- Adjustable & Secure Fit: Provides a flexible yet strong connection, allowing for easy alignment and installation.
- Corrosion-Resistant Build: Made from durable materials with protective coatings to withstand harsh environments.
- No Welding Required: Reduces installation time and labor costs while ensuring a leak-free seal.
- Superior Pressure Handling: Designed to handle high-pressure systems effectively.
UNI Flange 1300 Dimensions
| NOM. PIPE SIZE | DUCTILE IRON PIPE STYLE 1300-C | A | B | C | RESTRAINT BOLTS / RODS | CLAMPING BOLTS | APPROX. WT. LBS | PRESSURE RATING (PSI) | CLAMPING BOLT TORQUE | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O.D. | CATALOG NUMBER | NO. | SIZE | NO. | SIZE | |||||||
| 4" | 4.8 | UFR1300-C-4 | 1-1/8" | 9-1/8" | 6" | 2 | 3/4"X 7" | 2 | 5/8"x3-1/2" | 8.5 | 250 | 100 ft-lb. |
| 6" | 6.9 | UFR1300-C-6 | 1-1/8" | 11-1/8" | 6" | 2 | 3/4"X 7" | 2 | 5/8"x3-1/2" | 10 | ||
| 8" | 9.05 | UFR1300-C-8 | 1-1/4" | 14-5/8" | 6" | 2 | 3/4"X 7" | 2 | 3/4"x4" | 15.5 | 150 ft-lb | |
| 10" | 11.1 | UFR1300-C-10 | 1-3/8" | 16-5/8" | 6" | 4 | 3/4"X 7" | 2 | 7/8"x5" | 26.5 | 200 | 200 ft-lb. |
| 12" | 13.2 | UFR1300-C-12 | 1-3/8" | 19-1/4" | 6" | 4 | 3/4"X 7" | 2 | 7/8"x5" | 28.5 | ||
| 14" | 15.3 | UFR1300-C-14 | 4" | 22-1/2" | 15" | 6 | 3/4"X 17" | 4 | 7/8"x7" | 72.5 | 150 | |
| 16" | 17.4 | UFR1300-C-16 | 4" | 24-9/16" | 15" | 6 | 3/4"X 17" | 4 | 7/8"x7" | 77 | 100 | |
Applications:
- Water & wastewater pipelines
- Industrial piping systems
- Fire protection lines
- Municipal infrastructure
