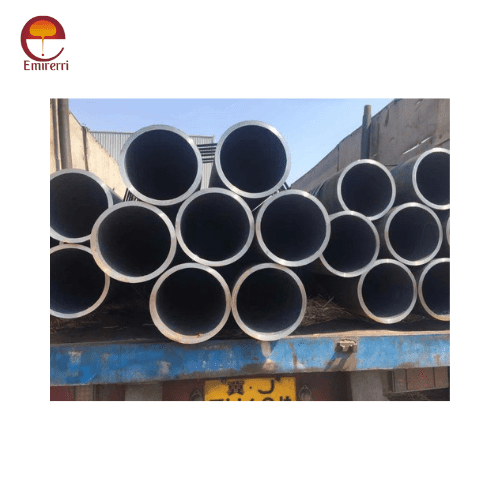

A335 P9 Seamless Pipe

AttributeDetails
Product NameA335 P9 Seamless Pipe
MaterialAlloy Steel
SpecificationsASTM A335 / ASME SA335
GradeP9
TypeSeamless
Size Range1/2" NB to 24" NB
Wall ThicknessSCH 40, SCH 80, SCH 160, SCH XXS
LengthSingle Random, Double Random, or Custom Length
CertificationISO 9001, API 5L, CE
Categories: ,

Description

Product Description ASTM A335 P9 Seamless Alloy Steel Pipe

ASTM A335 P9 seamless alloy steel pipes are an integral part of high-temperature and high-pressure applications. Engineered for performance and durability, these pipes are predominantly used in industries such as power generation, petrochemical, and oil and gas. Manufactured under stringent quality standards, ASTM A335 P9 pipes offer exceptional resistance to thermal stress, oxidation, and corrosion.

Standards and Specifications

ASTM A335 P9 pipes conform to the following standards and specifications:

  • ASTM Standard: ASTM A335/A335M
  • Dimensions: As per ASME B36.10M (Seamless and Welded Steel Pipe)
  • Grade: P9
  • Size Range: Typically 1/8″ to 24″ NPS
  • Wall Thickness: SCH 20 to SCH XXS, including heavy-wall thickness
  • Length: Single random, double random, or custom cut

ASTM A335 P9 Dimension

NPS (in)OD (in)SCH 10 (WT/ID)SCH 40 (WT/ID)SCH 80 (WT/ID)SCH 160 (WT/ID)SCH XXS (WT/ID)
1/80.4050.049 / 0.3070.068 / 0.2690.095 / 0.2150.123 / 0.1590.215 / 0.215
1/40.5400.065 / 0.4100.088 / 0.3640.119 / 0.3020.157 / 0.2260.302 / 0.302
1/20.8400.083 / 0.6740.109 / 0.6220.147 / 0.5460.187 / 0.4660.294 / 0.294
3/41.0500.083 / 0.8840.113 / 0.8240.154 / 0.7420.218 / 0.6140.308 / 0.434
11.3150.109 / 1.0970.133 / 1.0490.179 / 0.9570.250 / 0.8150.358 / 0.599
1 1/41.6600.109 / 1.4420.140 / 1.3800.191 / 1.2780.250 / 1.1600.382 / 0.896
1 1/21.9000.109 / 1.6820.145 / 1.6100.200 / 1.5000.281 / 1.3380.400 / 1.100
22.3750.109 / 2.1570.154 / 2.0670.218 / 1.9390.344 / 1.6870.436 / 1.503
33.5000.120 / 3.2600.216 / 3.0680.300 / 2.9000.438 / 2.6240.600 / 2.300
44.5000.120 / 4.2600.237 / 4.0260.337 / 3.8260.531 / 3.4380.674 / 3.152
66.6250.134 / 6.3570.280 / 6.0650.432 / 5.7610.719 / 5.1870.864 / 4.897
88.6250.148 / 8.3290.322 / 7.9810.500 / 7.6250.906 / 6.8131.125 / 6.375
1010.7500.165 / 10.4200.365 / 10.0200.500 / 9.7501.250 / 8.2501.406 / 7.938
1212.7500.180 / 12.3900.375 / 12.0000.500 / 11.7501.406 / 9.9381.562 / 9.625

ASTM A335 P9 Chemical Composition

Element Composition (%)
Carbon (C) 0.05–0.15
Manganese (Mn) 0.30–0.60
Phosphorus (P) ≤ 0.025
Sulfur (S) ≤ 0.025
Silicon (Si) 0.50–1.00
Chromium (Cr) 8.00–10.00
Molybdenum (Mo) 0.90–1.10
Nickel (Ni) ≤ 0.40
Vanadium (V) ≤ 0.20

ASTM A335 P9 Mechanical Properties

Property Value
Tensile Strength (Min) 415 MPa (60,000 psi)
Yield Strength (Min) 205 MPa (30,000 psi)
Elongation (%) (Min) 30% (for standard gauge length)
Hardness (Max) 250 HB or 25 HRC

Manufacturing Process

The manufacturing process of ASTM A335 P9 seamless pipes involves several stages to ensure quality and reliability:

  1. Billet Selection: High-quality alloy steel billets are chosen as raw materials.
  2. Heating: Billets are heated in a furnace to achieve the required malleability.
  3. Piercing: A rotary piercing mill creates a hollow shell from the billet.
  4. Rolling: The hollow shell is rolled to achieve the desired dimensions and wall thickness.
  5. Heat Treatment: Pipes undergo heat treatment processes such as annealing, normalizing, or quenching and tempering to refine grain structure and enhance mechanical properties.
  6. Testing: Each pipe is subjected to rigorous quality control tests, including ultrasonic testing, hydrostatic testing, and dimensional inspections

Applications of ASTM A335 P9 Seamless Pipes

The versatility and durability of ASTM A335 P9 pipes make them a preferred choice across various industries. Key applications include:

  1. Power Generation: Used in boilers, heat exchangers, and superheaters due to their ability to withstand high temperatures and pressures.
  2. Oil and Gas: Utilized in refineries, pipelines, and processing units for their resistance to corrosive environments.
  3. Petrochemical: Employed in catalytic reformers, crackers, and reactors.
  4. Chemical Processing: Suitable for handling corrosive chemicals and high-pressure operations.
  5. Industrial Piping: Ideal for steam piping, process piping, and high-pressure services.

Advantages of ASTM A335 P9 Seamless Pipes

  1. High-Temperature Strength: Exceptional performance in high-temperature environments.
  2. Corrosion Resistance: Chromium and molybdenum provide enhanced resistance to oxidation and corrosion.
  3. Seamless Construction: Eliminates the risk of weak points, ensuring uniform strength.
  4. Versatility: Suitable for a wide range of applications in various industries.
  5. Longevity: Durable and reliable, reducing the need for frequent replacements.
  6. Ease of Fabrication: Can be welded, bent, and machined with precision.

Heat Treatment Methods

Heat treatment plays a crucial role in achieving the desired properties of ASTM A335 P9 pipes. Common methods include:

  1. Normalizing: Heating the pipe to a temperature above its critical range and then air cooling to refine grain structure.
  2. Annealing: Heating to a specific temperature and cooling slowly to improve ductility and reduce hardness.
  3. Quenching and Tempering: Rapid cooling followed by reheating to a lower temperature to achieve the desired combination of strength and toughness.

Testing and Quality Assurance

To assure the greatest quality, ASTM A335 P9 pipes go through thorough testing:

  1. Hydrostatic Test: Determines whether the pipe can tolerate internal pressure.
  2. Ultrasonic Test: Detects internal and surface flaws.
  3. Hardness Test: Verifies the hardness level within acceptable limits.
  4. Chemical Analysis: Confirms the composition meets ASTM standards.
  5. Mechanical Testing: Includes tensile, yield, and elongation tests.
  6. Dimensional Inspection: Checks compliance with dimensional tolerances.

Comparison with Other Grades

ASTM A335 P9 pipes are often compared with other grades in the ASTM A335 family, such as P11 and P22. Key differences include:

  • P9: Higher chromium content, offering superior oxidation resistance.
  • P11: Balanced chromium and molybdenum levels for moderate temperature and pressure.
  • P22: Higher molybdenum content for enhanced strength and corrosion resistance.

Each grade is selected based on specific application requirements.

Handling and Storage Guidelines

Proper handling and storage are crucial to maintaining the quality of ASTM A335 P9 pipes:

  1. Protection from Moisture: Store in a dry environment to prevent rust.
  2. Avoid Mechanical Damage: Use padded supports and avoid direct contact with sharp edges.
  3. Marking and Identification: Ensure proper labeling for traceability.
  4. Inspection: Regularly look for signs of corrosion or damage.

Environmental Considerations

The production and use of ASTM A335 P9 pipes align with environmental standards. These pipes are designed for energy efficiency and minimal environmental impact during operations. Additionally, they are recyclable, contributing to sustainable practices in industrial applications.

Conclusion

ASTM A335 P9 seamless alloy steel pipes are a benchmark in high-performance piping solutions. Their unparalleled combination of strength, corrosion resistance, and temperature endurance makes them indispensable in demanding industrial environments. By adhering to stringent quality standards and offering superior performance, ASTM A335 P9 pipes continue to set the standard for reliability and efficiency in critical applications.

Whether for power generation, petrochemical processing, or high-pressure pipelines, ASTM A335 P9 pipes are a trusted choice for engineers and industry professionals worldwide. Investing in these pipes ensures long-term performance, safety, and cost-effectiveness.
