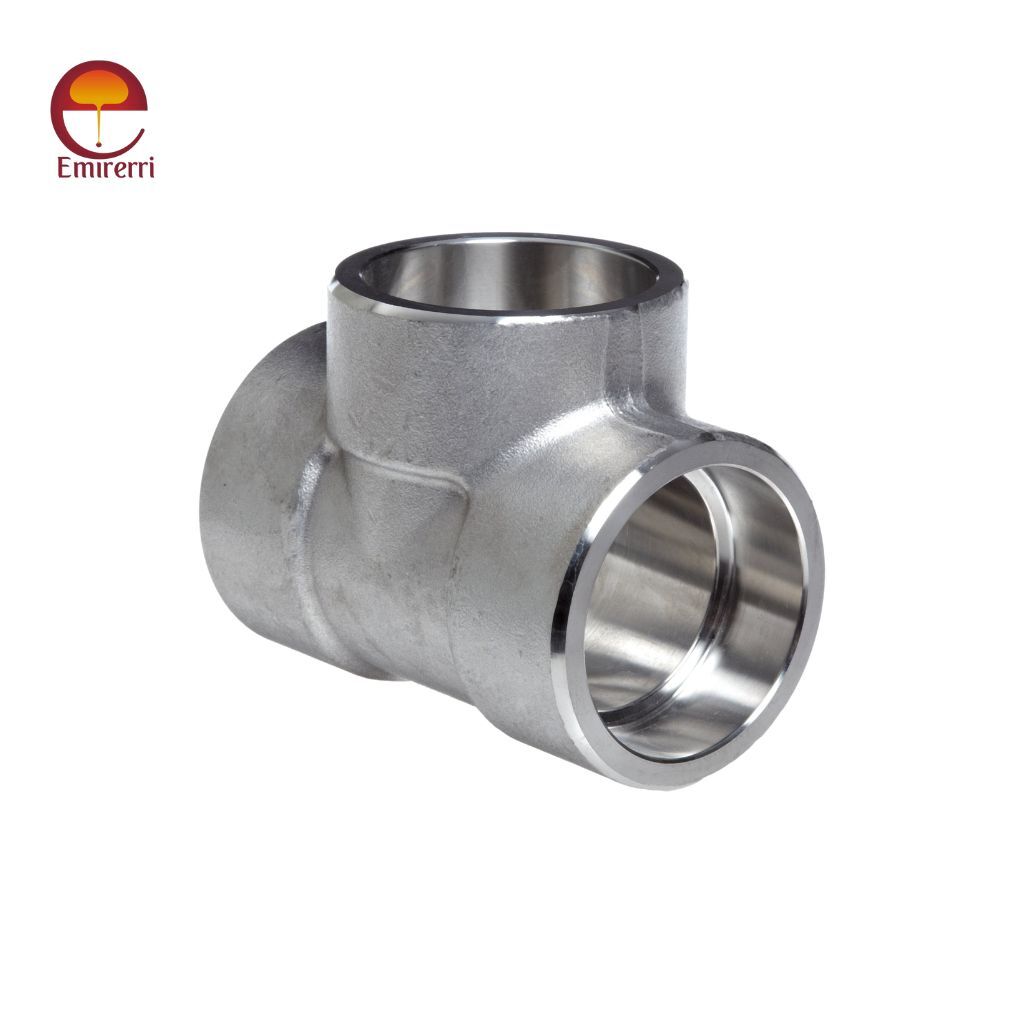

ASME B16.11 Socket Weld Tee
ASME B16.11 Socket Weld Tee is a crucial pipe fitting used in various industries for branching off a pipeline system. These fittings are engineered to meet the rigorous standards set by ASME (American Society of Mechanical Engineers), ensuring optimal performance, durability, and reliability in high-pressure applications. At Emirerri Steel, we pride ourselves on delivering premium quality Socket Weld Tees to industries worldwide.
What is a Socket Weld Tee?
A Socket Weld Tee is a pipe fitting designed with a socket or recessed area to accommodate the insertion of a pipe. This creates a strong, leak-proof joint when welded properly. The tee is used to branch off pipelines at a 90-degree angle, allowing for three connection points.
Socket Weld Tees are available in various materials, sizes, and pressure ratings, catering to the needs of industries like oil and gas, petrochemicals, power generation, and more.
Key Features of ASME B16.11 Socket Weld Tee
- Leak-proof Connections: The socket weld design ensures a secure and leak-proof joint, making it ideal for high-pressure applications.
- Strength and Durability: Manufactured to ASME B16.11 standards, these fittings are designed to withstand high pressure and temperature conditions.
- Corrosion Resistance: Available in a range of materials such as stainless steel, carbon steel, and alloy steel, Socket welders offer excellent resistance to corrosion and wear.
- Precision Manufacturing: The fittings are engineered with precise dimensions to ensure a perfect fit and easy installation.
- Versatility: Suitable for a wide range of industries and applications, including those requiring high performance and reliability.
Types of Socket Weld Tee
At Emirerri Steel, we offer a variety of ASME B16.11 Socket Weld Tees to meet diverse industrial requirements. The primary types include:
- Equal Tee (Straight Tee):
- Features three outlets of the same size.
- Commonly used to distribute fluid evenly in pipelines.
- Reducing Tee:
- Has one outlet with a smaller diameter than the other two.
- Ideal for reducing the flow or combining different pipe sizes.
Size (NPS) | Socket Bore Diameter (D) | Center-to-End (A) | Min. Wall Thickness (T) | Weight (Approx.) |
1/8″ | 10.3 mm (0.41 in) | 14 mm (0.55 in) | 2.41 mm (0.09 in) | 0.04 kg (0.09 lb) |
1/4″ | 13.7 mm (0.54 in) | 18 mm (0.71 in) | 3.02 mm (0.12 in) | 0.05 kg (0.11 lb) |
3/8″ | 17.1 mm (0.67 in) | 21 mm (0.83 in) | 3.20 mm (0.13 in) | 0.07 kg (0.15 lb) |
1/2″ | 21.3 mm (0.84 in) | 25 mm (0.98 in) | 3.73 mm (0.15 in) | 0.11 kg (0.24 lb) |
3/4″ | 26.7 mm (1.05 in) | 29 mm (1.14 in) | 3.91 mm (0.15 in) | 0.17 kg (0.37 lb) |
1″ | 33.4 mm (1.32 in) | 38 mm (1.50 in) | 4.55 mm (0.18 in) | 0.27 kg (0.60 lb) |
1 1/4″ | 42.2 mm (1.66 in) | 48 mm (1.89 in) | 4.85 mm (0.19 in) | 0.40 kg (0.88 lb) |
1 1/2″ | 48.3 mm (1.90 in) | 57 mm (2.24 in) | 5.08 mm (0.20 in) | 0.58 kg (1.28 lb) |
2″ | 60.3 mm (2.37 in) | 64 mm (2.52 in) | 5.54 mm (0.22 in) | 0.88 kg (1.94 lb) |
2 1/2″ | 73.0 mm (2.87 in) | 76 mm (2.99 in) | 7.01 mm (0.28 in) | 1.43 kg (3.15 lb) |
3″ | 88.9 mm (3.50 in) | 86 mm (3.39 in) | 7.62 mm (0.30 in) | 2.27 kg (5.00 lb) |
4″ | 114.3 mm (4.50 in) | 105 mm (4.13 in) | 8.64 mm (0.34 in) | 4.31 kg (9.50 lb) |
ASME B16.11 Socket Weld Tee Weight
Size (NPS) | Approximate Weight (kg) | Approximate Weight (lb) |
1/8″ | 0.04 kg | 0.09 lb |
1/4″ | 0.05 kg | 0.11 lb |
3/8″ | 0.07 kg | 0.15 lb |
1/2″ | 0.11 kg | 0.24 lb |
3/4″ | 0.17 kg | 0.37 lb |
1″ | 0.27 kg | 0.60 lb |
1 1/4″ | 0.40 kg | 0.88 lb |
1 1/2″ | 0.58 kg | 1.28 lb |
2″ | 0.88 kg | 1.94 lb |
2 1/2″ | 1.43 kg | 3.15 lb |
3″ | 2.27 kg | 5.00 lb |
4″ | 4.31 kg | 9.50 lb |
Materials Used in ASME B16.11 Socket Weld Tee
Socket Weld Tees are manufactured from various materials to ensure compatibility with different applications. Some common materials include:
- Stainless Steel
- Grades: 304, 304L, 316, 316L
- Features: High resistance to corrosion, durability, and excellent performance in extreme environments.
- Carbon Steel
- Grades: ASTM A105, A106
- Features: High strength and cost-effectiveness for standard applications.
- Alloy Steel
- Grades: ASTM A182 F5, F9, F11, F22
- Features: Superior strength and heat resistance for high-temperature applications.
- Duplex & Super Duplex Steel
- Grades: UNS S31803, S32750
- Features: Exceptional corrosion resistance and high mechanical strength.
- Nickel Alloys
- Grades: Inconel, Monel, Hastelloy
- Features: Outstanding performance in highly corrosive environments.
Applications of ASME B16.11 Socket Weld Tee
Socket Weld Tees are widely used in various industries due to their strength, reliability, and ease of installation. Common applications include:
- Oil and Gas:
- Used in pipes that carry refined goods, natural gas, and crude oil.
- Petrochemical:
- Essential in chemical processing plants for transferring hazardous chemicals.
- Power Generation:
- Utilized in thermal, nuclear, and renewable energy plants for high-pressure steam and water systems.
- Pharmaceutical:
- Ensures sterile and leak-proof connections in critical applications.
- Marine and Shipbuilding:
- Provides durable solutions for piping systems in ships and offshore platforms.
- Water Treatment:
- Used in desalination plants and water filtration systems.
Advantages of ASME B16.11 Socket Weld Tee
- Ease of Installation:
- The socket weld design allows easy alignment and welding, reducing installation time and effort.
- Superior Strength:
- The fillet weld around the socket provides added strength to the joint, ensuring longevity and reliability.
- Cost-Effective:
- Reduces the need for additional fittings or complex welding, saving time and costs.
- Flexibility:
- Available in a wide range of materials, sizes, and pressure classes to suit diverse requirements.
- Compliance with Standards:
- Manufactured as per ASME B16.11, ensuring adherence to international quality and safety norms.
Dimensions and Pressure Ratings
Socket Weld Tees are manufactured in a range of dimensions and pressure ratings to cater to various industrial needs.
- Pressure Classes:
- Available in Class 2000, 3000, 6000, and 9000, depending on the operating conditions.
- Dimensions:
- Sizes range from ½ inch to 4 inches.
- Precise dimensions are specified in the ASME B16.11 standard, ensuring uniformity and compatibility.
Quality Assurance at Emirerri Steel
At Emirerri Steel, quality is our top priority. Our ASME B16.11 Socket Weld Tees undergo rigorous quality checks to ensure they meet the highest standards. Key aspects of our quality assurance process include:
- Material Testing:
- Chemical and mechanical testing to verify material properties.
- Dimensional Accuracy:
- Inspection to ensure precise dimensions and compatibility with other components.
- Non-Destructive Testing (NDT):
- Techniques like ultrasonic testing, radiography, and magnetic particle inspection to detect flaws.
- Hydrostatic Testing:
- Pressure testing to ensure the integrity of the fitting under operational conditions.
- Certification:
- Products are supplied with material test certificates (MTC) and compliance certificates.
Why Choose Emirerri Steel for ASME B16.11 Socket Weld Tees?
- Global Supplier:
- Trusted by industries worldwide for delivering premium-quality products.
- Comprehensive Range:
- A wide selection of materials, sizes, and pressure ratings to meet diverse needs.
- Customization:
- Ability to provide custom-designed solutions based on specific client requirements.
- Competitive Pricing:
- Cost-effective solutions without compromising on quality.
- Timely Delivery:
- Efficient logistics and supply chain management to ensure on-time delivery.
- Technical Expertise:
- A team of experienced professionals to provide technical support and guidance.
Packaging and Delivery
We use industry-standard packaging methods to ensure the safe and damage-free delivery of our Socket Weld Tees. Features of our packaging include:
- Individual wrapping to prevent scratches and dents.
- Use of wooden crates, pallets, or boxes for bulk shipments.
- Proper labeling with product details and handling instructions.
Application
- Oil & Gas
- Petrochemical
- Power Generation
- Water Treatment
- Pharmaceutical
- Marine & Shipbuilding
- Construction
Conclusion
The ASME B16.11 Socket Weld Tee is an indispensable fitting for branching pipelines in high-pressure and high-temperature applications. At Emirerri Steel, we are committed to providing top-quality Socket wedges that meet the diverse requirements of our global clientele.
Contact Emirerri Steel today for more information or to request a quote. Let us be your trusted partner for all your piping needs.
